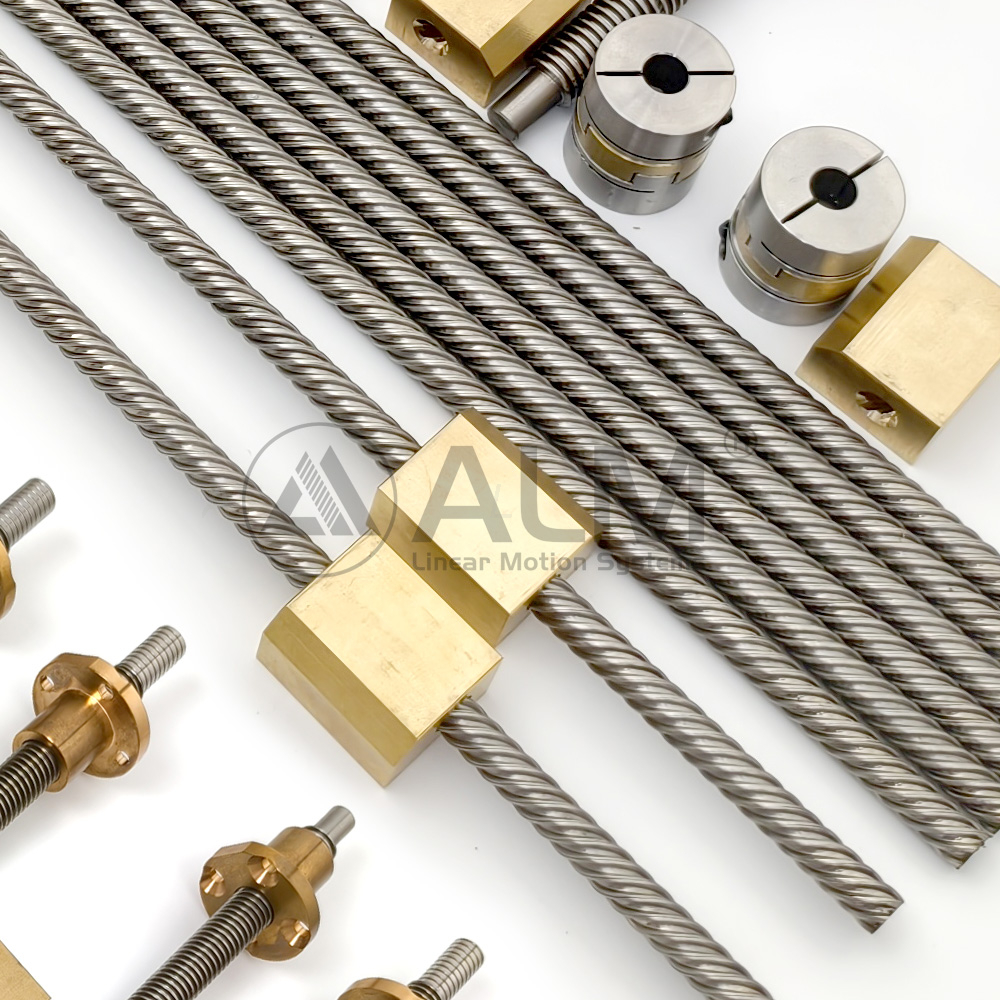

T8 Diameter 8mm Lead 0.5mm~24mm High Accuracy Lead Screw with Nut
This lead screw diameter is 8mm,available lead ranges from 0.5mm to 24mm.The highest accuracy grade of Tr8 lead screw is 0.01mm/100mm.T8 lead screw and nut can be customized according to your requirement.
| Diamter | 8mm |
| Lead | 0.5mm~24mm |
| Length | According to your needs |
| Shaft end machining | Processing according to your requirements |
| Nut shape and dimension | According to your needs |
| Thread Direction | Right hand thread/left hand thread/right and left hand thread |
| Available screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated,molybdenum disulfide. |
| Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
| Clearance | 7e,higher precision is available upon request |
| Lead accuracy | Can be 0.02mm/100mm |
Contact our sales staff to customize more lead screw details.
T8 Diameter 8mm Lead 0.5mm~24mm High Accuracy Lead Screw with Nut
This lead screw diameter is 8mm,available lead ranges from 0.5mm to 24mm.The highest accuracy grade of Tr8 lead screw is 0.01mm/100mm.T8 lead screw and nut can be customized according to your requirement.
| Diamter | 8mm |
| Lead | 0.5mm~24mm |
| Length | According to your needs |
| Shaft end machining | Processing according to your requirements |
| Nut shape and dimension | According to your needs |
| Thread Direction | Right hand thread/left hand thread/right and left hand thread |
| Available screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated,molybdenum disulfide. |
| Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
| Clearance | 7e,higher precision is available upon request |
| Lead accuracy | Can be 0.02mm/100mm |
Contact our sales staff to customize more lead screw details.
