High Rigidity Solid Ball Spindle Spline SLT Series

customized ball spline is available upon drawing
MOQ:1 pc
  • SLT ball spline

  • ALM

  • 8479909090

The design of ALM Ball spline is to utilize the friction through the contact of steel balls within in the Spline Nut and the grooves on the Spline Shaft. With ALM's unique 40° angular contact design which enables the Ball spline delivers high sensitivity and extreme high load carrying capacity. The concept is optimal for the application involve with high speed, vibration, impacts of loading and precise positioning requirements. Also when the Ball spline is used to function as linear bushing, the Ball spline provides ten times loading capacity than the linear bush on the like model but with a compact profile. Namely,Durability and reliablility is the reason to choose ALM Ball spline in your application.

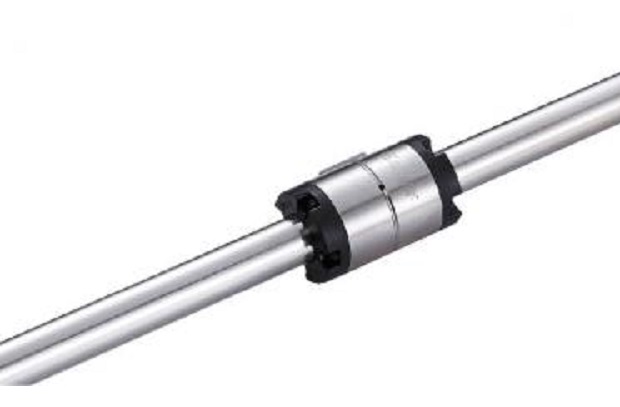

High Rigidity Solid Ball Spindle Spline SLT Series (2)

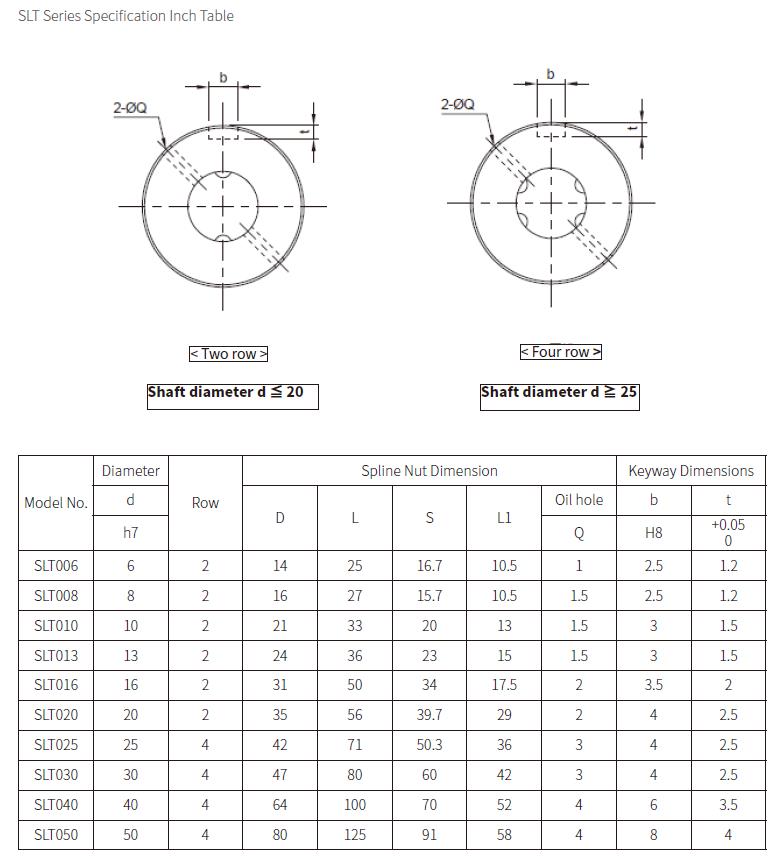

TBI ball spline catalog

SLT ball spline specification

Features of ALM ball spline

High Load-Carrying Capacity

High Sensitivity

High Rigidity

Zero Angular Clearance / Backlash

Mount-Simple on Design

Typical Application:

Industrial machinery, Automation machinery, Semi-conductor industries.
