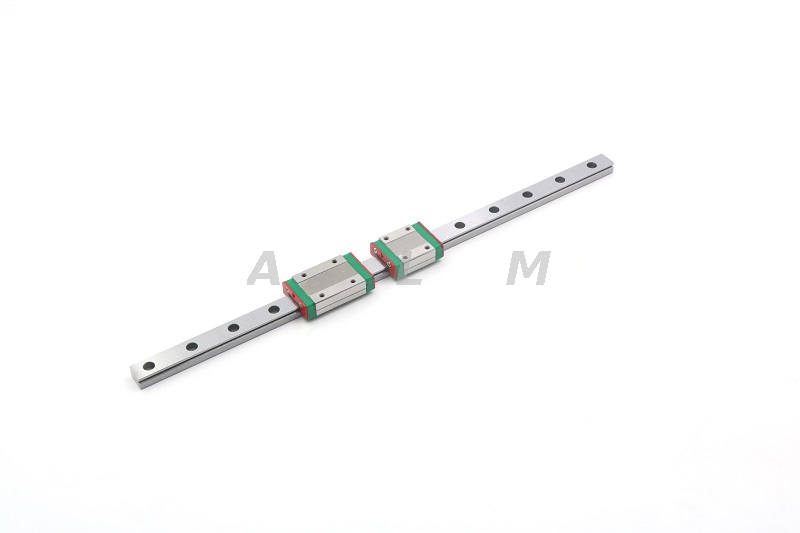

Miniature Linear Gudies MGN12H for Laboratory Instrument

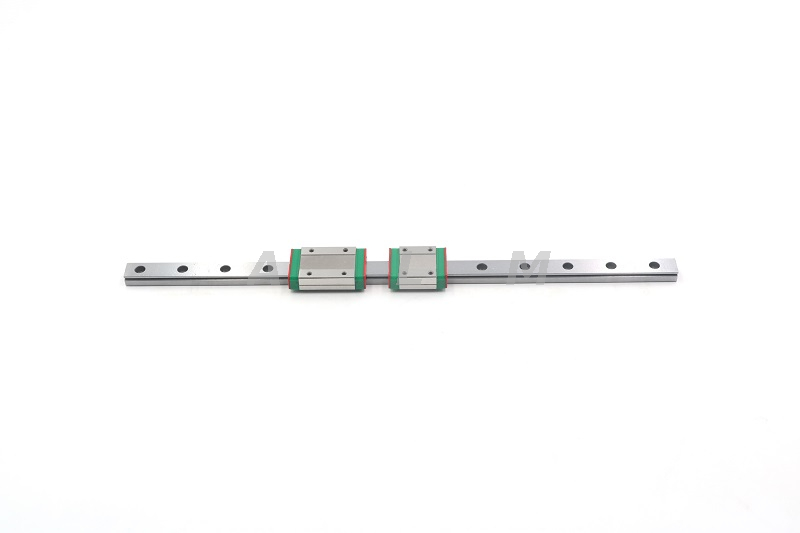

Miniature Linear Gudies MGN12H for Laboratory Instrument

High quality same dimension to replace original HIWIN linear guideways

MG Series - Miniature Linear Guideway

Features of MGN Series

1.Tiny and light weight, suitable for miniature equipment.

2.All materials for block and rail are in special grade of stainless steel which including steel ball, ball retainer for anti-corrosion purpose.

3.Gothic arch contact design can sustain the load from all directions and offer high rigidity and high accuracy.

4.Steel balls will be held by miniature retainer to avoid the balls from falling out even when the blocks are removed form the rail installation.

5.Interchangeable types are available in certain precision grades.

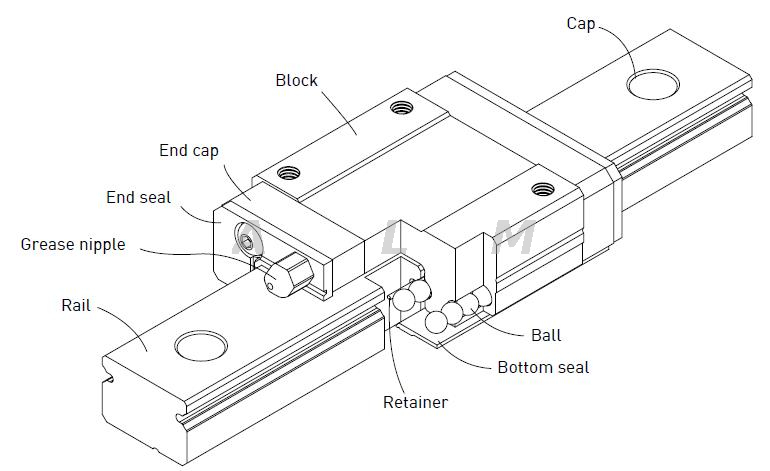

Construction of MGN Series

Rolling circulation system: Block, rail, end cap and retainer

Lubrication system: The grease nipple is available for MGN15, grease gun can be used for lubricanting.

Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)

ALM linear guide cad download:

Linear Guideway catalog-ALM.pdf

https://www.autolinearmotion.com/download.html

Need more files and catalog?

Contact us: sales@autolinearmotion.com
