| Quantity: | |
|---|---|
3/8''-40
ALM
8479909090

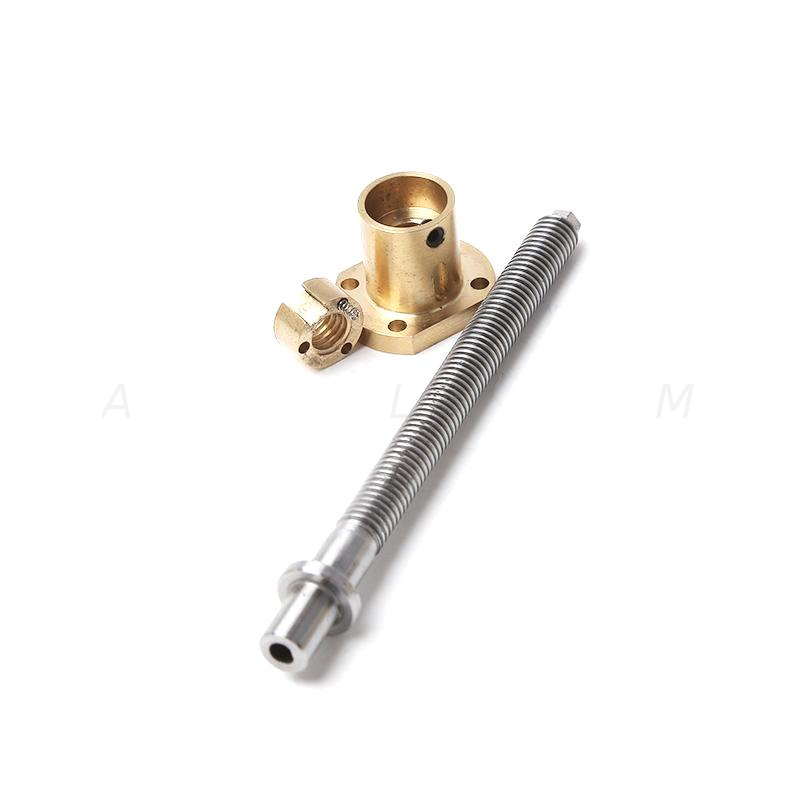

ACME Thread Lead Screw 3/8''-40
3/8"-40 ACME thread lead screw diameter is 3/8''mm,TPI is 40mm.3/8"-40 ACME lead screws and nuts are customized according to your needs.
| Diamter | 3/8'' |
| TPI | 40 |
| Length | According to your needs |
| Shaft end machining | Processing according to your requirements |
| Nut shape and dimension | According to your needs |
| Thread Direction | Right hand thread/left hand thread/right and left hand thread |
| Available screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated,molybdenum disulfide. |
| Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
| Clearance | 7e,higher precision is available upon request |
ACME Thread Lead Screw 3/8''-40
3/8"-40 ACME thread lead screw diameter is 3/8''mm,TPI is 40mm.3/8"-40 ACME lead screws and nuts are customized according to your needs.
| Diamter | 3/8'' |
| TPI | 40 |
| Length | According to your needs |
| Shaft end machining | Processing according to your requirements |
| Nut shape and dimension | According to your needs |
| Thread Direction | Right hand thread/left hand thread/right and left hand thread |
| Available screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated,molybdenum disulfide. |
| Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
| Clearance | 7e,higher precision is available upon request |
