| Quantity: | |
|---|---|
MKS2001A
ALM
8479909090

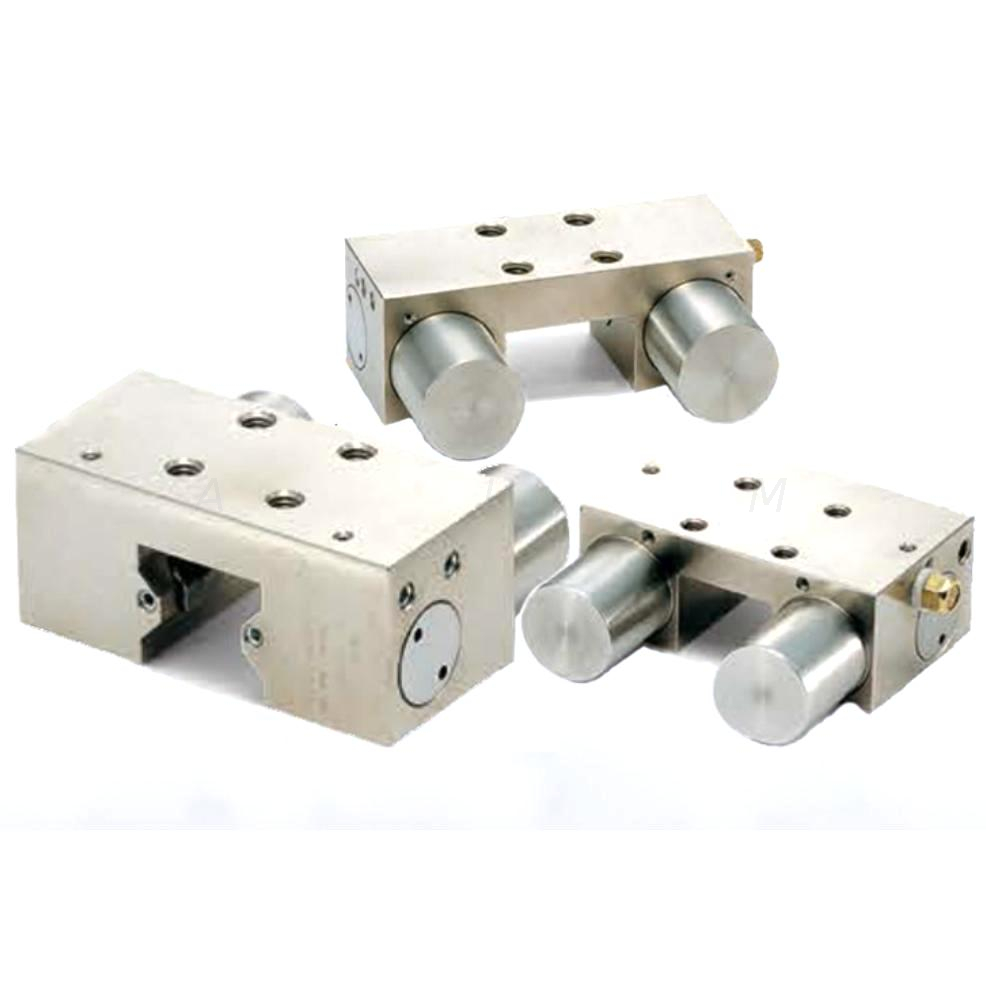

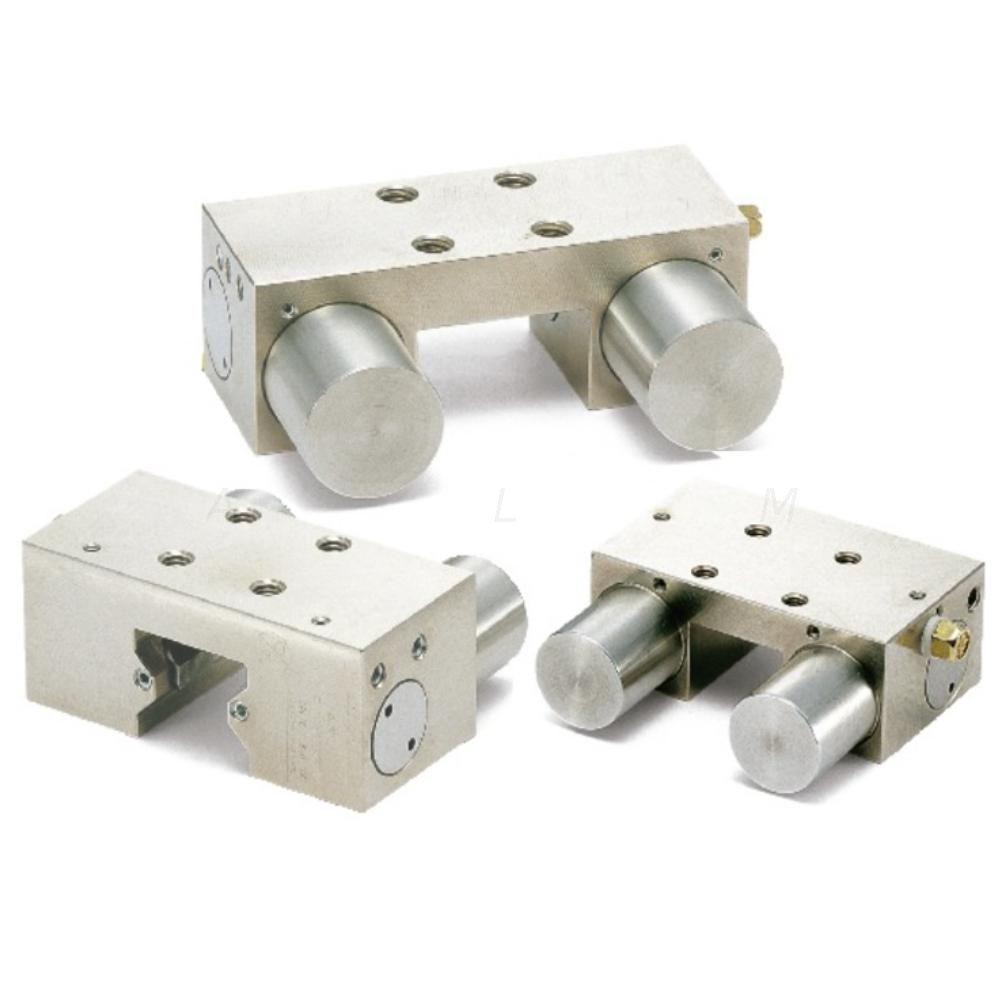

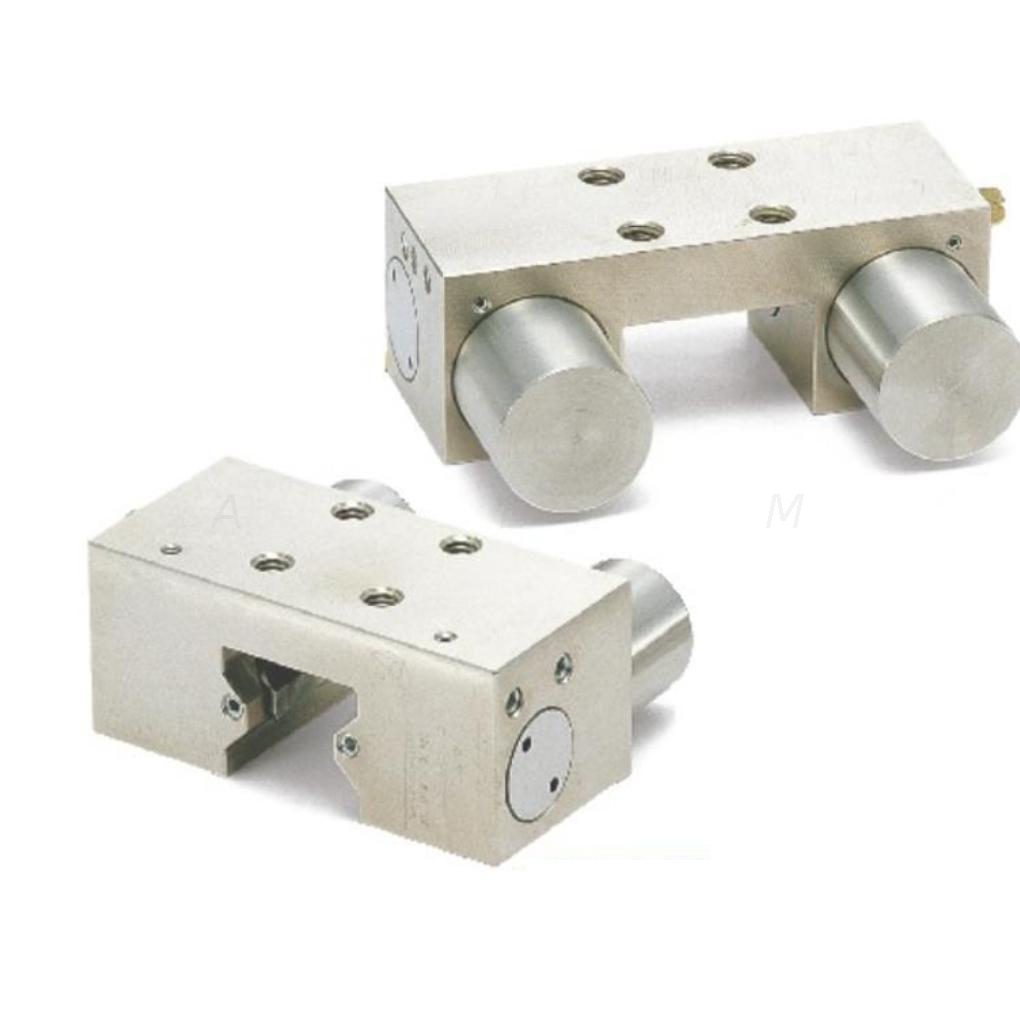

Air Control MKS2001A Pneumatic Clamping Element HGR20 Linear Guide

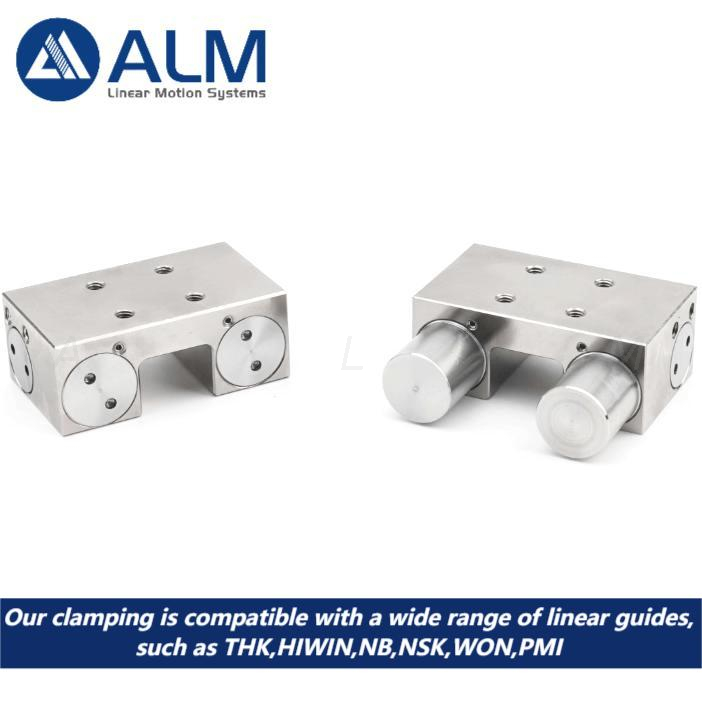

Pneumatic MKS2001A linear guide clamping is a device for position locking or emergency braking by directly clamping shaft parts.The shaft parts that can be clamped include round shaft,square shaft,linear guide rail,etc.
MKS2001A Pneumatic Clamping Element Information
| Material | 20Crmo+Nickel Plating |
Range of application | Suitable for most linear guides on the market |
| Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
| Guide rail series | 20mm |
Clamping force | 600N |
| Packing | Carton+Plastic bag + Wooden box or according to customers' demands |
| Type | Pneumatic |
| Working temperature | 0℃～50℃ |
ALM's clamping element can replace zimmer's clamping element
| ALM's model | Zimmer's model | Suitable for HIWIN rail |
| AKS15B | MKS1501A | HGH15/HGW15/EGH15/EGW15 |
| AKS20B | MKS2001A | HGH20/HGW20/EGH20/EGW20 |
| AKS25B | MKS2501A | HGH25/HGW25/EGH25/EGW25 |
| AKS30B | MKS3001A | HGH30/HGW30/EGH30/EGW30 |
| AKS35B | MKS3501A | HGH35/HGW35/EGH35/EGW35 |
| AKS45B | MKS4501A | HGH45/HGW45/EGH45/EGW45 |
| AKS55B | MKS5501A | HGH55/HGW55/EGH55/EGW55 |
| AKS65B | MKS6501A | HGH65/HGW65/EGH65/EGW65 |

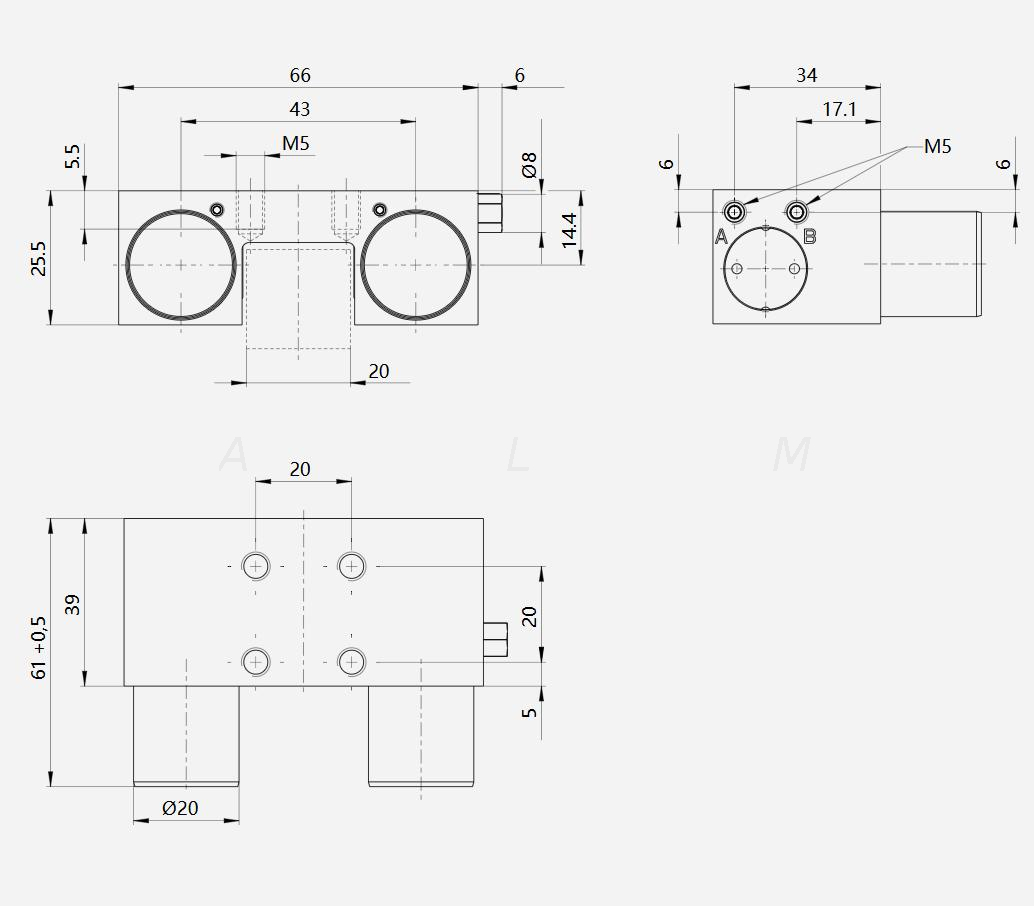

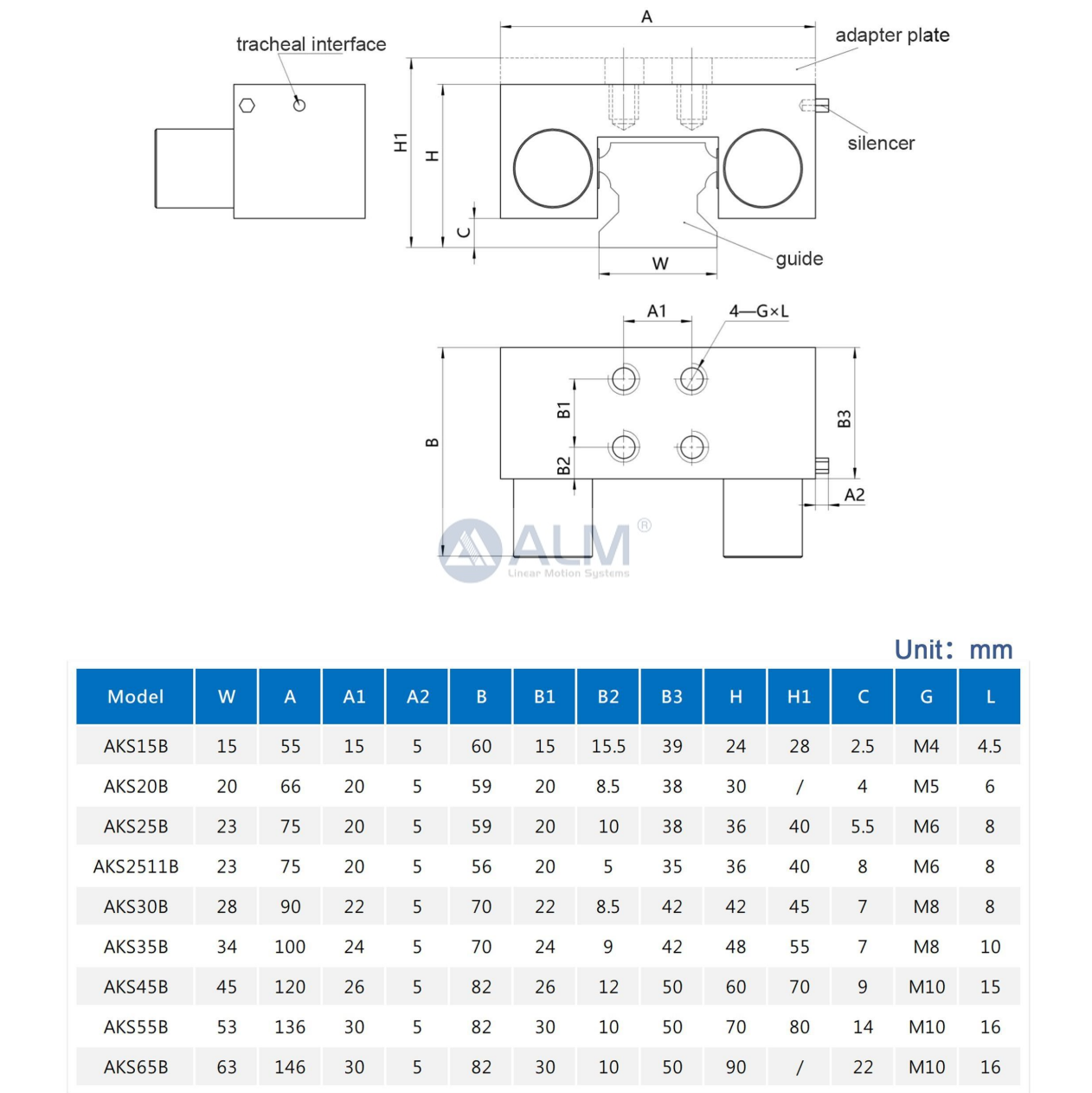

Linear guide clamping dimension
