Ball Screw Support Unit BK BF FK FF EK EF End Support

Lead time:1~3days
MOQ:1 piece
Material: carbon steel

  • ALM

  • 8479909090

The end support in a ball screw support unit serves as a critical element in maintaining the alignment and stability of the ball screw assembly.It is designed to bear the axial load generated during the operation of the ball screw.By providing the necessary support, the end support prevents any deflection or misalignment, ensuring smooth and accurate linear motion.

●ALM End Support Basic Information


   Carbon steel

Quality standard
ISO9001:2015,CE certificate,RoHS and reach compliance

High precision,High rigidity
Carton+Plastic bag + Wooden box or according to customers' demands

●ALM End Support Details Show

support unitBall Screw End supportEnd supports

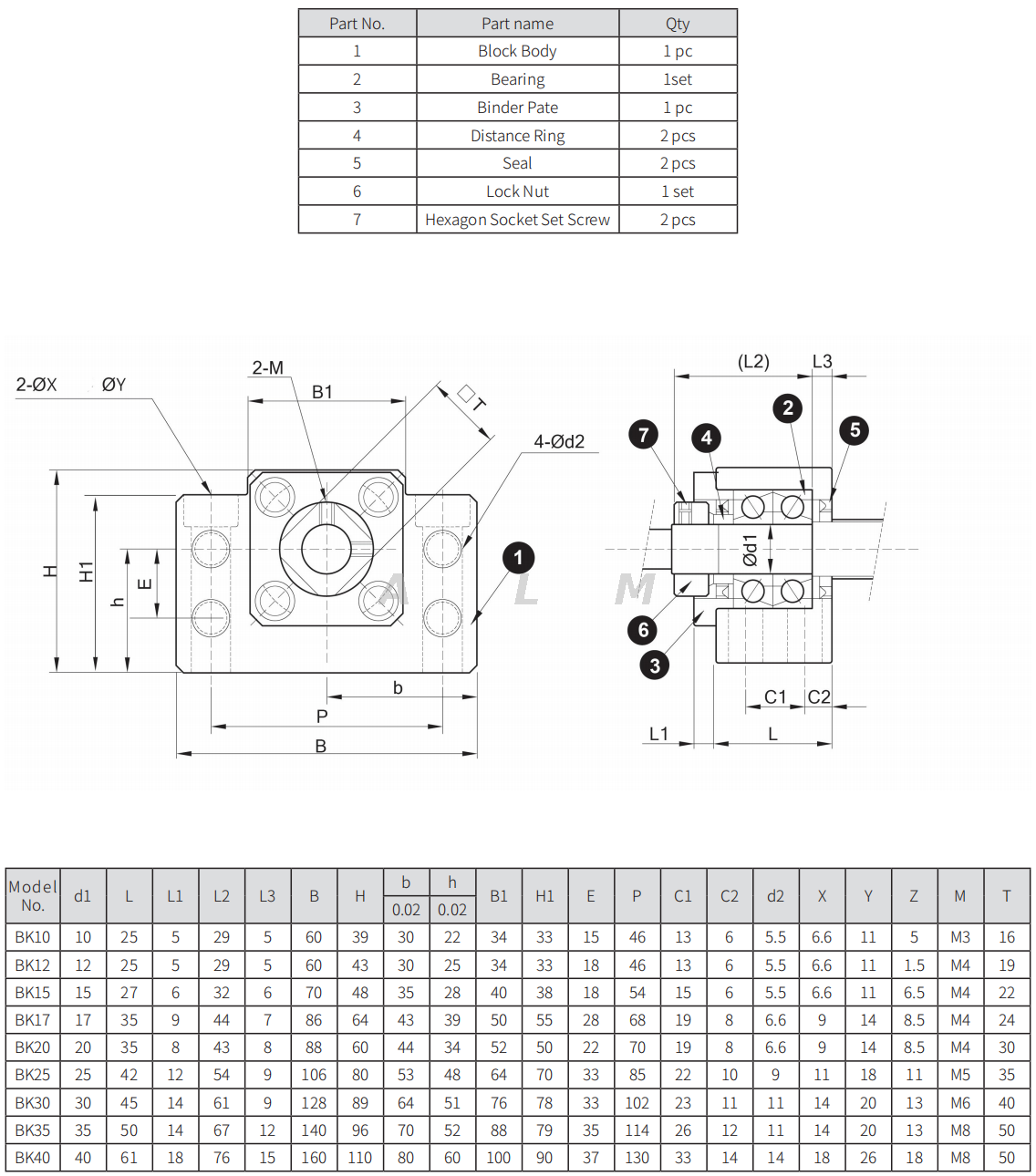

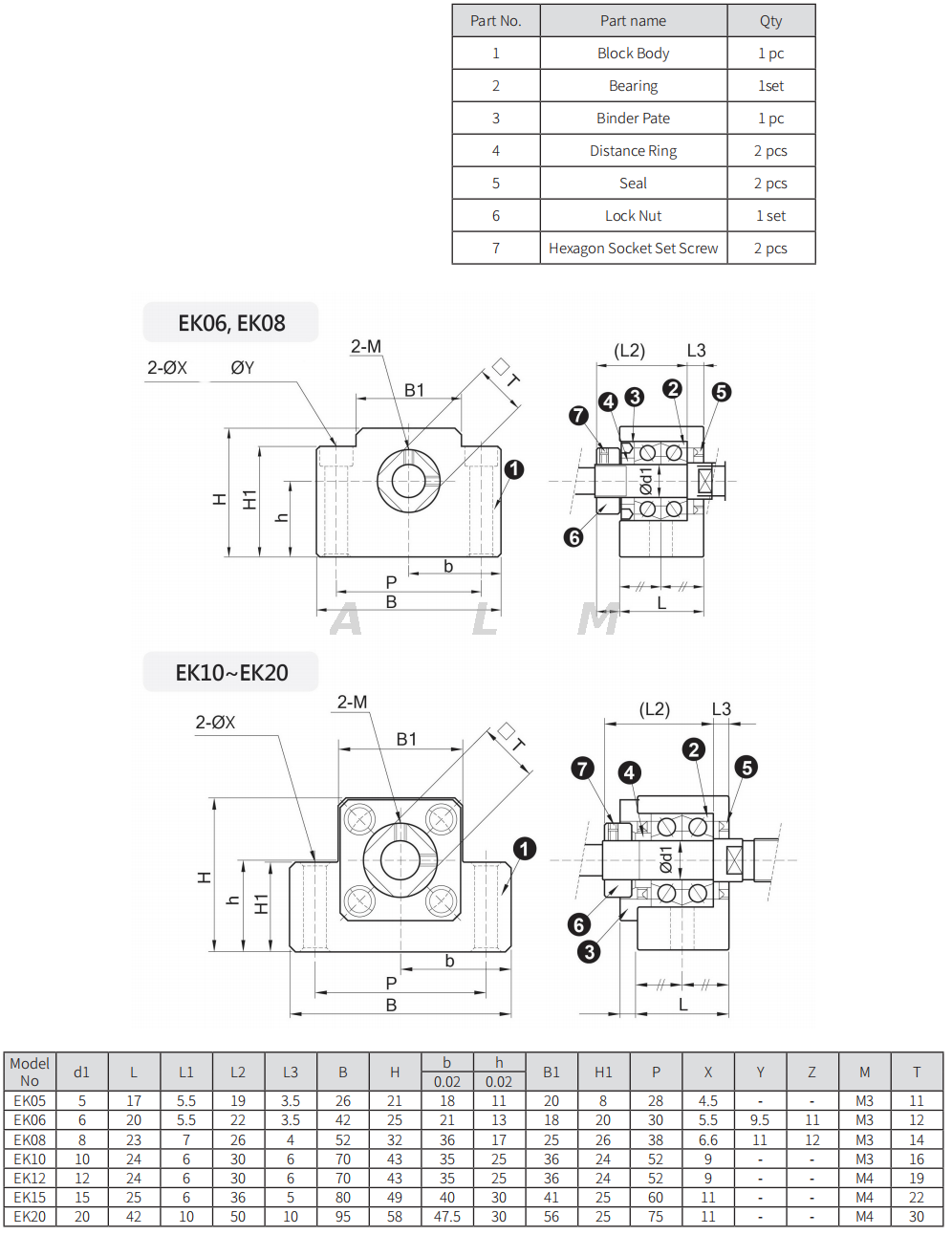

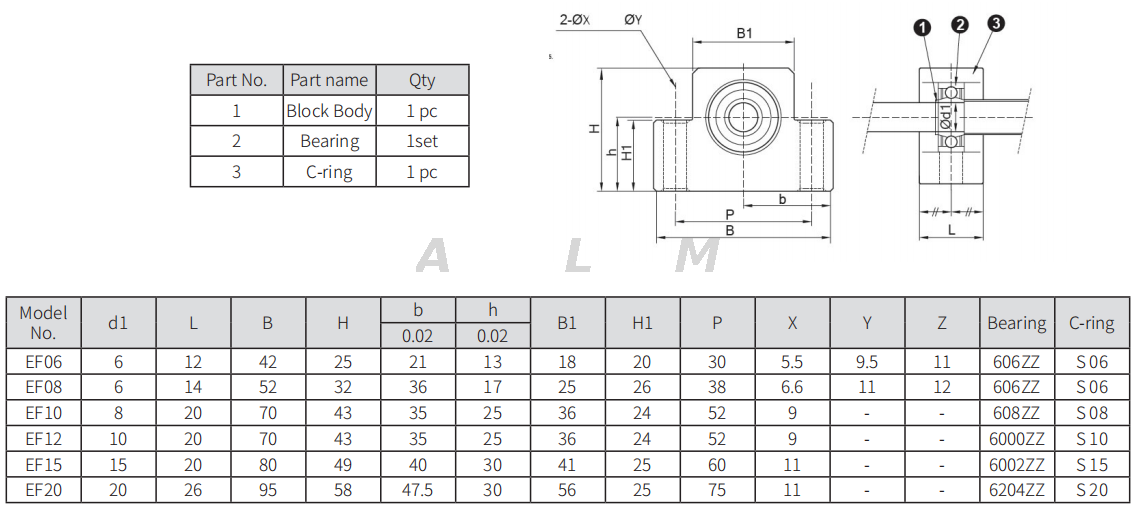

End Support Dimension

BF end supportEF end supportFF end supportBk end supportEK end support

Ball Screw End Support Advantages

Enhanced Precision:

One of the primary advantages of a ball screw support unit end support is its ability to enhance precision in motion control systems. The end support minimizes any axial play or backlash that may occur, resulting in precise positioning and improved repeatability. This level of precision is particularly crucial in applications where accuracy is paramount, such as CNC machines, robotic systems, and high-precision manufacturing equipment.


Increased Efficiency:

Efficiency is another significant benefit offered by a ball screw support unit end support. By eliminating any axial play or backlash, the end support ensures that the ball screw assembly operates with minimal friction and resistance. This reduction in friction leads to improved energy efficiency, reduced heat generation, and prolonged component life. As a result, motion control systems equipped with a ball screw support unit end support can achieve higher speeds, increased productivity, and lower operating costs.


Alignment and Stability:

Maintaining proper alignment and stability of the ball screw assembly is crucial for optimal performance. The end support plays a vital role in this regard by securely holding the ball screw in place and preventing any lateral or axial movement. This stability ensures that the ball screw operates within its intended parameters, minimizing wear and tear, and extending the overall lifespan of the system.
