CNC Parts 12mm 16mm Diameter SFU1204 SFU1604 High Rigidity Ball Screw

Lead time:10~30
MOQ:1 piece
Ball screw material: bearing steel
  • SFU1204 SFU1604

  • ALM

  • 8479909090

12mm and 16mm diameter SFU1204 and SFU1604 ball screws are commonly used in industrial applications.Custom end machining allows the modification of the ends of the ball screw to fit specific mounting or connection requirements.This can include adding keyways,flats,or threads to the ends of the ball screw.Our ball screws are known for high rigidity and smooth operation,making them ideal for high precision applications.

ALM Ball Screw Basic Information

 Material  Gcr15(HRC60~62),9Cr18(HRC55~58)
Axial play 0~0.005mm(Can be zero)
Preload P0,P1,P2,P3,P4
Efficiency >90%
 Accuracy grade  C1,C3,C5
Features Clean and smooth,excellent surface finsh
Certificates ISO9001:2015,CE certificate,RoHS and reach compliance

1 piece

 Lead time

10~30 days.


Carton+Plastic bag + Wooden box or according to customers' demands

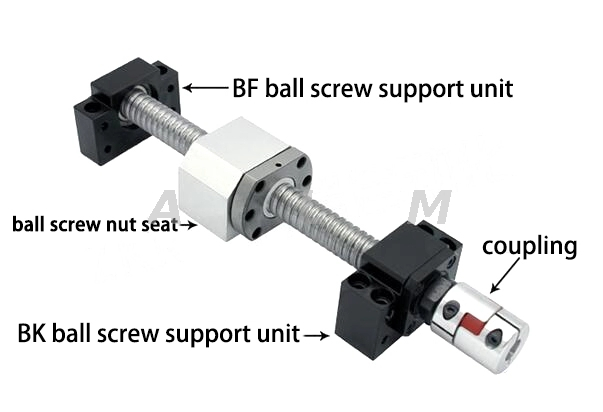

 Mating parts

Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available

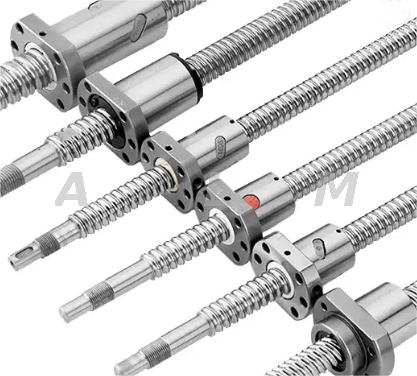

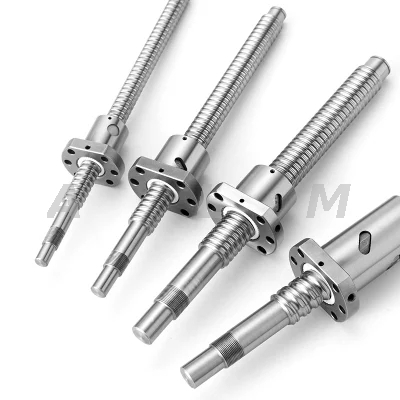

●ALM Ball Screw Details Show

ball screw SFU1204 SFU1604

●ALM Ball Screw Video Show

SFU1204 SFU1604 Ball Screw Dimension

We support a variety of shaft end machining and ballnut customization.Refer to the catalog below for more TBI standard model numbers.ALM ball screw- replace TBI C3 C5 C7 6M.pdf

SFU ball screw sizes

Ball Screw Maintenance Method

1.Keep the ball screw clean and free of debris

One of the most important maintenance tasks for ball screws is to keep them clean and free of debris. Dirt, dust, and other contaminants can cause premature wear and tear on the ball screw, leading to reduced performance and eventual failure. Regular cleaning with a soft cloth or brush can help to remove any dirt or debris that may have accumulated on the ball screw.


2.Lubricate the ball screw regularly

Another critical maintenance task for ball screws is to lubricate them regularly. Lubrication helps to reduce friction and wear on the ball screw, which can extend its lifespan and improve its performance. The type of lubricant used will depend on the specific application and the manufacturer's recommendations.


3.Check for wear and tear

Regular inspection of the ball screw is essential to identify any signs of wear and tear. If any damage is detected, it is crucial to address it promptly to prevent further damage to the ball screw or other components of the machine. Signs of wear and tear may include excessive noise, vibration, or reduced performance.


4.Replace worn or damaged parts

If any parts of the ball screw are found to be worn or damaged during inspection, they should be replaced immediately. Failure to replace worn or damaged parts can lead to further damage to the ball screw or other components of the machine, resulting in costly repairs or even machine downtime.


5.Follow manufacturer's recommendations

Finally,it is essential to follow the manufacturer's recommendations for maintenance and care of the ball screw. This may include specific lubrication schedules, cleaning procedures, and inspection intervals.Following these recommendations can help to ensure the longevity and reliability of the ball screw and the machine it is used in.
