Tr5x4
ALM
8483900090

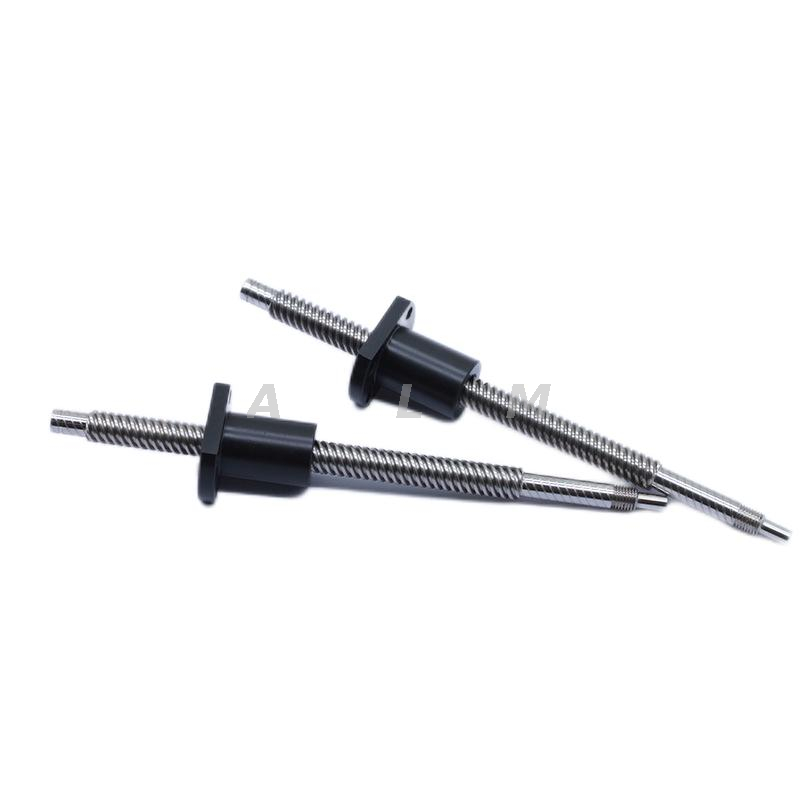

Tr5x4 trapezoidal screw is a miniature screw.The diameter of the trapezoidal Lead Screw is 5mm.The trapezoidal lead screw lead is 4mm.Tr5x4 trapezoidal lead screw pitch is 1mm.Tr5x4 trapezoidal lead screw with POM nut can self-lubricate,Tr5x4 trapezoidal lead screw is affordable.ALM lead screws are exported to 72 countries,deeply trusted by foreign customers.
Product name | Dia 5mm Pitch 1mm Tr5x4 Miniature Trapezoidal Lead Screw with POM Nut |
Lead screw model | Diameter 5mm,Lead 4mm,Pitch 1mm |
Tr5x4 Lead screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
T5 Lead nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEK,nylon,POK,Stainless steel,1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
5x4 Lead screw quality standard | ISO2901-4,DIN103 |
5mm Lead screw clearance | 7e,higher precision is available upon request |
Lead Screw Parameter |
A broad range of lead nuts are available,other nut type or size can be made upon drawing
When selecting the right nut for an application,there are a few things to keep in mind.Bronze nuts provide superior service at high working loads.They should be well lubricated with a good quality,Extreme Pressure(EP)grease compatible with the operating environment.Plastic nuts can be used without lubrication and are popular for low load applications.
Other ready lead screw models are available
Our Advantages |
Free service | Performance testing |
Selection of auxiliary | |
Technical solution | |
Please contact the salesman for details |
Custom service | Stainless steel and other customized materials |
Surface treatment | |
Custom lead nut and shaft end machining | |
Please contact the salesman for details |
Lead Screw Applications |
Lead screws are commonly used in instrument-level applications that require smooth,precise,clean,and maintenance-free operation.The nut material is usually made of an internally lubricated polymer.Some examples are laboratory and life science equipment,such as DNA sampling,scanning,and fluid handling equipment.Other applications include engraving,rapid prototyping,inspection and data storage.The lead screw can also be used for heavy lifting applications when used in conjunction with a metal(usually bronze)nut.The common application industry of the lead screw are shown in the figure below.
Lead Screw Thread Types |
T ISO Trapezoidal Thread Din103
For transmission and position adjustment,widelyused in the mechanical industry.
H High-helix Screws
A high-helix lead screw,speedy multi-start lead screw,or steep lead screw features a high pitch that is used to transform a smaller radial movement into a large axial movement.
M ISO Metric Thread (60°)
The most common form of thread used for fastening and precision transmission.
A ACME Thread (29°)
Inch threads can also be used for fastening connections,but not for high accuracy.
R Knuckle Thread
With the same arc thread as ball screw, the transmission is smoother.
G Gothic thread
Gothic double arc thread,offering the advantages of ball screw,is similar a new kind of lead screw.
X Self-reversing thread
A screw that makes the slide block reciprocate without changing the rotation direction of the spindle.
Tr5x4 trapezoidal screw is a miniature screw.The diameter of the trapezoidal Lead Screw is 5mm.The trapezoidal lead screw lead is 4mm.Tr5x4 trapezoidal lead screw pitch is 1mm.Tr5x4 trapezoidal lead screw with POM nut can self-lubricate,Tr5x4 trapezoidal lead screw is affordable.ALM lead screws are exported to 72 countries,deeply trusted by foreign customers.
Product name | Dia 5mm Pitch 1mm Tr5x4 Miniature Trapezoidal Lead Screw with POM Nut |
Lead screw model | Diameter 5mm,Lead 4mm,Pitch 1mm |
Tr5x4 Lead screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
T5 Lead nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEK,nylon,POK,Stainless steel,1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
5x4 Lead screw quality standard | ISO2901-4,DIN103 |
5mm Lead screw clearance | 7e,higher precision is available upon request |
Lead Screw Parameter |
A broad range of lead nuts are available,other nut type or size can be made upon drawing
When selecting the right nut for an application,there are a few things to keep in mind.Bronze nuts provide superior service at high working loads.They should be well lubricated with a good quality,Extreme Pressure(EP)grease compatible with the operating environment.Plastic nuts can be used without lubrication and are popular for low load applications.
Other ready lead screw models are available
Our Advantages |
Free service | Performance testing |
Selection of auxiliary | |
Technical solution | |
Please contact the salesman for details |
Custom service | Stainless steel and other customized materials |
Surface treatment | |
Custom lead nut and shaft end machining | |
Please contact the salesman for details |
Lead Screw Applications |
Lead screws are commonly used in instrument-level applications that require smooth,precise,clean,and maintenance-free operation.The nut material is usually made of an internally lubricated polymer.Some examples are laboratory and life science equipment,such as DNA sampling,scanning,and fluid handling equipment.Other applications include engraving,rapid prototyping,inspection and data storage.The lead screw can also be used for heavy lifting applications when used in conjunction with a metal(usually bronze)nut.The common application industry of the lead screw are shown in the figure below.
Lead Screw Thread Types |
T ISO Trapezoidal Thread Din103
For transmission and position adjustment,widelyused in the mechanical industry.
H High-helix Screws
A high-helix lead screw,speedy multi-start lead screw,or steep lead screw features a high pitch that is used to transform a smaller radial movement into a large axial movement.
M ISO Metric Thread (60°)
The most common form of thread used for fastening and precision transmission.
A ACME Thread (29°)
Inch threads can also be used for fastening connections,but not for high accuracy.
R Knuckle Thread
With the same arc thread as ball screw, the transmission is smoother.
G Gothic thread
Gothic double arc thread,offering the advantages of ball screw,is similar a new kind of lead screw.
X Self-reversing thread
A screw that makes the slide block reciprocate without changing the rotation direction of the spindle.
ALM originally established in year of 2005.From a small factory,ALM nowadays has four production workshops for ball screw,lead screw,linear motor,linear actuator,linear guideways and related CNC machining parts for automation industry.Total areas over 7000 square meters,109 employees.Above 8 technical engineers are with over 20 years’ experience in linear motion filed.
ALM manufactures and supplies high quality linear motion components for customers in fields of aircraft, satellite,medical,Instrumentation,Robotics,Automobile,Electrical & Electronics,Textile,Medical,Food & Beverages,General Industry and so on.Customers cover more than 65 countries in Europe,North America,South Asia,Middle East,Africa,Latin America etc.With super quality and service,ALM has been widely recognized and highly valued by its high-end and picky customers, and thus remains at the top of their vendor lists.
ALM key production machines are imported,like high precision CNC grinding machine,3 axis,4 axis machining centre,internal and external grinding centre,CNC lathe.In addition,with advanced production management,ALM obtained the quality certificate ISO9001:2008 and IATF16949.And through our R&D department dedication over 16 years,we possess more than 26 national patents.
