| Quantity: | |
|---|---|
20x20
ALM
8479909090

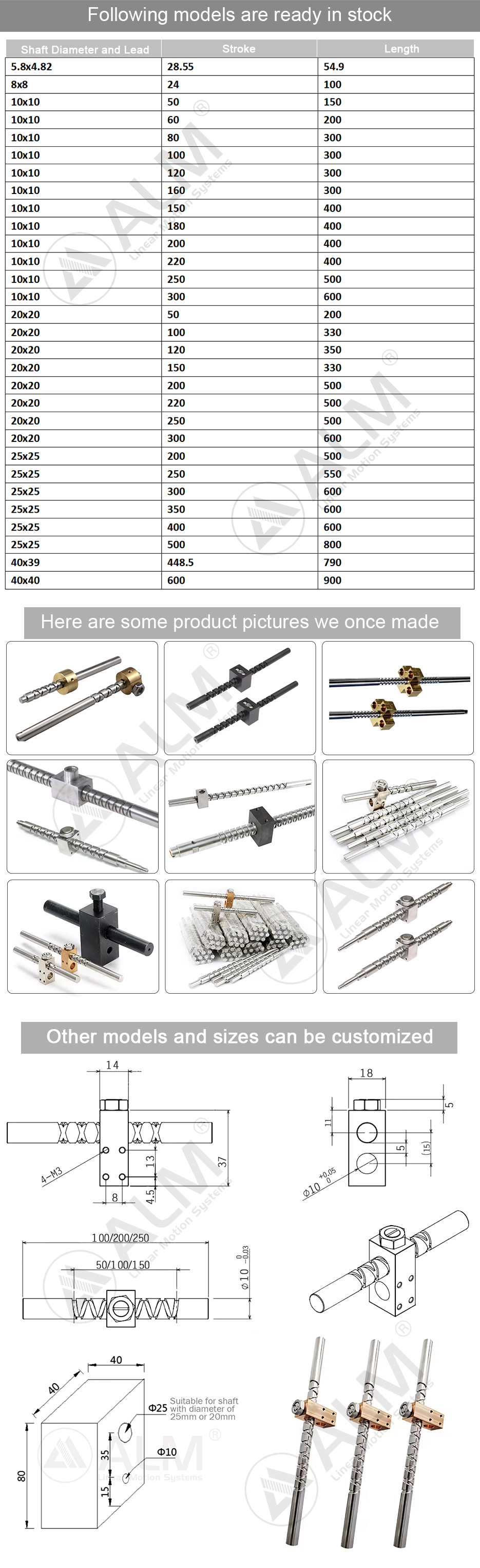

Diameter 20mm Lead 20mm 20x20 Self-reversing Screw for Spooling Equipment
This self-reversing screw diameter is 20mm,lead 20mm.The reciprocated bi-directional movement is achieved by using a follower blade in the nut,that is matched to the particular groove width.A crisscross thread pattern allows you to drive the nut back and forth without changing the 20x20 lead screw's direction of rotation.Reciprocating screw is widely used in winding equipment,industrial robots and other fields.
| Diamter | 20mm |
| Lead | 20mm |
| Length | According to your needs |
| Shaft end machining | Processing according to your requirements |
| Nut shape and dimension | According to your needs |
| Thread Direction | Right hand thread/left hand thread/right and left hand thread |
| Available screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated,molybdenum disulfide. |
| Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
| Clearance | 7e,higher precision is available upon request |
Contact our sales staff to customize more reciprocating lead screw details.
