Tr6x10
ALM
8483900090
The diameter of the trapezoidal Lead Screw is 6mm.The miniature trapezoidal lead screw lead is 10mm.Tr6x10 trapezoidal lead screw pitch is 2.5mm.The trapezoidal lead screw with flange nut has uniform force,affordable price.ALM focus on lead screw manufacturing for 16 years.ALM trapezoidal lead screw has the characteristics of affordable,high transmission efficiency and long service life.

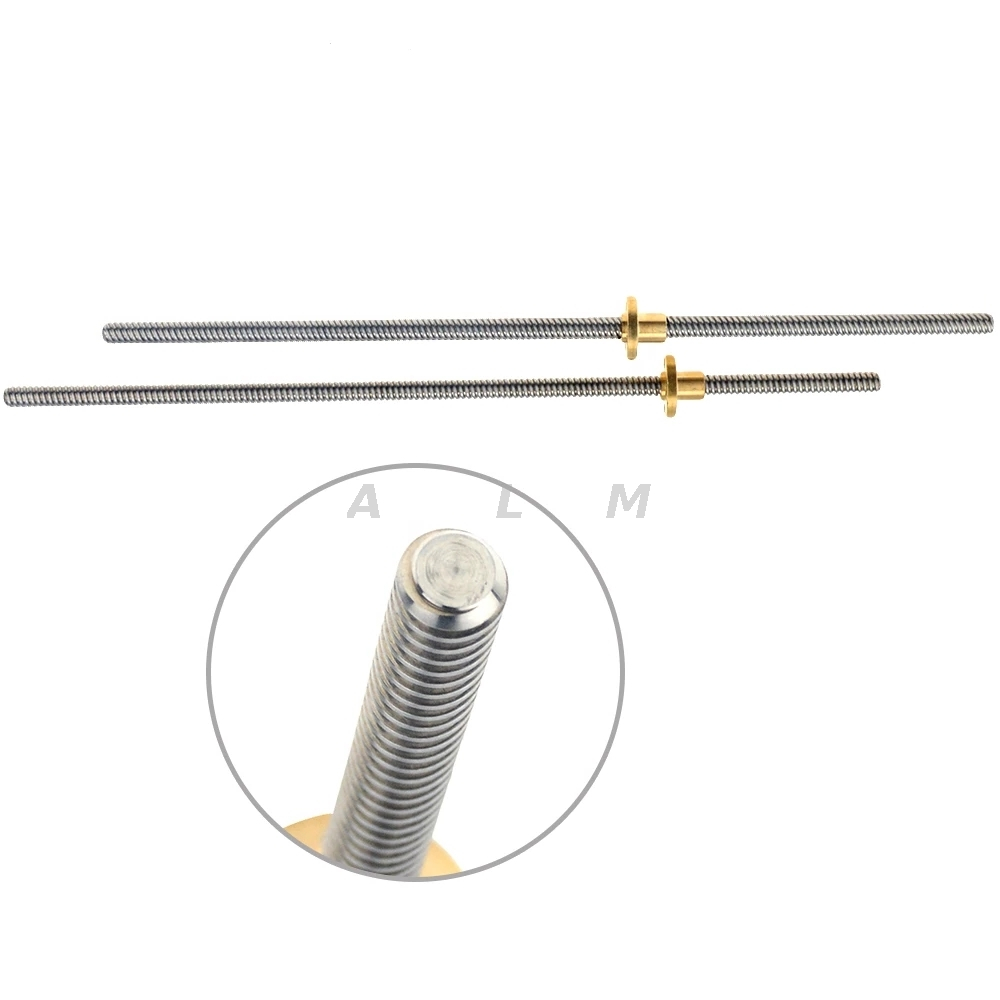

Product name | Diameter 6mm Pitch 2.5mm Tr6x10 Miniature Trapezoidal Lead Screw |
Lead screw model | Diameter 6mm,Lead 10mm,Pitch 2.5mm |
Tr6x10 Lead screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
T6 Lead nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEK,nylon,POK,Stainless steel,1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
6x10 Lead screw quality standard | ISO2901-4,DIN103 |
6mm Lead screw clearance | 7e,higher precision is available upon request |
Lead Screw Parameter |
A broad range of lead nuts are available,other nut type or size can be made upon drawing
When selecting the right nut for an application,there are a few things to keep in mind.Bronze nuts provide superior service at high working loads.They should be well lubricated with a good quality,Extreme Pressure(EP)grease compatible with the operating environment.Plastic nuts can be used without lubrication and are popular for low load applications.
Other ready lead screw models are available
Our Advantages |
Free service | Performance testing |
Selection of auxiliary | |
Technical solution | |
Please contact the salesman for details |
Custom service | Stainless steel and other customized materials |
Surface treatment | |
Custom lead nut and shaft end machining | |
Maintenance and assembly | |
Replace grease | |
Please contact the salesman for details |
Lead Screw Applications |
Lead screws are commonly used in instrument-level applications that require smooth,precise,clean,and maintenance-free operation.The nut material is usually made of an internally lubricated polymer.Some examples are laboratory and life science equipment,such as DNA sampling,scanning,and fluid handling equipment.Other applications include engraving,rapid prototyping,inspection and data storage.The lead screw can also be used for heavy lifting applications when used in conjunction with a metal(usually bronze)nut.The common application industry of the lead screw are shown in the figure below.
Lead Screw Thread Types |
T ISO Trapezoidal Thread Din103
For transmission and position adjustment,widelyused in the mechanical industry.
H High-helix Screws
A high-helix lead screw,speedy multi-start lead screw,or steep lead screw features a high pitch that is used to transform a smaller radial movement into a large axial movement.
M ISO Metric Thread (60°)
The most common form of thread used for fastening and precision transmission.
A ACME Thread (29°)
Inch threads can also be used for fastening connections,but not for high accuracy.
R Knuckle Thread
With the same arc thread as ball screw, the transmission is smoother.
G Gothic thread
Gothic double arc thread,offering the advantages of ball screw,is similar a new kind of lead screw.
X Self-reversing thread
A screw that makes the slide block reciprocate without changing the rotation direction of the spindle.
The diameter of the trapezoidal Lead Screw is 6mm.The miniature trapezoidal lead screw lead is 10mm.Tr6x10 trapezoidal lead screw pitch is 2.5mm.The trapezoidal lead screw with flange nut has uniform force,affordable price.ALM focus on lead screw manufacturing for 16 years.ALM trapezoidal lead screw has the characteristics of affordable,high transmission efficiency and long service life.
Product name | Diameter 6mm Pitch 2.5mm Tr6x10 Miniature Trapezoidal Lead Screw |
Lead screw model | Diameter 6mm,Lead 10mm,Pitch 2.5mm |
Tr6x10 Lead screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
T6 Lead nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEK,nylon,POK,Stainless steel,1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
6x10 Lead screw quality standard | ISO2901-4,DIN103 |
6mm Lead screw clearance | 7e,higher precision is available upon request |
Lead Screw Parameter |
A broad range of lead nuts are available,other nut type or size can be made upon drawing
When selecting the right nut for an application,there are a few things to keep in mind.Bronze nuts provide superior service at high working loads.They should be well lubricated with a good quality,Extreme Pressure(EP)grease compatible with the operating environment.Plastic nuts can be used without lubrication and are popular for low load applications.
Other ready lead screw models are available
Our Advantages |
Free service | Performance testing |
Selection of auxiliary | |
Technical solution | |
Please contact the salesman for details |
Custom service | Stainless steel and other customized materials |
Surface treatment | |
Custom lead nut and shaft end machining | |
Maintenance and assembly | |
Replace grease | |
Please contact the salesman for details |
Lead Screw Applications |
Lead screws are commonly used in instrument-level applications that require smooth,precise,clean,and maintenance-free operation.The nut material is usually made of an internally lubricated polymer.Some examples are laboratory and life science equipment,such as DNA sampling,scanning,and fluid handling equipment.Other applications include engraving,rapid prototyping,inspection and data storage.The lead screw can also be used for heavy lifting applications when used in conjunction with a metal(usually bronze)nut.The common application industry of the lead screw are shown in the figure below.
Lead Screw Thread Types |
T ISO Trapezoidal Thread Din103
For transmission and position adjustment,widelyused in the mechanical industry.
H High-helix Screws
A high-helix lead screw,speedy multi-start lead screw,or steep lead screw features a high pitch that is used to transform a smaller radial movement into a large axial movement.
M ISO Metric Thread (60°)
The most common form of thread used for fastening and precision transmission.
A ACME Thread (29°)
Inch threads can also be used for fastening connections,but not for high accuracy.
R Knuckle Thread
With the same arc thread as ball screw, the transmission is smoother.
G Gothic thread
Gothic double arc thread,offering the advantages of ball screw,is similar a new kind of lead screw.
X Self-reversing thread
A screw that makes the slide block reciprocate without changing the rotation direction of the spindle.
