Tr9.525x9.525
ALM
8479909090

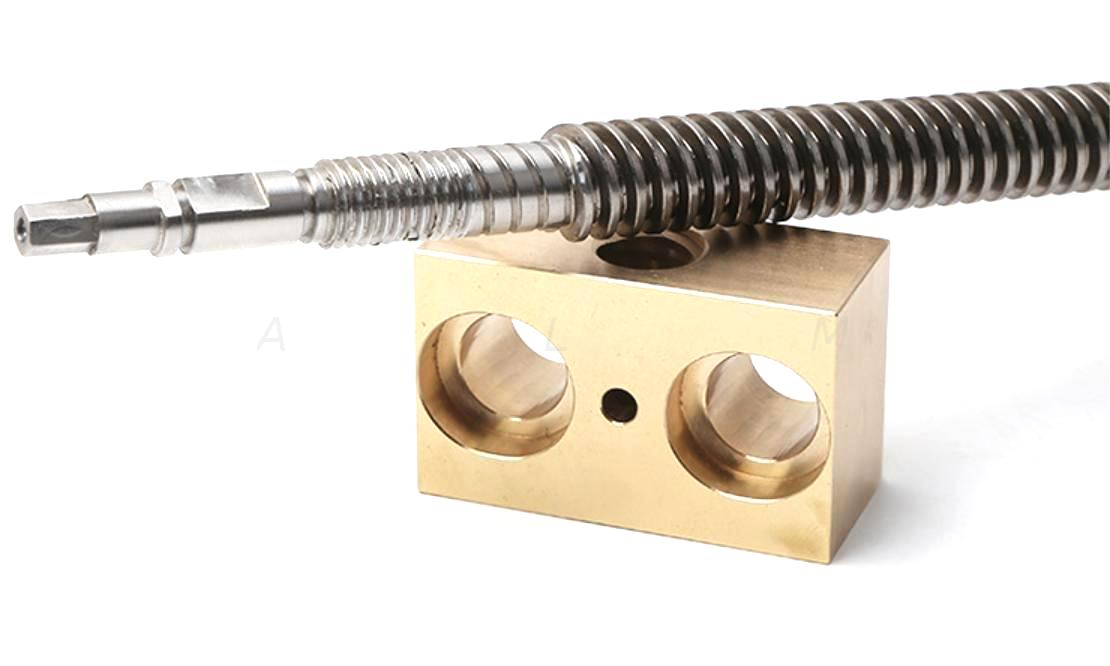

Diameter 9.525mm Lead 9.525mm Tr9.525x9.525 Lead Screw with Square Nut
The diameter of this trapezoidal screw is 9.525mm,lead is 9.525mm with four starts.The lead screw is made of stainless steel and is smooth and wear-resistant.The square nut is easy to install.The lead accuracy can reach 0.02mm/100mm.
| Diamter | 9.525mm |
| Lead | 9.525mm |
| Length | According to your needs |
| Shaft end machining | Processing according to your requirements |
| Nut shape and dimension | According to your needs |
| Thread Direction | Right hand thread/left hand thread/right and left hand thread |
| Available screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated,molybdenum disulfide. |
| Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
| Clearance | 7e,higher precision is available upon request |
| Lead accuracy | Can be 0.02mm/100mm |
Contact our sales staff to customize more lead screw details.
