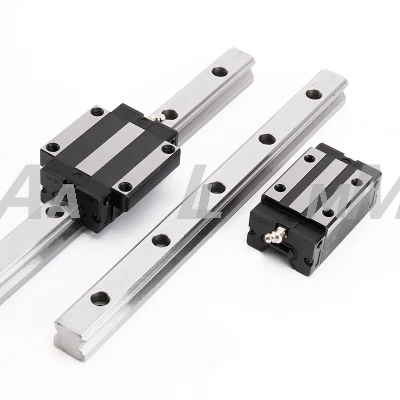

HGH20CA
ALM
The HGH20CA linear guide rail has vast advantages.on the one hand,Linear guideways are easy to install and require minimal maintenance, reducing downtime and increasing productivity.on the other hand,Linear guideways can operate at high speeds, making them ideal for applications that require fast motion.
| Material | Bearing steel,S55C |
| Accuracy grade | C,H,P |
| Certificates | ISO9001:2015,CE certificate,RoHS and reach compliance |
| MOQ | 1 piece |
| Lead time | 5~15 days |
| Packing | Carton+Plastic bag + Wooden box or according to customers' demands |
| Advantages | High Precision,Large Load Capacity,Low Noise,High Rigidity |
Maintenance method of linear guide rail |
1.Avoid collision: In the process of use, to avoid the guide rail and slide block collision with other objects, so as to avoid damage.
2.Pay attention to moisture-proof and rust-proof: When used in humid environment, pay attention to moisture-proof and rust-proof agent can be used for processing.
| Structure of Linear Guides |
The linear guides are composed of a mechanism that uses steel balls to allow for an infinite stroke of ball slides.The balls move along a ball groove on a rail and ball slide,and are collected at point A by the end cap.The end cap then directs the balls to change direction and move through a circular hole in the ball slide.The balls continue to circulate through the hole and return to the other end of the ball slide,ultimately returning to the ball grooves of the rail and ball slide.This process allows for an endless circulation motion of the steel balls.
| ALM Linear Guide Catalog Download |
Other linear guideway models are available,kindly please refer to the catalog below.We are leading manufacturers of ball screws,lead screws,linear modules,linear guideways,linear motors for more than 16 years in China.If you need other linear motion components,please contact us for details.
Linear Guideway catalog-ALM-210725 -V2.pdf
