Tr16x35
ALM
8483900090

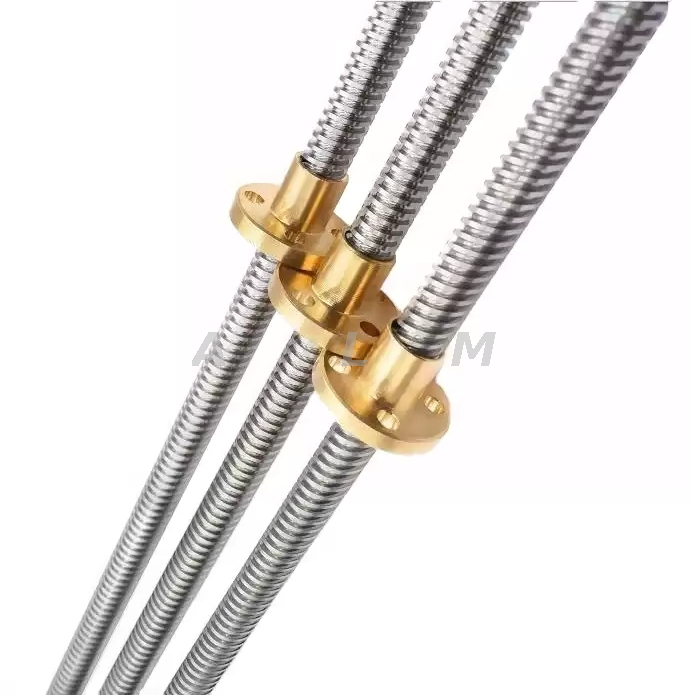

High Quality Tr16x35 Trapezoidal Lead Screw with Brass Flange Nut.The pitch of the Lead Screw is 5mm.The inherent steel to steel rolling elements and recirculation of ball screws cause them to make a lot of noise.Lead screws,on the other hand,produce relatively little noise because they rely on sliding motion and have no rolling element.Because of their low noise levels,lead screws are commonly used in laboratory automation and medical imaging devices where the environment is inherently quiet and the user or patient may be disturbed by excessive noise.Low noise components are also required for consumer devices such as printers,scanners and appliances,where lead screws are the preferred choice over ball screws.
Lead screw model | Diameter 16mm,Lead 35mm,Pitch 5mm |
Tr16x35 Lead screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
T16 Lead nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEK,nylon,POK,Stainless steel,1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
16x35 Lead screw quality standard | ISO2901-4,DIN103 |
16mm Lead screw clearance | 7e,higher precision is available upon request |
Lead Screw Parameter |
A broad range of lead nuts are available,other nut type or size can be made upon drawing
When selecting the right nut for an application,there are a few things to keep in mind.Bronze nuts provide superior service at high working loads.They should be well lubricated with a good quality,Extreme Pressure(EP)grease compatible with the operating environment.Plastic nuts can be used without lubrication and are popular for low load applications.
Other ready lead screw models are available
Our Advantages |
Free service | Performance testing |
Selection of auxiliary | |
Technical solution | |
Please contact the salesman for details |
Custom service | Stainless steel and other customized materials |
Surface treatment | |
Custom lead nut and shaft end machining | |
Maintenance and assembly | |
Replace grease | |
Please contact the salesman for details |
Lead Screw Applications |
Lead Screw Thread Types |
T ISO Trapezoidal Thread Din103
For transmission and position adjustment,widelyused in the mechanical industry.
H High-helix Screws
A high-helix lead screw,speedy multi-start lead screw,or steep lead screw features a high pitch that is used to transform a smaller radial movement into a large axial movement.
M ISO Metric Thread (60°)
The most common form of thread used for fastening and precision transmission.
A ACME Thread (29°)
Inch threads can also be used for fastening connections,but not for high accuracy.
R Knuckle Thread
With the same arc thread as ball screw, the transmission is smoother.
G Gothic thread
Gothic double arc thread,offering the advantages of ball screw,is similar a new kind of lead screw.
X Self-reversing thread
A screw that makes the slide block reciprocate without changing the rotation direction of the spindle.
High Quality Tr16x35 Trapezoidal Lead Screw with Brass Flange Nut.The pitch of the Lead Screw is 5mm.The inherent steel to steel rolling elements and recirculation of ball screws cause them to make a lot of noise.Lead screws,on the other hand,produce relatively little noise because they rely on sliding motion and have no rolling element.Because of their low noise levels,lead screws are commonly used in laboratory automation and medical imaging devices where the environment is inherently quiet and the user or patient may be disturbed by excessive noise.Low noise components are also required for consumer devices such as printers,scanners and appliances,where lead screws are the preferred choice over ball screws.
Lead screw model | Diameter 16mm,Lead 35mm,Pitch 5mm |
Tr16x35 Lead screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
T16 Lead nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEK,nylon,POK,Stainless steel,1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
16x35 Lead screw quality standard | ISO2901-4,DIN103 |
16mm Lead screw clearance | 7e,higher precision is available upon request |
Lead Screw Parameter |
A broad range of lead nuts are available,other nut type or size can be made upon drawing
When selecting the right nut for an application,there are a few things to keep in mind.Bronze nuts provide superior service at high working loads.They should be well lubricated with a good quality,Extreme Pressure(EP)grease compatible with the operating environment.Plastic nuts can be used without lubrication and are popular for low load applications.
Other ready lead screw models are available
Our Advantages |
Free service | Performance testing |
Selection of auxiliary | |
Technical solution | |
Please contact the salesman for details |
Custom service | Stainless steel and other customized materials |
Surface treatment | |
Custom lead nut and shaft end machining | |
Maintenance and assembly | |
Replace grease | |
Please contact the salesman for details |
Lead Screw Applications |
Lead Screw Thread Types |
T ISO Trapezoidal Thread Din103
For transmission and position adjustment,widelyused in the mechanical industry.
H High-helix Screws
A high-helix lead screw,speedy multi-start lead screw,or steep lead screw features a high pitch that is used to transform a smaller radial movement into a large axial movement.
M ISO Metric Thread (60°)
The most common form of thread used for fastening and precision transmission.
A ACME Thread (29°)
Inch threads can also be used for fastening connections,but not for high accuracy.
R Knuckle Thread
With the same arc thread as ball screw, the transmission is smoother.
G Gothic thread
Gothic double arc thread,offering the advantages of ball screw,is similar a new kind of lead screw.
X Self-reversing thread
A screw that makes the slide block reciprocate without changing the rotation direction of the spindle.
