| Quantity: | |
|---|---|
0601
ALM
8483401000
| Material | Gcr15(HRC60~62),9Cr18(HRC55~58) |
| Accuracy grade | C0,C1,C3,C5 ,C7,C10(JIS standard) |
| Axial play | 0~0.005mm(Can be zero) |
| Preload | P0,P1,P2,P3,P4 |
| Efficiency | ＞90% |
| Certificates | ISO9001:2015,CE certificate,ROHS and reach compliance |
MOQ | 1 piece available for test |
| Delivery time | 10~30 days. |
| Packing | Carton,Plastic bag,wooden box or according to customers' demands |
| Other models | 0401, 0501, 0502, 0601, 0602, 0801, 0802, 0803, 0804, 0805 1001, 1002, 1003, 1004, 1201, 1202, 1203, 1204, 1205, 1210, 1402, 1403, 1404, 1405, 1602, 1603, 1604, 1605, 1608, 1610, 2002, 2003, 2004, 2005, 2006, 2010, 2020, 2502, 2503, 2504, 2505, 2510, 2512, 2525, 3205, 3206, 3208, 3210, 3212, 3216, 4005, 4008, 4010, 4012, 4016, 5005, 5010, 5012, 5016, 5020, 6310, 6312, 6316, 6320, 8010, 8016, 8020, etc |
| Mating parts | Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available |
Notes:We provide custom service,other model or ballnut type is available upon drawing.
| ALM Ball Screw Video Show |

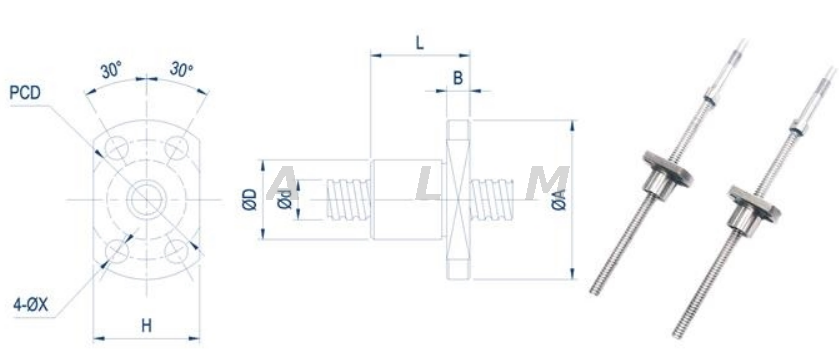

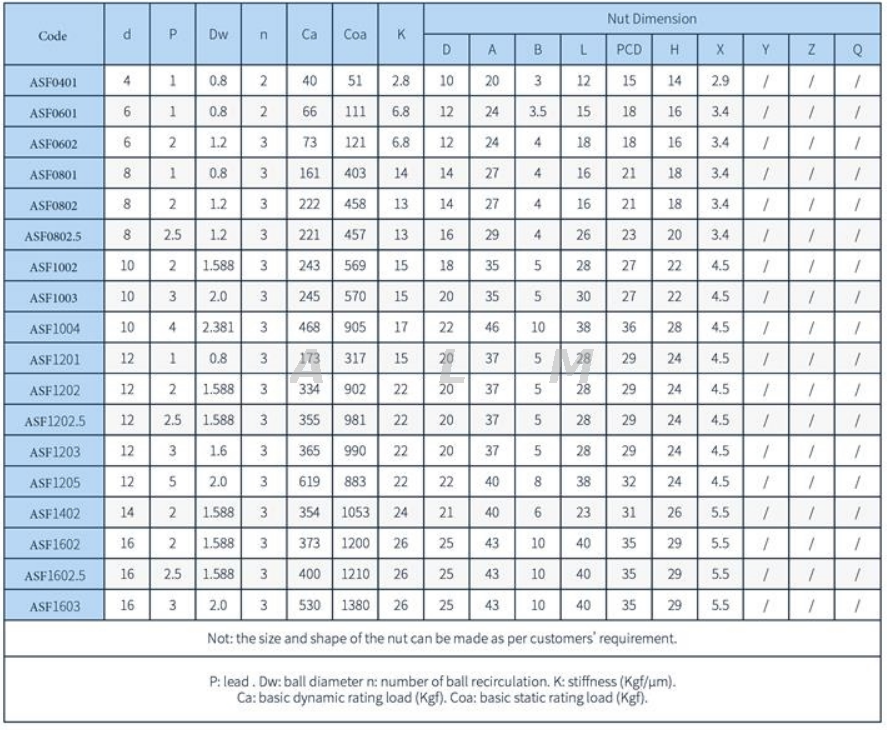

| ALM Ball Screw Parameter |
| Ball Screw Shipping and Payment |
●Shipping
Sample order:We have DHL,FedEx,UPS VIP account with discount.So you can get favorable shipping freight.
Bulk order:We have freight forwarder to ship by air,by train or by sea.You can also arrange shipping through your own agent.
●Payment
LC,T/T,D/P,PayPal,Western Union,Money Gram
| Ball Screw VS Lead Screw |
Ball Screw vs. Lead Screw: How To Choose The Right One?
Ball Screws and lead screws are not interchangeable in many cases considering accuracy, stiffness and load capacity.There are some differences between the application of ball screw and lead screws.In some cases,life testing needs to be performed during the design phase,it can help you save project cost.Ball screws can run continuously,withstand much higher loads,and can be more fast.
The main difference between a ball screw and a lead screw is how the load is carried between moving surfaces.Ball screws use recirculating ball bearings to minimize friction and improve efficiency,while lead screw nuts rotate between sliding surfaces.Therefore, lead screws cann't achieve the same efficiency as ball screws(about 90%).
Although ball screws have a variety of advantages(load,stiffness,efficiency,duty cycle,predictability),they are costly.The ball screw nut design is more complex,requiring hardened precision bearing surfaces and a ball circulation device.
Ball screws are widely used for Medical equipment,Implantable Pump,micro robot,Miniature lens actuator,Optics & Photonics,Guidance system,Miniature lens actuator, Pick & Place,Laboratory equipment, Fin actuator,Guidance system etc.
While,lead screw nut is very compact,the design is very flexible,the noise is very small under the condition of proper operation,and the corrosion resistance is good.The self-locking function can be configured to meet the vertical application requirements.They play an important role in many application areas,such as Pharmaceutical machinery,Packaging machinery,Slide drives, Metric valve stems,Medical device drives,Farm machinery,Screw press drives.
To Briefly Recap:
When you Choose Ball Screws,key factors are:
1.High loads with high speeds
2.Constant cycling
3.High precision
When you Choose Lead Screws,key factors are :
1.Low cost requirements
2.Positioning applications
3.Applications where lubrication is a detriment
ALM micro ball screw C3 C5 C7-V2.pdf
