Cnc 0610 Ground Miniature Ball Screw 6mm

Axial play:0~0.005mm(Can be zero)
MOQ:1 piece
Accuracy grade:C1,C3,C5
  • 0610

  • ALM

  • 8479909090

The miniature 0610 ball screw is designed to be compact and lightweight,making it suitable for small CNC machines or applications where space is limited.The ball screw is ground,which means that the threads are precisely machined to ensure smooth and accurate movement.

ALM Ball Screw Basic Information

 Material  Gcr15(HRC60~62),9Cr18(HRC55~58)
Axial play 0~0.005mm(Can be zero)
Preload P0,P1,P2,P3,P4
Efficiency >90%
 Accuracy grade  C1,C3,C5
Features Clean and smooth,excellent surface finsh
Certificates ISO9001:2015,CE certificate,RoHS and reach compliance

1 piece

 Lead time

10~30 days.


Carton+Plastic bag + Wooden box or according to customers' demands

 Mating parts

Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available

●ALM Ball Screw Details Show

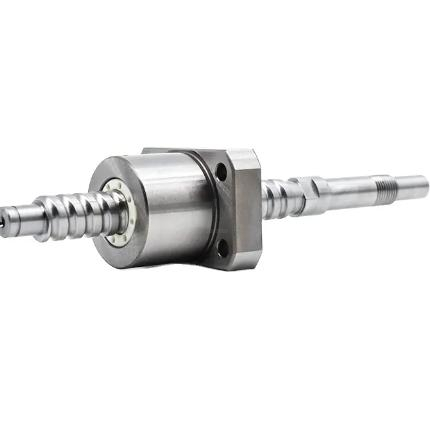

ground Ball Screw 0610
6mm Diameter Cnc 0610 Ground Miniature Ball Screw

0610 ball screw

Miniature Ball Screw 0610

●ALM Ball Screw Production Video Show

Difference Between Ground Ball Screw And Rolled Ball Screw

1.Manufacturing Process:
The thread profile of a ground ball screw is achieved through a grinding process.This grinding ensures high precision and accuracy in the thread profile.

Rolled ball screw thread  is formed by rolling the metal between hardened steel dies.This process is less precise compared to grinding.

Due to the grinding process,ground ball screws offer higher precision and repeatability.They have minimal backlash and provide accurate positioning.

Rolled ball screws have less precision compared to ground ball screws.They may have some degree of backlash and are suitable for applications that do not require extreme precision.

3.Load Capacity:
Ground ball screws typically have a higher load capacity due to their precision manufacturing process.They can handle heavier loads and higher speeds.

Rolled ball screws have a lower load capacity compared to ground ball screws.They are suitable for applications with lighter loads and lower speeds.

The precision and accuracy of ground ball screws make them more expensive to manufacture,resulting in higher overall costs.

Rolled ball screws are less expensive to manufacture compared to ground ball screws,making them more cost-effective.


Founded in year of 2005,from a small workshop KUNSHAN TIANHE BALL SCREW FACTORY,ALM group has grown fast and has four production workshops now for ball screw,lead screw,linear motor,linear actuator,linear guideways and related CNC machining.Factory area is over 15000 square meters,129 employees.Our factory is equipped with 15 automated production line.Products are 100% inspected before shipping.ALM has obtained ISO9001,IATF16949,CE,RoHS certificate. Over 25 distributors all over the world.

ALM manufactures and supplies high quality linear motion components for customers in fields of aircraft,satellite,medical, Instrumentation,Robotics,Automobile,Electrical & Electronics,Textile,Medical,Food & Beverages,General Industry and so on.With super quality and service,ALM has been widely recognized and highly valued by its high-end and picky customers,and thus remains at the top of their vendor lists.

ALM R&D Team

ALM R&D Team

ALM's office

ALM office

ALM's workshop

ALM workshop

ALM product processing

product processing

ALM inspection equipment

ALM Inspection EquipmentALM process machine

ALM's warehouse

ALM linear guideALM Product Show


ALM product show

ALM Exhibition

shanghai munich industry fairExhibition

Customer Visit

ALM customer visit

Patent Certificate for invention and utility model

seidal product certificate

ISO  Certificate


CE Certificate

ALM CE certificate

Excellent HighTech Enterprise

Excellent HighTech Enterprise

Leading Talents Certificate

ALM Leading Talents Certificate

1.Why can ALM be your better option for linear motion components?
●Nearly 20 years of rich manufacturing experience;

●We understand both electrical and mechanical issues. Can recommend good engineering design.

●Quality is guaranteed,We inspect everything, so you won't receive product that doesn't meet specifications. For some parts, we stock for the customer, You never have to wait.
●Easy to pay and can be trusted, We always respond to questions.
●We work on your time zone-You no need work through dinner and at night. Above all, our professional sales and after-service team ensure high efficiency communication to allow you high work efficiency and keep a good mood everyday.

2.When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.

3.About shipping and payment:
Sample order: We have DHL, FedEx, UPS VIP account with discount. So you can get favorable shipping freight.
Bulk order: We have freight forwarder to ship by air, by train or by sea. You can also arrange shipping through your own shipping agent.

LC,T/T,D/P, PayPal, Western Union, Money Gram

4.How is quality ensured?
All our processes strictly adhere to ISO9001:2015 procedures. Combining advanced equipment, from production to delivery, we have strict quality control. Our company has strong technical support and has cultivated a group of managers who are familiar with product quality, good at modern concept of management. Our production concept is “Quality has to be caused, not controlled.”

5.How to custom-made (OEM/ODM)?

If you have a new product drawing or a sample, please send to us, we’ll make our production drawing and customize it as per your requirement. We can also provide our professional advices to make your design more realized and maximize the performance. So,If you didn’t find the ideal product from our website, please email us, your inquiry will get fast response.

6.What's your Delivery Time?

●Standard items: Ready in stock

●Customized items:7-20days

●For urgent case, We can make the delivery ASAP with guaranteed quality.
