MGW7C
ALM
8483401000
High quality same dimension to replace original HIWIN linear guideways.

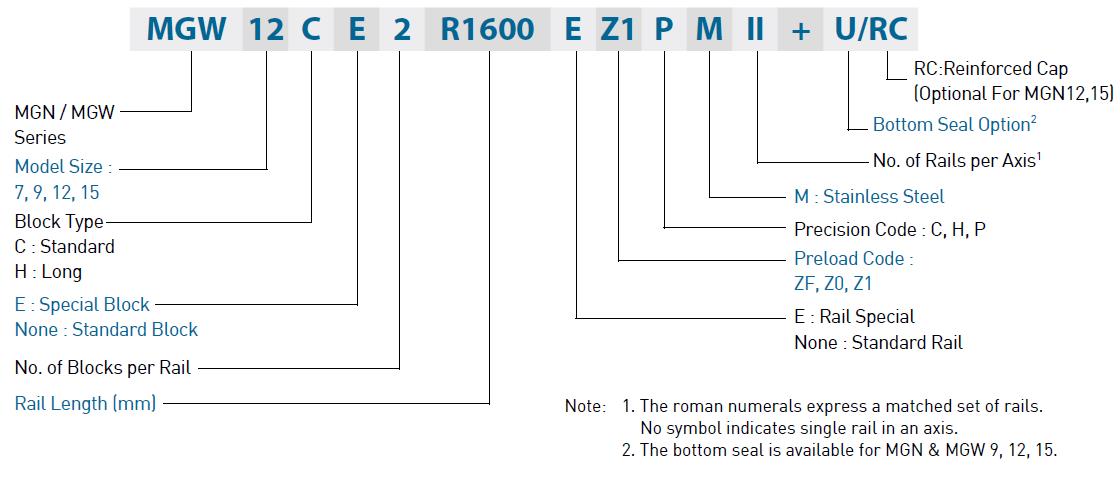

MGW series linear guideway can be classified into non-interchangeable and interchangeable types. The sizes of two types are the same. The interchangeable type is more convenient due to rails can be replaced. However,its precision is less than non-interchangeable type. Because of strict dimensional control, the interchangeable type linear guideway is a smart choice for customers when rails don’t need to be paired for another axis. The model
number contains the information of the size, type, accuracy class, preload class, and so on.
The design feature of wide type miniature guideway-MGW:
1. The design of enlarged width has increased the capacity of moment load.
2. Gothic arch contact design has high rigidity characteristic in all directions.
3. Steel balls will be held by miniature retainer to avoid the balls from falling out even when the block are
removed form the rail installation.
4. All metallic components are made of stainless steel for anti-corrosion purpose.
MGW series can be used in many fields, such as semiconductor equipment, PCB assembly equipment, medical
equipment, robotics, measuring equipment, office automation equipment, and other miniature sliding mechinery.
Linear Guideway catalog-ALM.pdf
https://www.autolinearmotion.com/download.html
Need more files and catalog?
Contact us: sales@autolinearmotion.com
