Right And Left Hand Thread 1401 1402 1402.5 1403 1404 1405 Bi-directional Ball Screw

Lead time:5~15
MOQ:1 piece
Ball screw shaft material: bearing steel
  • 1401 1402 1402.5 1403 1404 1405

  • ALM

  • 8479909090

The ball screw has several advantages over other types of linear motion devices,including high efficiency,high accuracy,and low friction.Ball screw is widely used in various applications,such as CNC machines,robotics,and aerospace equipment.

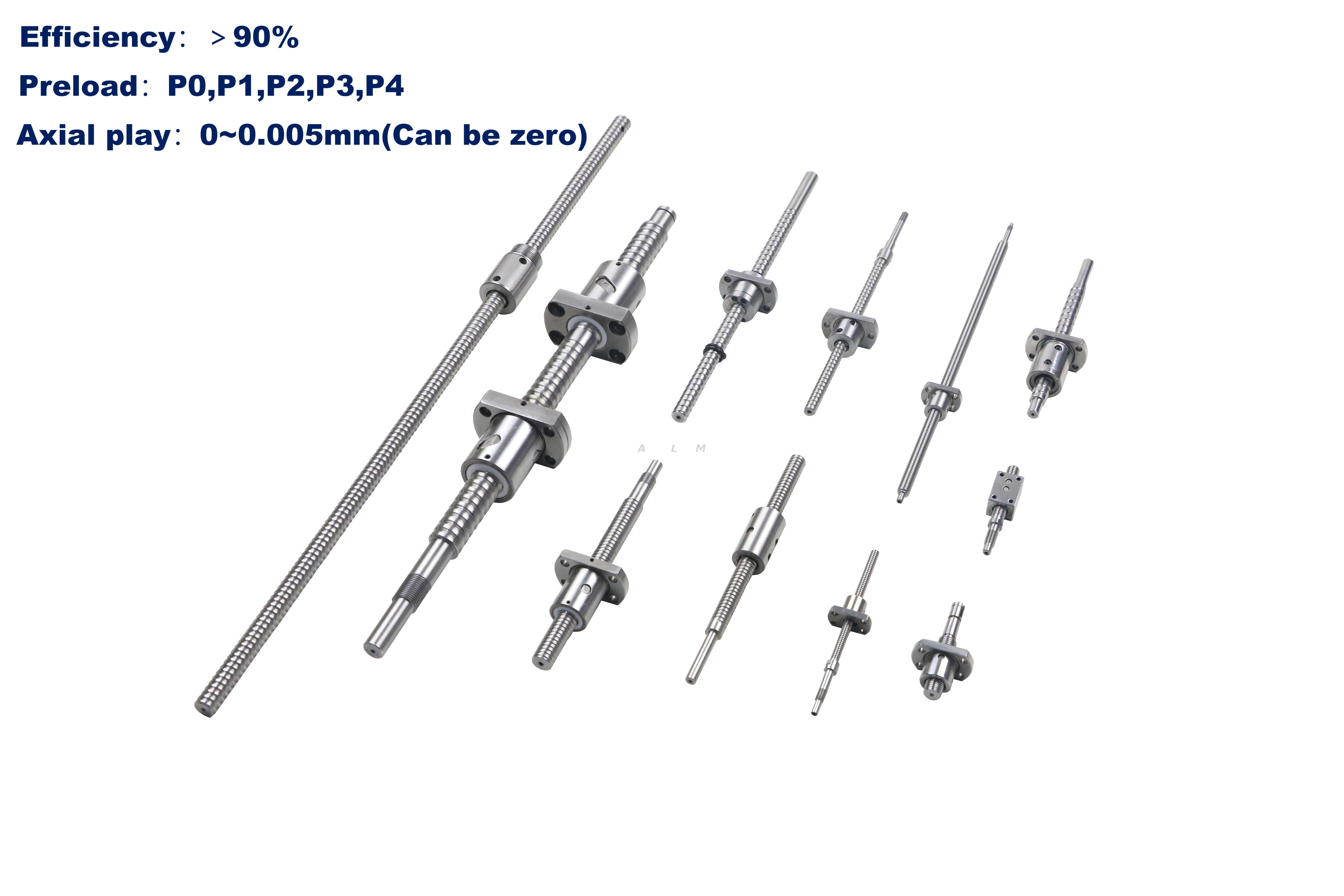

ALM Ball Screw Basic Information

 Material  Gcr15(HRC60~62),9Cr18(HRC55~58)
Axial play 0~0.005mm(Can be zero)
Preload P0,P1,P2,P3,P4
Efficiency >90%
 Accuracy grade  C1,C3,C5
Features Clean and smooth,excellent surface finsh
Certificates ISO9001:2015,CE certificate,RoHS and reach compliance

1 piece

 Lead time

10~30 days.


Carton+Plastic bag + Wooden box or according to customers' demands

 Mating parts

Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available

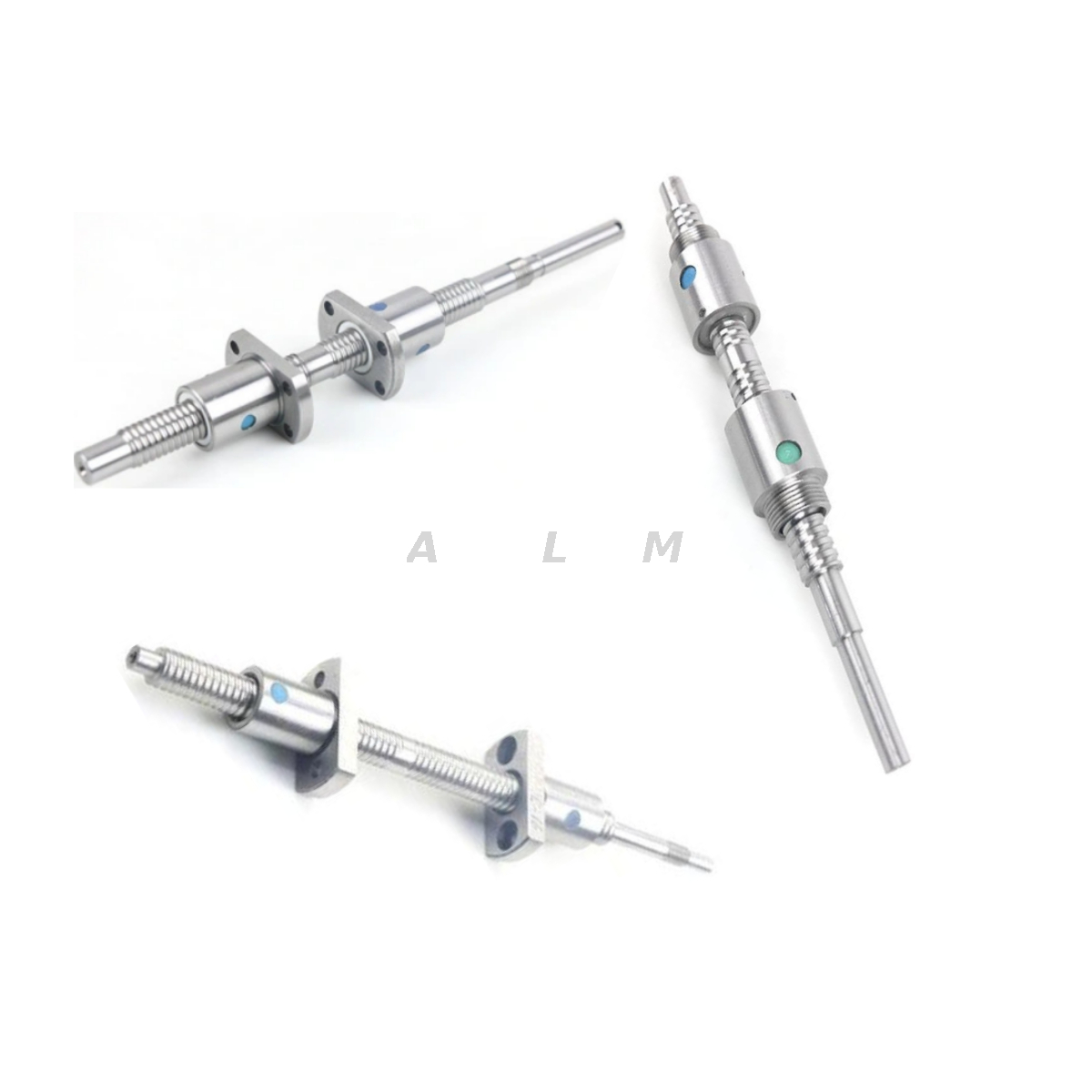

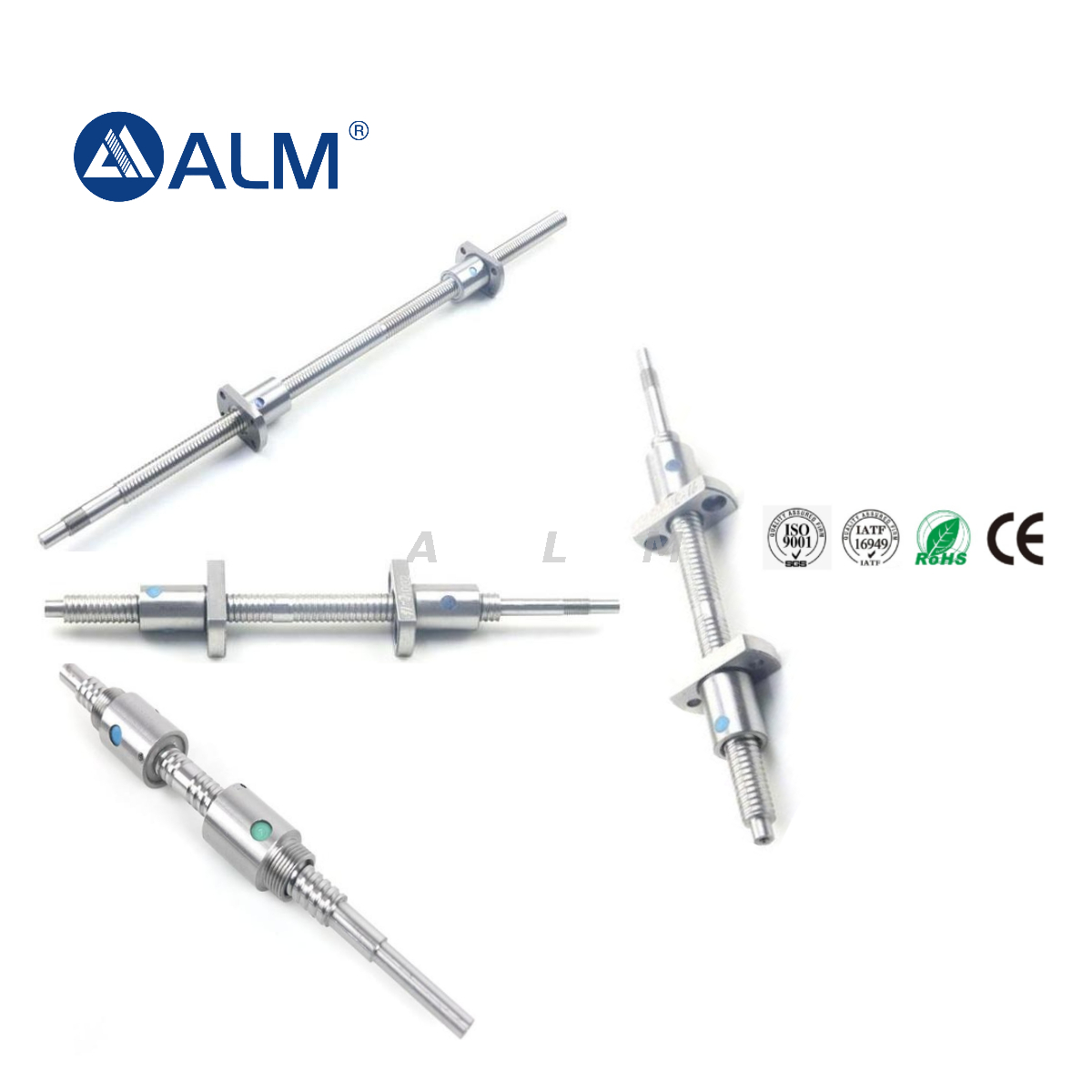

Bi-directional Ball Screw Details Show

14mm ball screw

ball screw 14mm

●ALM Bi-directional Ball Screw Video Show

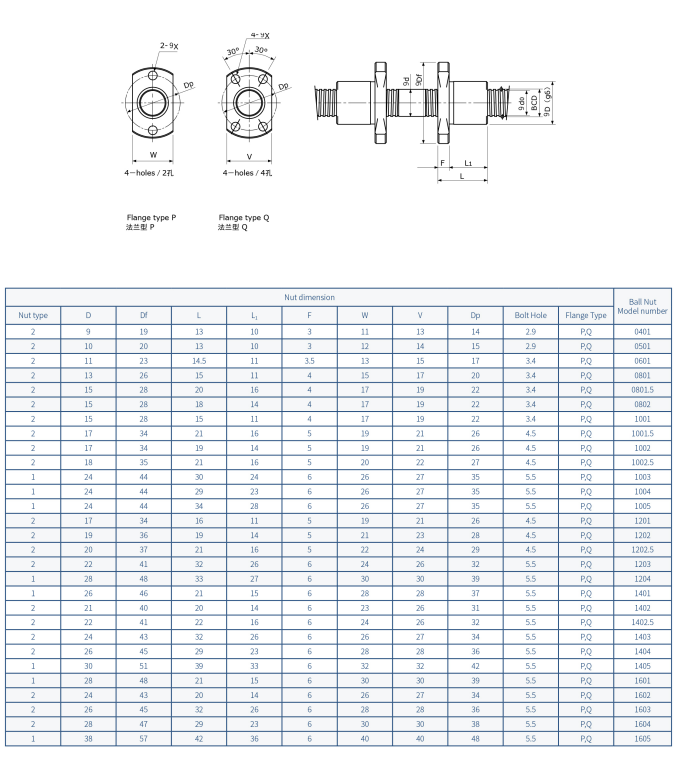

Diameter 14mm Bi-directional Ball Screw Dimension

We support a variety of shaft end machining and ballnut customization.Refer to the catalog below for more bi-directional ball screw model numbers.

bi-directional ball screws-ALM 1.1.pdf

bi-directional ball screw

Ball Screw Selection Tips

Choosing the right high-quality ball screw is essential to ensure smooth and precise operation.Here are the key factors to consider when selecting a ball screw for your application.

1.Load Capacity

One of the most critical factors to consider when selecting a ball screw is the load capacity. The load capacity refers to the maximum amount of weight that the ball screw can handle without compromising its performance. It is essential to choose a ball screw with a load capacity that exceeds the maximum load that your application requires. Failure to do so can result in premature wear and tear, decreased accuracy, and even system failure.


Another critical factor to consider when selecting a ball screw is accuracy. The accuracy of a ball screw refers to its ability to move precisely and repeatably. The accuracy of a ball screw is affected by several factors, including the manufacturing process, the quality of the materials used, and the design of the ball screw. It is essential to choose a ball screw with a high level of accuracy to ensure that your application operates as intended.


The speed at which a ball screw can operate is another important factor to consider when selecting a ball screw. The speed of a ball screw is determined by several factors, including the lead, the pitch, and the diameter of the ball screw. It is essential to choose a ball screw with a speed that meets the requirements of your application.


The environment in which the ball screw will operate is also an important consideration. Factors such as temperature, humidity, and exposure to chemicals can all affect the performance of a ball screw. It is essential to choose a ball screw that is designed to operate in the specific environment of your application.


The maintenance requirements of a ball screw are another important factor to consider when selecting a ball screw. Some ball screws require regular lubrication, while others are designed to be maintenance-free. It is essential to choose a ball screw that meets the maintenance requirements of your application to ensure that it operates reliably and efficiently.


Founded in year of 2005,from a small workshop KUNSHAN TIANHE BALL SCREW FACTORY,ALM group has grown fast and has four production workshops now for ball screw,lead screw,linear motor,linear actuator,linear guideways and related CNC machining.Factory area is over 15000 square meters,129 employees.Our factory is equipped with 15 automated production line.Products are 100% inspected before shipping.ALM has obtained ISO9001,IATF16949,CE,RoHS certificate. Over 25 distributors all over the world.

ALM manufactures and supplies high quality linear motion components for customers in fields of aircraft,satellite,medical, Instrumentation,Robotics,Automobile,Electrical & Electronics,Textile,Medical,Food & Beverages,General Industry and so on.With super quality and service,ALM has been widely recognized and highly valued by its high-end and picky customers,and thus remains at the top of their vendor lists.

ALM R&D Team

ALM R&D Team

ALM's office

ALM office

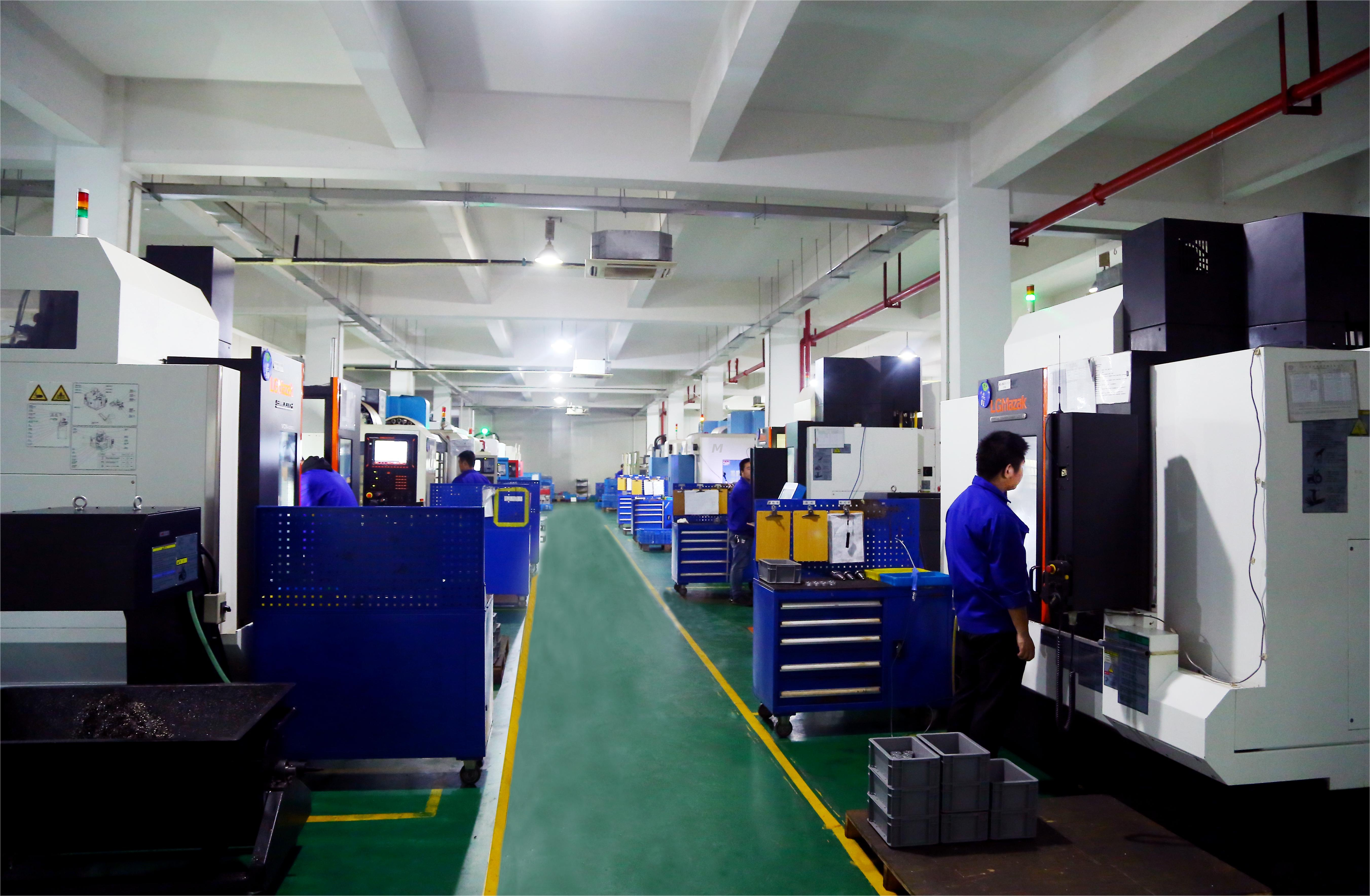

ALM's workshop
