Roller Screw Planetary Roller Screw for Electric Actuator

Lead time:5~10
MOQ:1 piece
high speed
zero backlash
  • ALM

  • 8479909090

A planetary roller screw is a variation of the roller screw design that incorporates a planetary gear system.The threaded shaft is surrounded by multiple planetary rollers that are engaged with an outer ring gear.As the threaded shaft rotates,the planetary rollers move along the threads,resulting in linear motion.

Maximum load
6301 (kN)
Outer diameter of lead screw
8-120 (mm)
Bottom diameter of lead screw
7.76-115.8 (mm)
Screw pitch
2-40 (mm)
Applicable machine tools
All are possible
Is it in stock
Maximum dynamic load

ALM Planetary Roller Screws Details Show

ALM Planetary Roller Screw

Roller Screw Planetary Roller Screw for Electric Actuator

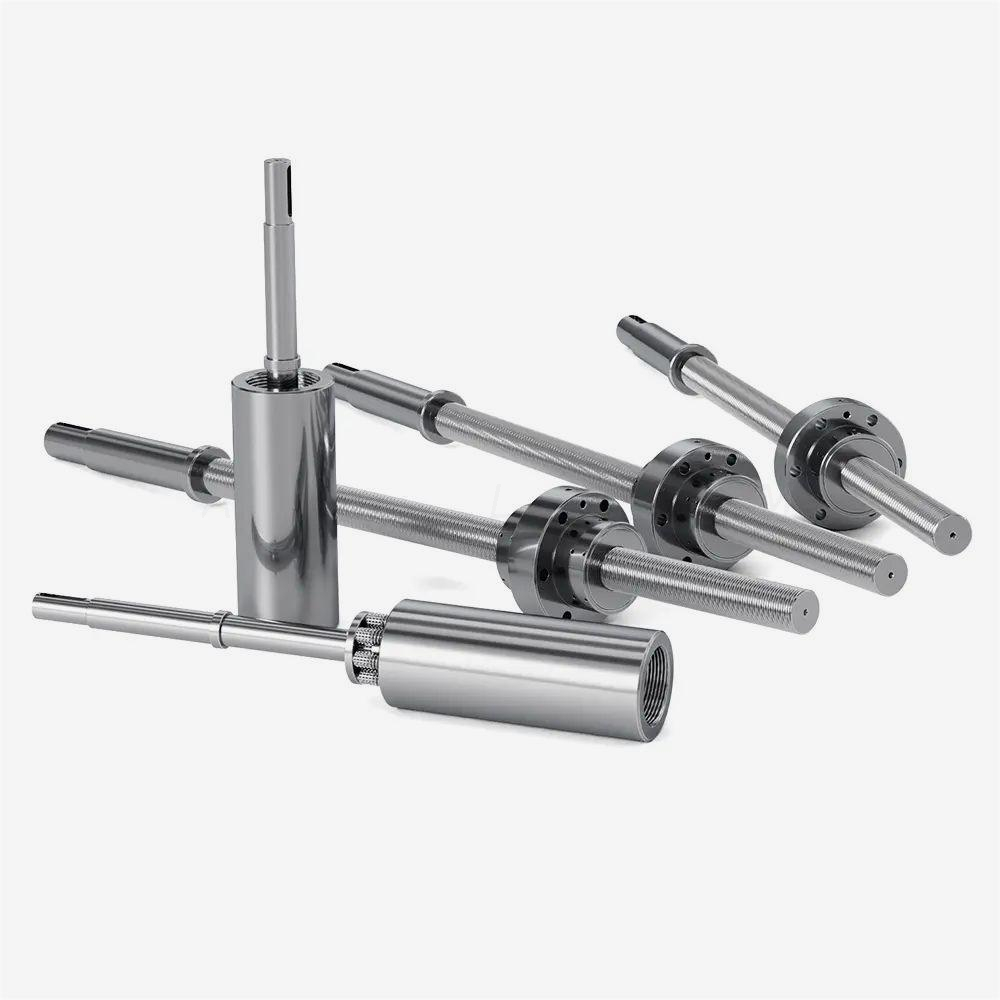

ALM Roller Screw

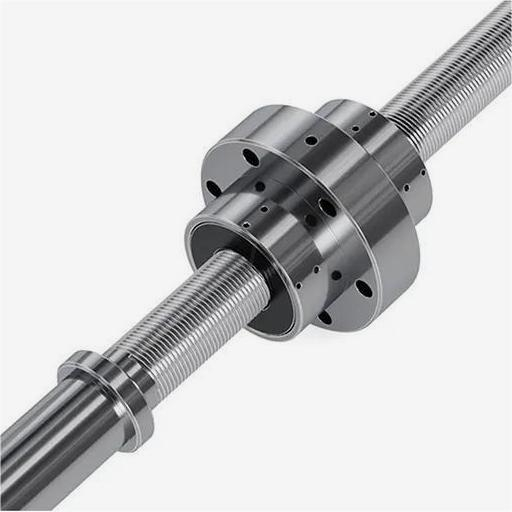

Roller Screw Planetary Roller Screw

High Speed Planetary Roller Screw

Various Planetary Roller Screws Are Available

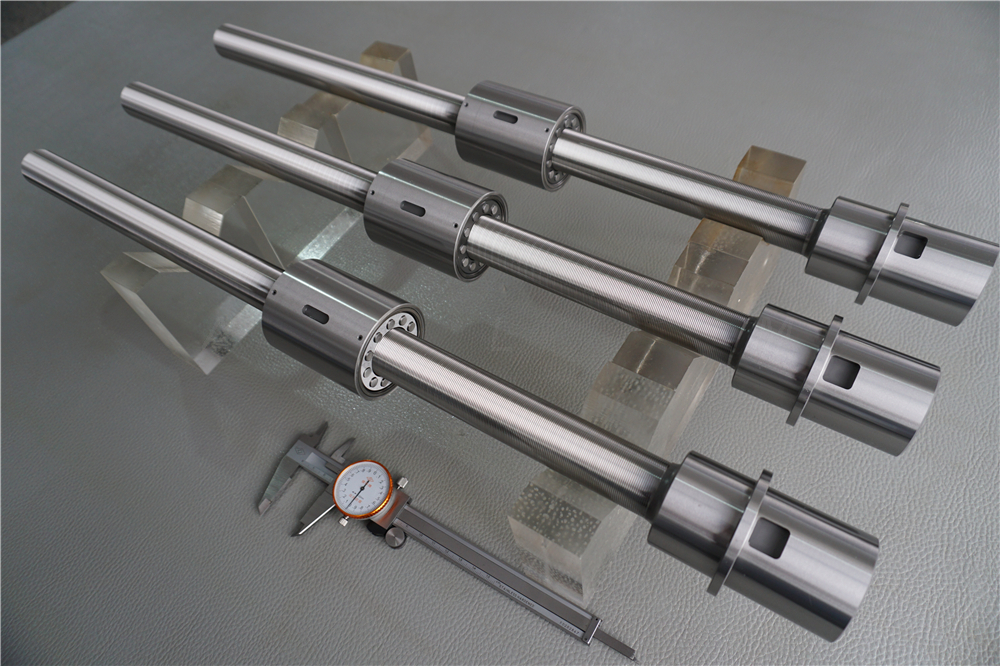

planetary roller screw mechanism

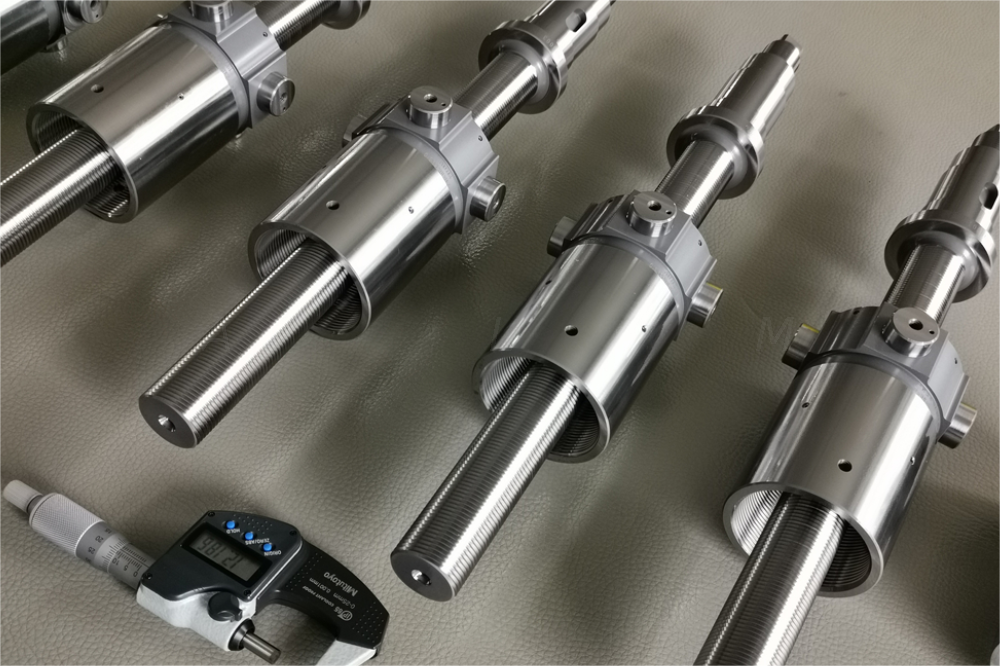

planetary roller screw price

planetary roller screw actuator

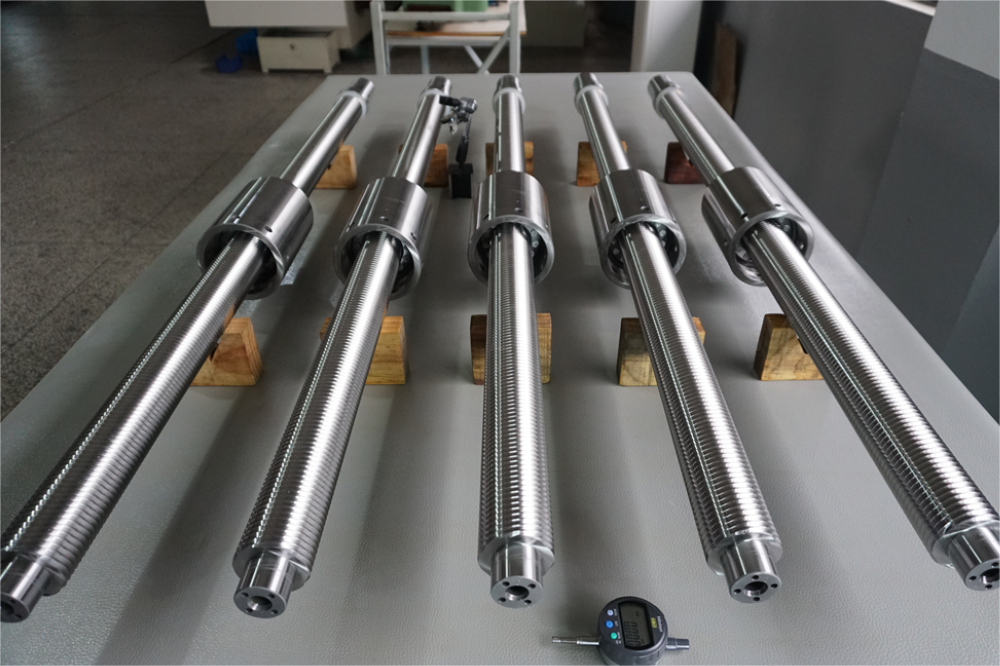

high load Roller Screw

screw planetary roller screw

planetary roller screw electric

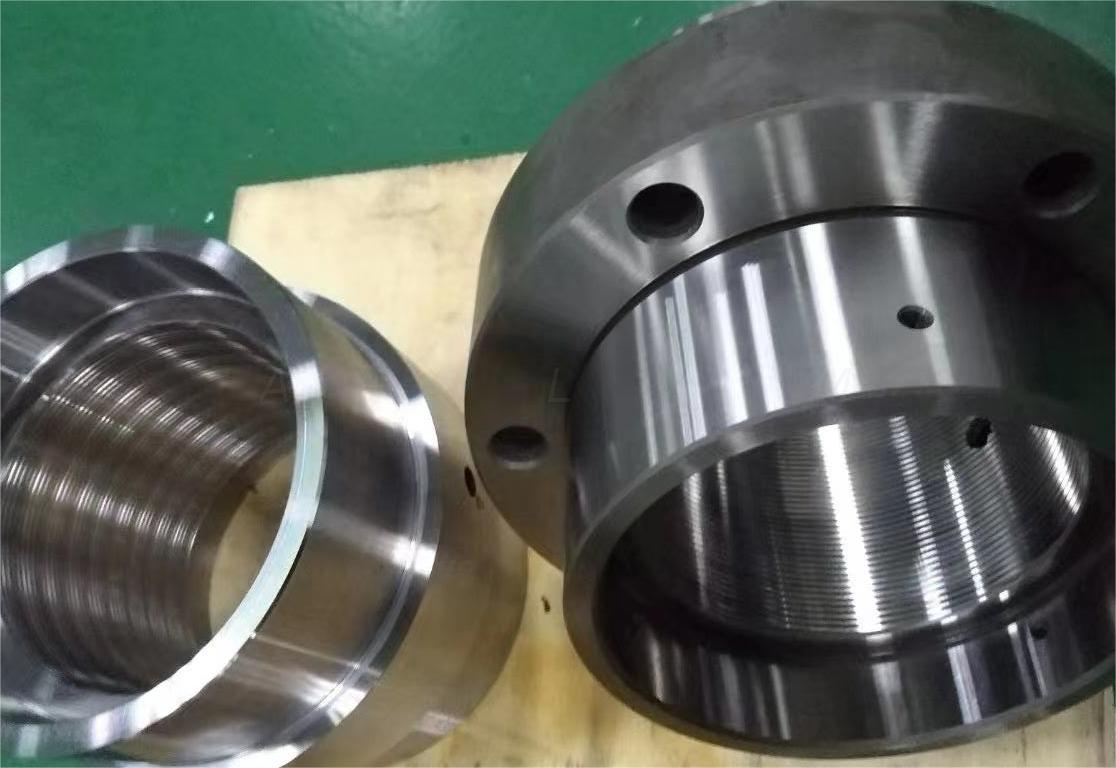

planetary roller screw planetary

key technology of planetary roller screw

ALM Planetary Roller Screw Dimension

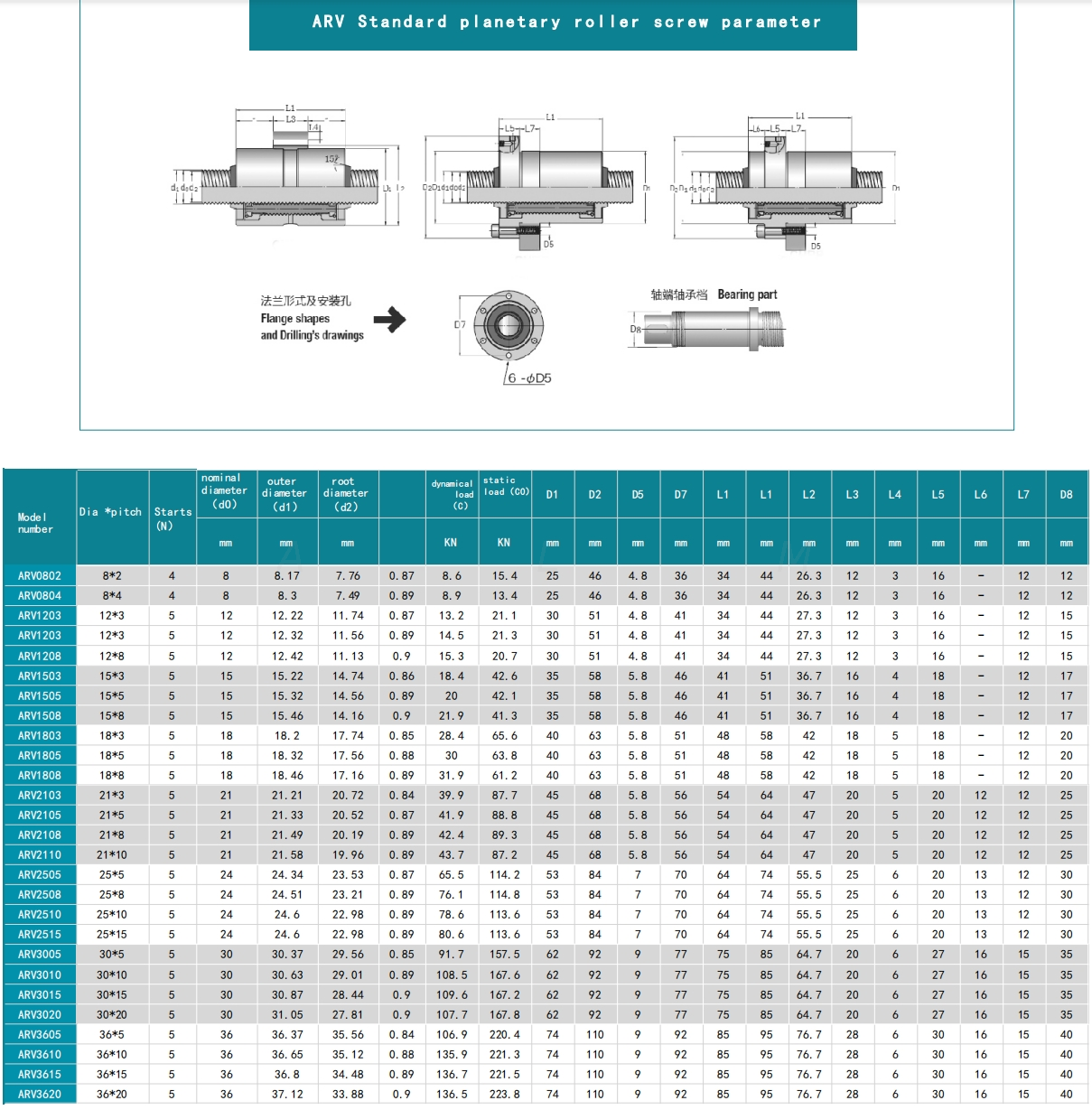

ARV standard planetary roller screw parameter

Planetary Roller Screw  Application

(1)Aerospace industry:Planetary roller screws are used in aircraft landing gear systems,flight control surfaces,and missile guidance systems.These applications require high precision and reliability to ensure safe and accurate operation.

(2)Industrial automation:Planetary roller screws are used in robotic arms,CNC machines,and other automated systems that require precise and repeatable motion control.The high load capacity of Planetary Roller Screws allows them to handle heavy loads while maintaining accuracy.

(3)Material handling:Planetary Roller Screws are used in conveyor systems,lifting equipment,and other material handling applications.These screws can handle heavy loads and provide precise positioning,making them ideal for moving and positioning heavy objects.
