Smooth Tr8x10 High Precision Trapezoidal Lead Screw with POM Nut

Excellent service
Quality assurance
Customized service
Fast delivery:5~10 days
Availability:
Quantity:
  • Tr8x10

  • ALM

  • 8483900090

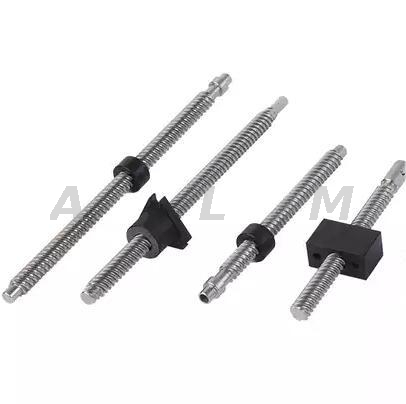

Smooth Tr8x10 High Precision Trapezoidal Lead Screw with POM Nut.The Lead Screw pitch is 2.5mm.The efficiency of the lead screw is usually between 20% and 80%.Highly dependent on the value of the helix angle.Helix angle is the arctangent of the lead divided by the pitch diameter.It is the angle of advance of the thread.Generally speaking,higher helix angle means higher efficiency.The higher the helix angle,the more efficient it is,because the less energy that drives the lead screw is used to overcome friction.This is because on a large screw,the number of times the screw must rotate to obtain a given linear displacement is lower.ALM focuses on lead screw manufacturing for more than 16 years.ALM lead screws are exported to 72 countries,deeply trusted by foreign customers.


Lead screw model Diameter 8mm,Lead 10mm,Pitch 2.5mm
Tr8x10 Lead screw material ASTM1045,SUS303,SUS304,SS316,SS316L
T8 Lead nut material Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEK,nylon,POK,Stainless steel,1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type)
8x10 Lead screw quality standard ISO2901-4,DIN103
8mm Lead screw clearance 7e,higher precision is available upon request
Lead Screw Parameter


A broad range of lead nuts are available,other nut type or size can be made upon drawing


When selecting the right nut for an application,there are a few things to keep in mind.Bronze nuts provide superior service at high working loads.They should be well lubricated with a good quality,Extreme Pressure(EP)grease compatible with the operating environment.Plastic nuts can be used without lubrication and are popular for low load applications.

ALM lead screw


Other ready lead screw models are available




lead screw dimension

Our Advantages
Free service Performance testing
Selection of auxiliary
Technical solution
Please contact the salesman for details

what you can get from ALM

Custom service

Stainless steel and other customized materials
Surface treatment
Custom lead nut and shaft end machining
Maintenance and assembly
Replace grease
Please contact the salesman for details
Lead Screw Applications

Lead screws are commonly used in instrument-level applications that require smooth,precise,clean,and maintenance-free operation.The nut material is usually made of an internally lubricated polymer.Some examples are laboratory and life science equipment,such as DNA sampling,scanning,and fluid handling equipment.Other applications include engraving,rapid prototyping,inspection and data storage.The lead screw can also be used for heavy lifting applications when used in conjunction with a metal(usually bronze)nut.The common application industry of the lead screw are shown in the figure below.


lead screw application


lead screw


Lead Screw Thread Types
  • T ISO Trapezoidal Thread Din103

    For transmission and position adjustment,widelyused in the mechanical industry.


  • H High-helix Screws

    A high-helix lead screw,speedy multi-start lead screw,or steep lead screw features a high pitch that is used to transform a smaller radial movement into a large axial movement.


  • M ISO Metric Thread (60°)

    The most common form of thread used for fastening and precision transmission.


  • A  ACME Thread (29°)

    Inch threads can also be used for fastening connections,but not for high accuracy.


  • R Knuckle Thread

    With the same arc thread as ball screw, the transmission is smoother.


  • G Gothic thread

    Gothic double arc thread,offering the advantages of ball screw,is similar a new kind of lead screw.


  • X Self-reversing thread

    A screw that makes the slide block reciprocate without changing the rotation direction of the spindle.


lead screw thread types

lead screw thread


ALM factory


ALM originally established in year of 2005.From a small factory,ALM nowadays has four production workshops for ball screw,lead screw,linear motor,linear actuator,linear guideways and related CNC machining parts for automation industry.Total areas over 7000 square meters,109 employees.Above 8 technical engineers are with over 20 years’ experience in linear motion filed.


ALM manufactures and supplies high quality linear motion components for customers in fields of aircraft, satellite,medical,Instrumentation,Robotics,Automobile,Electrical & Electronics,Textile,Medical,Food & Beverages,General Industry and so on.Customers cover more than 65 countries in Europe,North America,South Asia,Middle East,Africa,Latin America etc.With super quality and service,ALM has been widely recognized and highly valued by its high-end and picky customers, and thus remains at the top of their vendor lists.
