| Quantity: | |
|---|---|
Svck24 Svck28 Svck30
ALM
8479909090

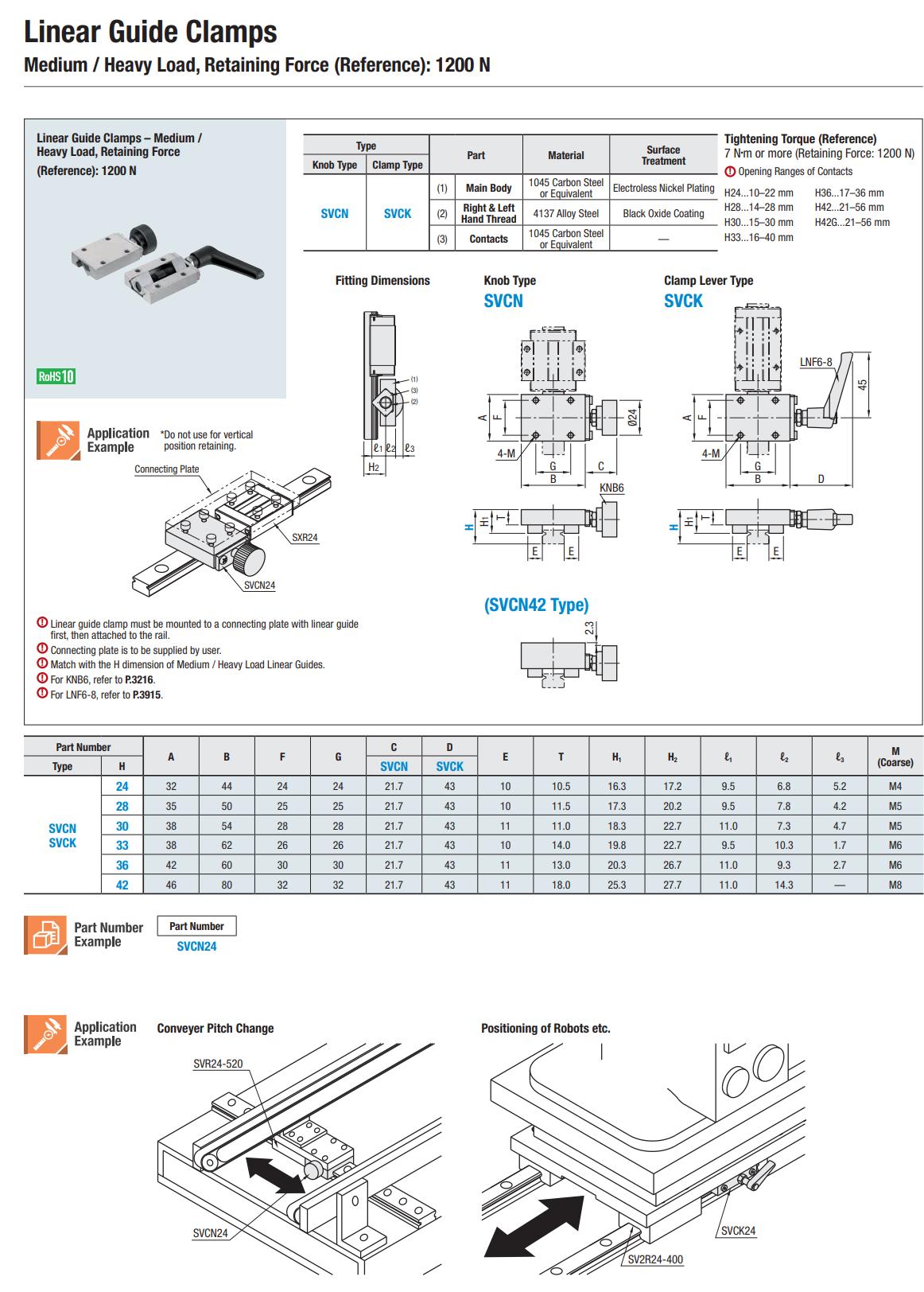

Svck24 Svck28 Svck30 Slide Guide Rail Blocks Clamping Element
Svck24 Svck28 Svck30 clamping elements are matched with the H dimensions of medium/heavy duty linear guides.We produce high quality rail clamps in the same size as MISUMI,and we also provide customized services.
| Type | Part | Material | Surface Treatment | ||
| Knob Type | Clamp Type | ||||
| SVCN | SVCK | ① | Main Body | 1045 Carbon Steel | Electroless Nickel Plating |
| ② | Right and Left Hand Thread | 4137 Alloy Steel | Black Oxide Coating | ||
| ③ | Contacts | 1045 Carbon Steel | |||
Svck24 Svck28 Svck30 Slide Guide Rail Blocks Clamping Element
Svck24 Svck28 Svck30 clamping elements are matched with the H dimensions of medium/heavy duty linear guides.We produce high quality rail clamps in the same size as MISUMI,and we also provide customized services.
| Type | Part | Material | Surface Treatment | ||
| Knob Type | Clamp Type | ||||
| SVCN | SVCK | ① | Main Body | 1045 Carbon Steel | Electroless Nickel Plating |
| ② | Right and Left Hand Thread | 4137 Alloy Steel | Black Oxide Coating | ||
| ③ | Contacts | 1045 Carbon Steel | |||
