T10x1 T10x1.5 T10x2 T10x3 T10x4 POM Nut Trapezoidal Lead Screw

Lead time:5~15
MOQ:1 piece
Lead screw shaft material: stainless steel/carbon steel

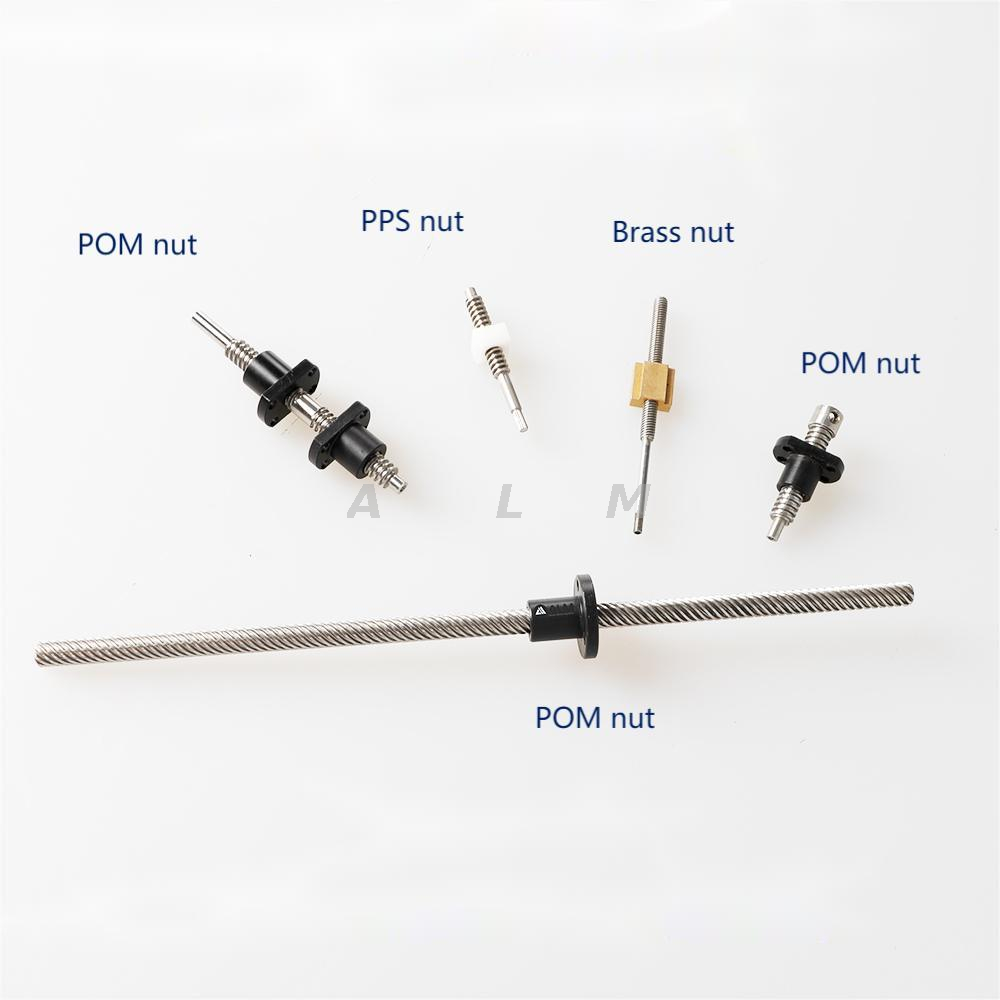

Nut material: POM Brass Bronze nylon
Availability:
Quantity:
  • T10x1 T10x1.5 T10x2 T10x3 T10x4

  • ALM

  • 8479909090

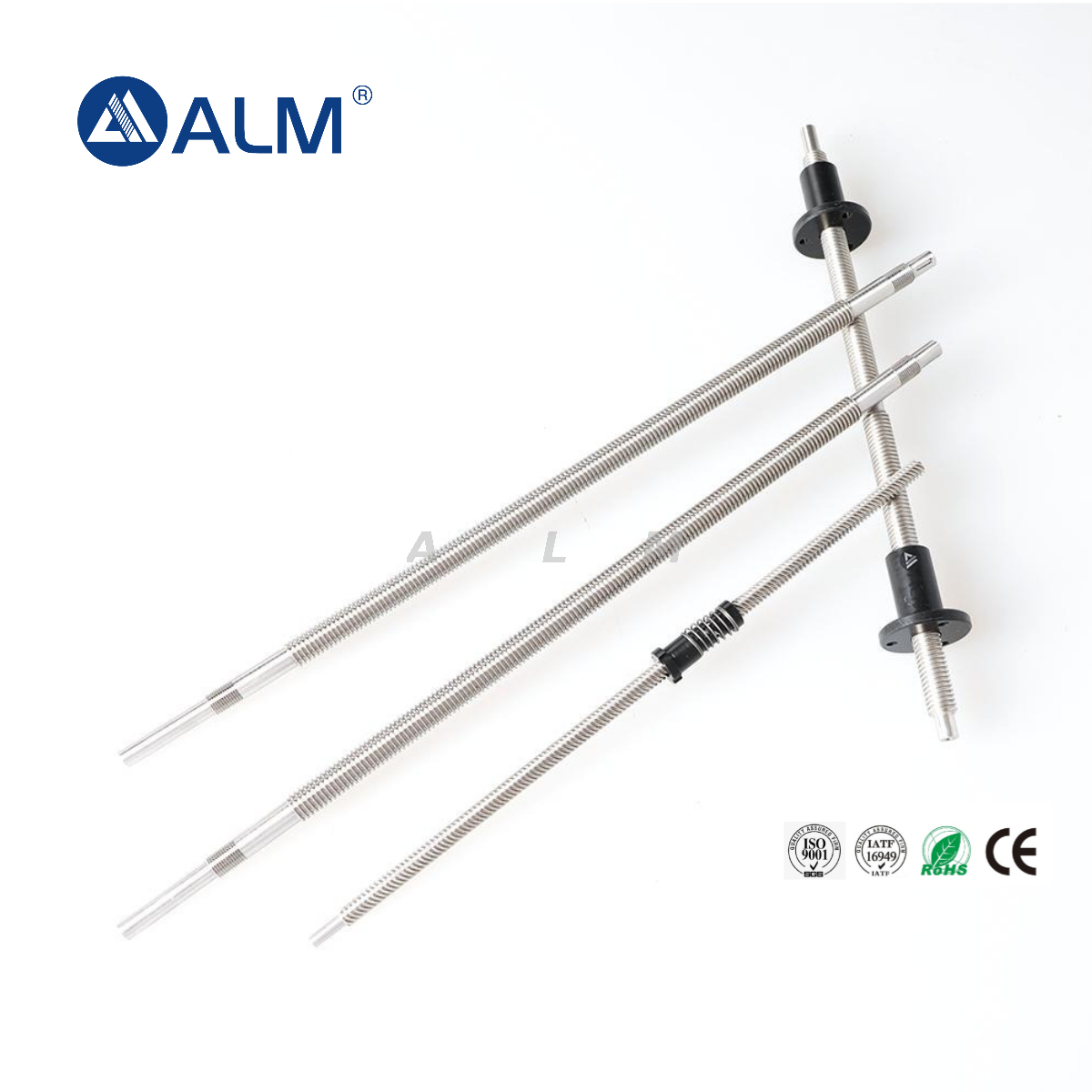

Trapezoidal lead screws are widely used in various industrial applications due to their exceptional precision and efficiency.Lead screws are designed to convert rotary motion into linear motion,making them ideal for a range of applications such as CNC machines,robotics,and automation systems.


ALM Lead Screw Basic Information

Available lead screw material

ASTM1045,SUS303,SUS304,SS316,SS316L

Available lead nut material

Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type)

Available surface coating

Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated

Quality standard ISO9001:2015,CE certificate,RoHS and reach compliance
Clearance 7e,higher precision is available upon request
Custom Services Customized nuts and end machining are available upon drawing


●ALM Lead Screw Video Show


Diameter 10mm Lead Screw Dimension

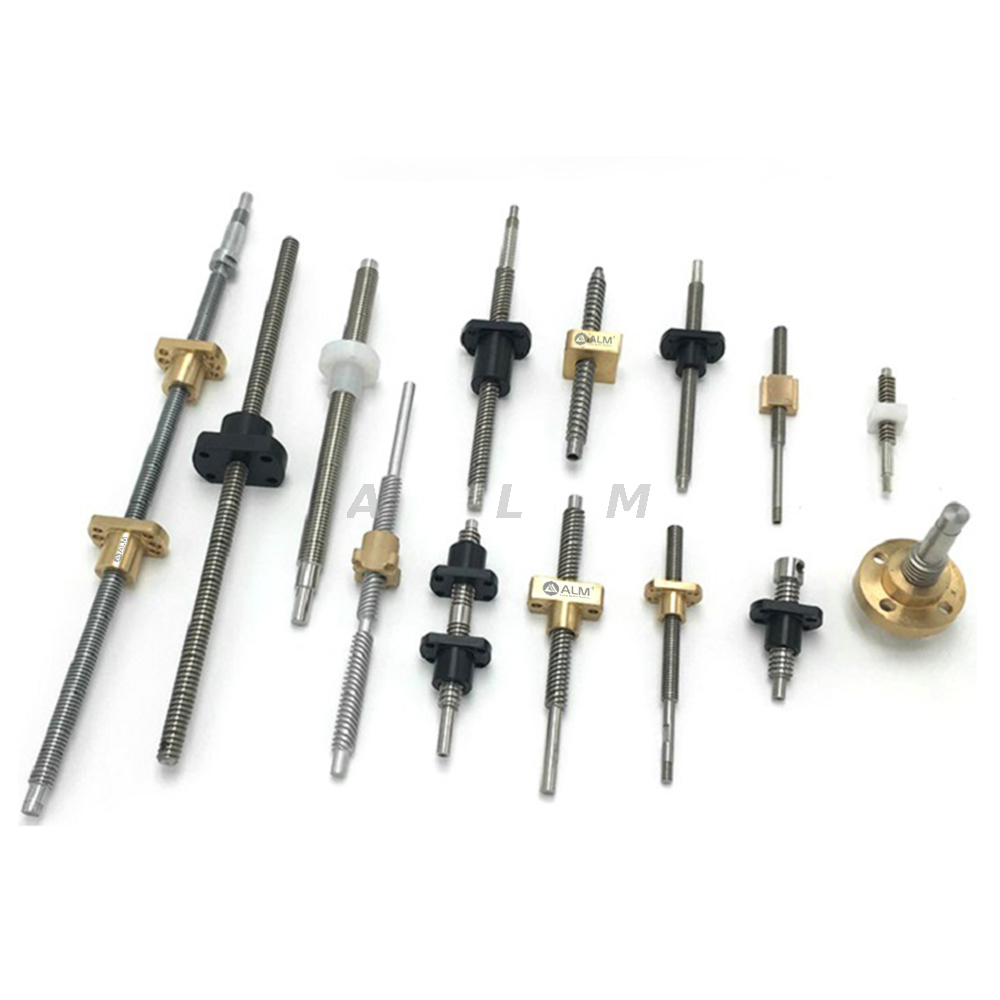

The model of diameter 10mm lead screw can be T10x1 T10x1.5 T10x2 T10x3 T10x4 T10x5 T10x6 T10x8 T10x10 T10x12 T10x14 T10x15 T10x16 T10x20 T10x25 T10x35.We support a variety of shaft end machining and nut customization. Refer to the catalog below for more lead screw model numbers.

Lead screw catalog-ALM.pdf

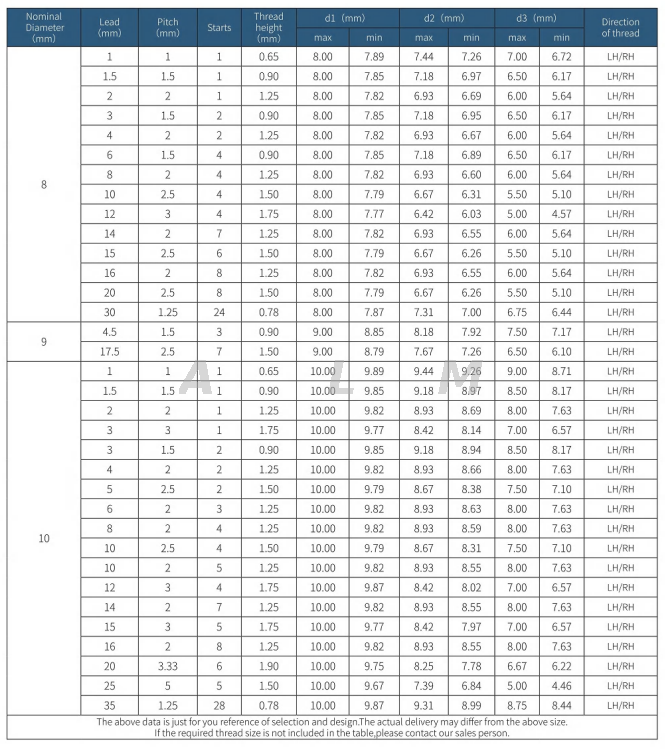

10mm lead screw sizes


Trapezoidal Lead Screw Applications

Trapezoidal screw can be used in various devices, such as CNC machines, 3D printers, robotics, and automation equipment. It is mainly used to convert rotational motion into linear motion, which is essential for precise positioning and movement of machine parts.

In CNC machines, trapezoidal screws are used to move the cutting tool along the X, Y, and Z axes, ensuring accurate and repeatable cuts. In 3D printers, they are used to move the print head and the build platform, allowing for precise layer-by-layer printing. In robotics, trapezoidal screws are used to control the movement of robot arms and grippers, enabling them to perform complex tasks with precision.

The main advantage of trapezoidal screws is their high efficiency and accuracy. They provide smooth and consistent linear motion, which is essential for precise positioning and movement of machine parts. They also have a high load capacity and can withstand heavy loads without deformation or damage. Additionally, trapezoidal screws are easy to install and maintain, making them a popular choice for many industrial applications.

ALM

Founded in year of 2005,from a small workshop KUNSHAN TIANHE BALL SCREW FACTORY,ALM group has grown fast and has four production workshops now for ball screw,lead screw,linear motor,linear actuator,linear guideways and related CNC machining.Factory area is over 15000 square meters,129 employees.Our factory is equipped with 15 automated production line.Products are 100% inspected before shipping.ALM has obtained ISO9001,IATF16949,CE,RoHS certificate. Over 25 distributors all over the world.


ALM manufactures and supplies high quality linear motion components for customers in fields of aircraft,satellite,medical, Instrumentation,Robotics,Automobile,Electrical & Electronics,Textile,Medical,Food & Beverages,General Industry and so on.With super quality and service,ALM has been widely recognized and highly valued by its high-end and picky customers,and thus remains at the top of their vendor lists.


ALM R&D Team

ALM R&D Team

ALM's office

ALM office

ALM's workshop

ALM workshop

ALM product processing

product processing

ALM inspection equipment

ALM Inspection EquipmentALM process machine


ALM's warehouse

ALM linear guideALM Product Show

various lead screw

ALM product show

ALM Exhibition

shanghai munich industry fairExhibition

Customer Visit

ALM customer visit



Patent Certificate for invention and utility model

seidal product certificate


ISO  Certificate



CE Certificate

ALM CE certificate


Excellent HighTech Enterprise

Excellent HighTech Enterprise


Leading Talents Certificate

ALM Leading Talents Certificate



1.Why can ALM be your better option for linear motion components?
●Nearly 20 years of rich manufacturing experience;

●We understand both electrical and mechanical issues. Can recommend good engineering design.

●Quality is guaranteed,We inspect everything, so you won't receive product that doesn't meet specifications. For some parts, we stock for the customer, You never have to wait.
●Easy to pay and can be trusted, We always respond to questions.
●We work on your time zone-You no need work through dinner and at night. Above all, our professional sales and after-service team ensure high efficiency communication to allow you high work efficiency and keep a good mood everyday.

2.When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.

3.About shipping and payment:
●Shipping
Sample order: We have DHL, FedEx, UPS VIP account with discount. So you can get favorable shipping freight.
Bulk order: We have freight forwarder to ship by air, by train or by sea. You can also arrange shipping through your own shipping agent.

●Payment
LC,T/T,D/P, PayPal, Western Union, Money Gram

4.How is quality ensured?
All our processes strictly adhere to ISO9001:2015 procedures. Combining advanced equipment, from production to delivery, we have strict quality control. Our company has strong technical support and has cultivated a group of managers who are familiar with product quality, good at modern concept of management. Our production concept is “Quality has to be caused, not controlled.”


5.How to custom-made (OEM/ODM)?

If you have a new product drawing or a sample, please send to us, we’ll make our production drawing and customize it as per your requirement. We can also provide our professional advices to make your design more realized and maximize the performance. So,If you didn’t find the ideal product from our website, please email us, your inquiry will get fast response.


6.What's your Delivery Time?

●Standard items: Ready in stock

●Customized items:7-20days

●For urgent case, We can make the delivery ASAP with guaranteed quality.
