SLT006
ALM
8483900090

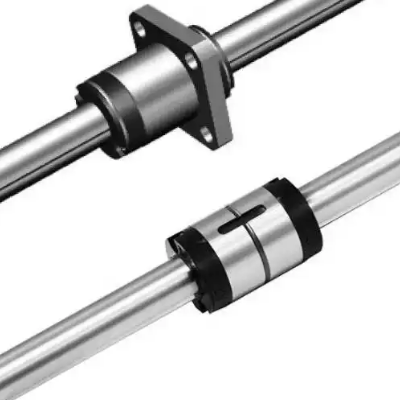

The SLT Cylindrical Type ball splines have a shaft diameter ranging from 6mm to 50mm.The ball spline nuts are designed with recirculating ball tracks which transmit torque linearly along the raceway of the spline shaft.These ball splines are suited for applications which are subject to vibration,impact loads,high precision,or high speed.
| Material | Bearing Steel,Stainless Steel |
Accuracy grade | N,H,P |
| Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
| Preload | P0,P1,P2 |
| Custom Services | Customized shaft end machining and surface treatment are available upon on requirements |
| Features of Ball Spline |
●Capable of highly accurate linear motion
Applying preload makes ball splines capable of highly accurate linear motion.
●Capable of transmission of torque
Rotary motion of balls on grooves of spline shaft makes ball spline capable of linear motion while transmitting torque.
●Capable of changing into compact design
Ability to transmit torque makes ball spline capable of guiding by single shaft.
●High load capability and long life
High load capacity and long running life due to presence of grooves of splines on the surface where loads are applied.
| Ball Spline Dimension |
| Our Advantages |
| Free service | Performance testing |
| Technical solution | |
| Please contact the salesman for details | |
Custom service | GCr15,Stainless steel and other customized materials |
| Surface treatment | |
| Custom shaft end machining | |
| Please contact the salesman for details | |
| Shipping and Payment |
●Shipping
Sample order:We have DHL,FedEx,UPS VIP account with discount.So you can get favorable shipping freight.
Bulk order:We have freight forwarder to ship by air,by train or by sea.You can also arrange shipping through your own agent.
●Payment
LC,T/T,D/P,PayPal,Western Union,Money Gram
Contact Us - ALM (autolinearmotion.com)
