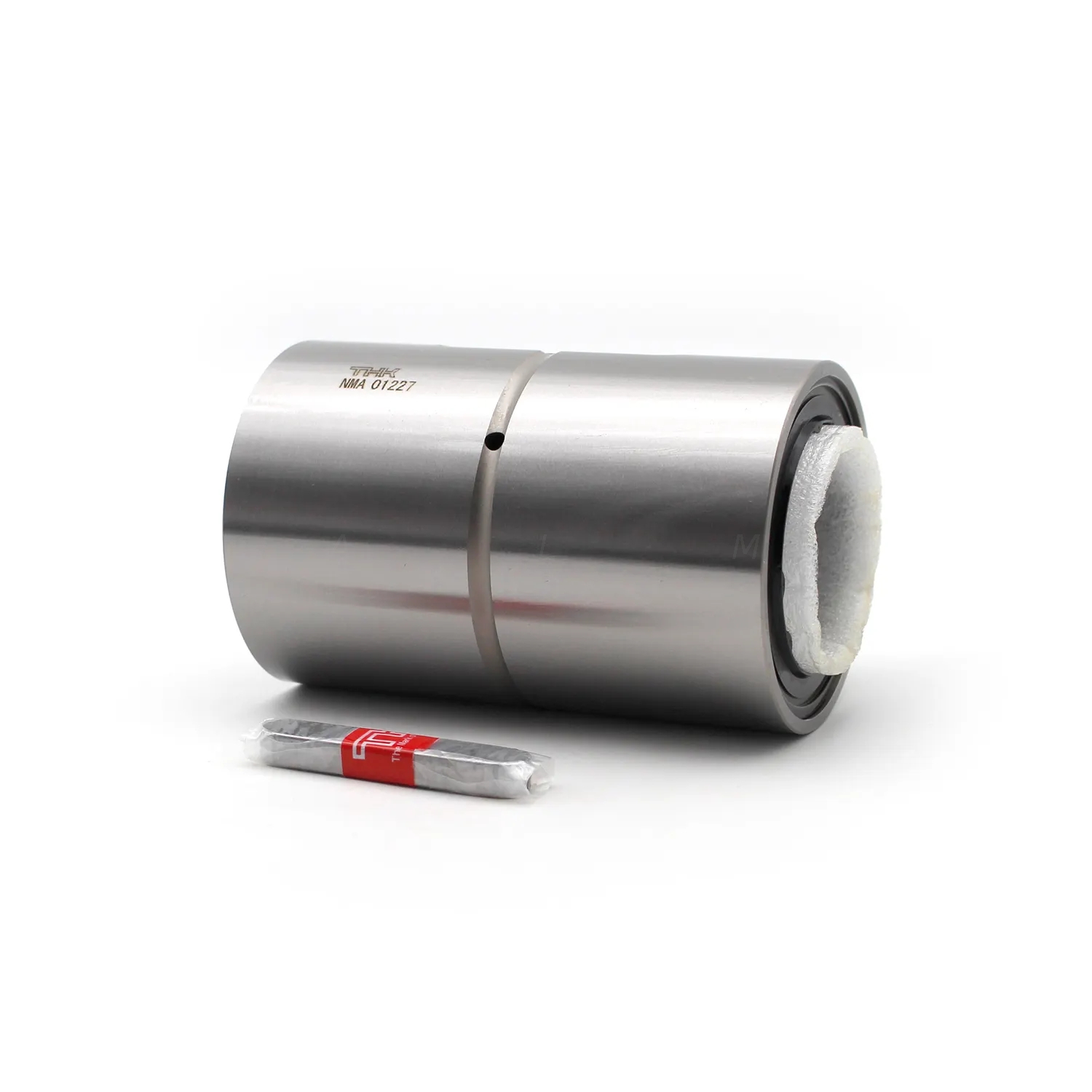

THK LT13 LT16 LT20 Linear Motion Ball Spline Nut Shaft

Lead time:5~10
MOQ:1 piece
high speed
zero backlash
  • LT13 LT16 LT20

  • ALM

  • 8479909090

The ball splines consist of a spline nut and a spline shaft.The spline nut has a series of grooves that contain precision balls.These balls enable the nut to move smoothly along the spline shaft,providing linear motion.

ALM Ball Spline Video Show


ALM Ball Spline Details Show

ball spline shaft

Lt4 Lt5 Lt6 Lt8 Lt10 Lt13 Lt16 Lt20 Lt25 Lt30 Lt40 Lt50 Lt60 Lt80 Lt100 Lt4uu Lt5uu Lt6uu Lt8uu Lt10uu Lt13uu Ball Spline Nut

THK Ball Spline LT4 LT5 LT6 LT8 LT10 LT13 LT16 LT20 LT25 LT30 LT40

Ball Spline Shaft Lt16uu Lt20uu Lt25uu Lt30uu Lt40uu Lt50uu Lt60uu Lt80uu Lt100uu Lbs15 Lbs20 Lbs25 Lbs30 Lbs40 Lbs50 Lbs70

Cylindrical Ball Spline Shaft Nut

Various Ball Splines Are Available From ALM

ALM ball spline

ball spline warehouse

ALM Ball spline

Ball spline

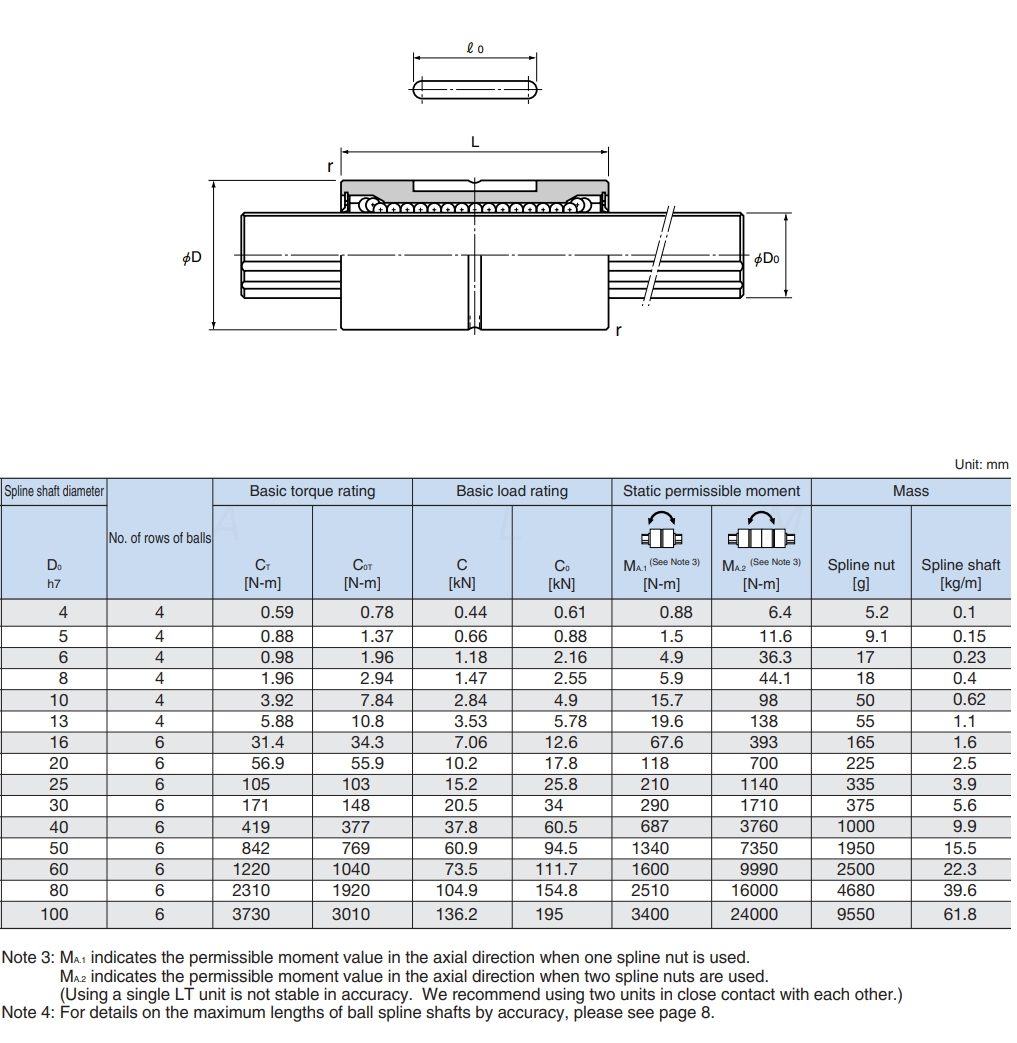

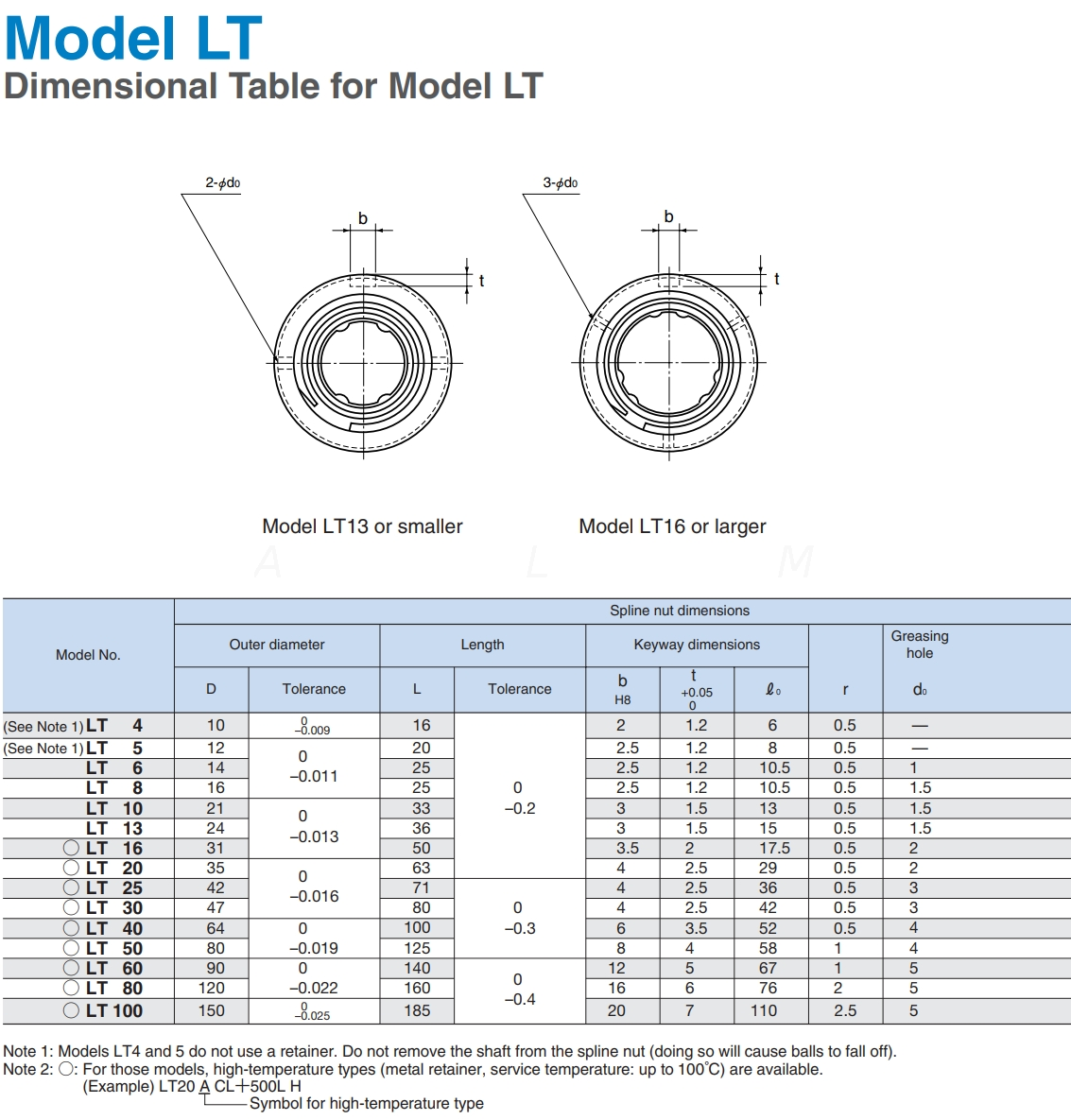

ALM Ball Spline Dimension

Ball spline dimensionLT Ball spline dimension

Ball Spline Advantages

1.High load capacity:Ball splines are designed to handle high loads,making them suitable for heavy-duty applications.

2.Smooth and precise motion:The
ball spline mechanism ensures smooth and precise linear motion,providing accurate positioning and reducing friction.

3.High rigidity:Ball splines offer high rigidity,ensuring minimal deflection even under heavy loads or in applications with high torque.

4.Compact design: Ball splines have a compact design,making them suitable for applications with limited space.

5.Easy installation and maintenance: Ball splines are easy to install and require minimal maintenance,reducing downtime and increasing productivity.

6.Long service life:The splines are designed to have a long service life,ensuring reliable performance over an extended period.
