0802.5 High Smooth Fast Delivery Rolled Ball Screw for Car Seat

SFK0802.5 ball screw made in China
Fast delivery:3~10 days
MOQ:1 PC
Material:
Gcr15 or SUS440C or stainless steel
Availability:
Quantity:
Inquire Add to Basket

  • 0802.5

  • ALM

  • 8483409000

0802.5 High Smooth Fast Delivery Rolled Ball Screw for Car Seat

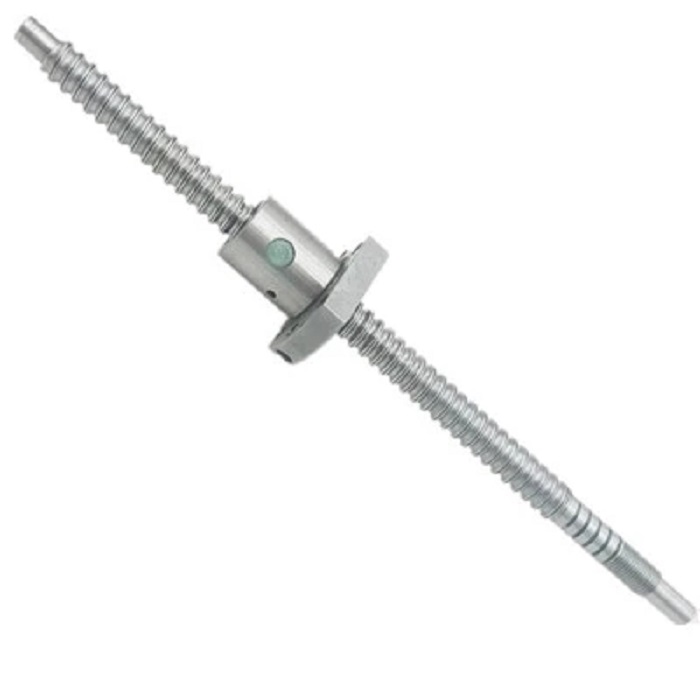

rolled ball screw 0802.5

SFK0802.5 ballnut dimensions

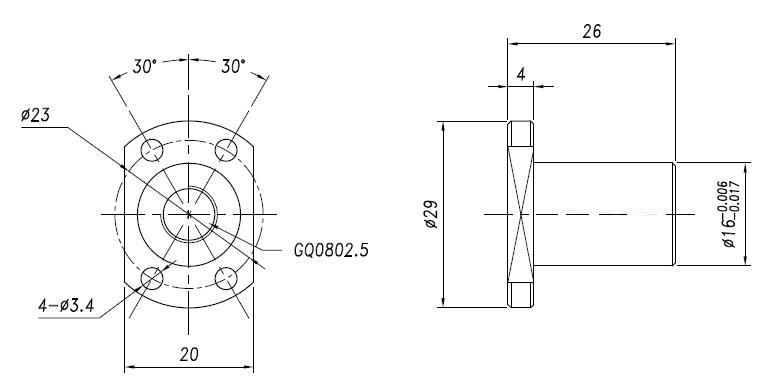

SFK0802.5 drawing

More standard items as following:

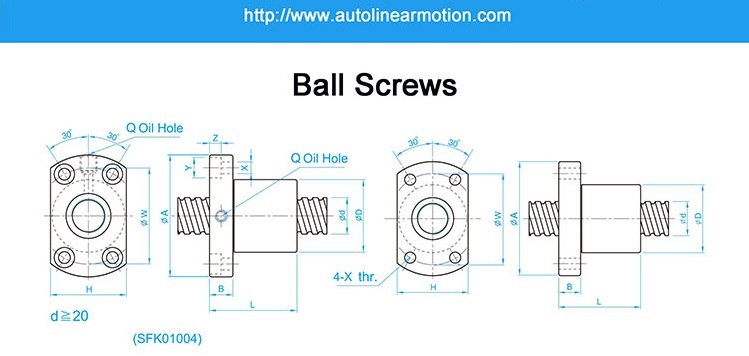

SFK ball screws catalog

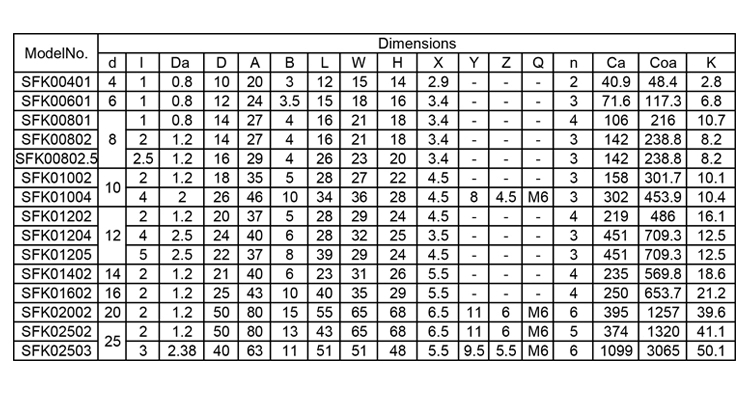

ALM SFK0802.5 ball screw

Unlisted items or custom ballnut is available upon drawing


Download a catalog:

ALM Ball screw catalog.pdf


Email us now for a quote!
