| Quantity: | |
|---|---|
0401
ALM
8483900090

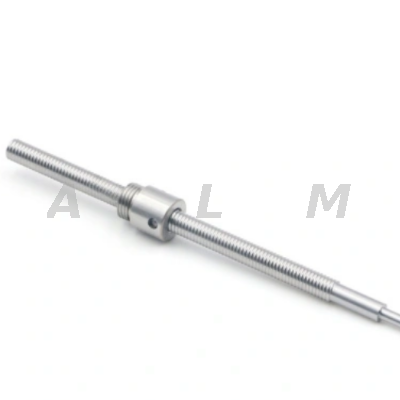

The Cylindrical type with M-thread at the Nut end.The nut should be mounted using M-thread.It is suitable for mounting with cylinder.
| Material | Gcr15(HRC60~62),9Cr18(HRC55~58) |
| Axial play | 0~0.005mm(Can be zero) |
| Preload | P0,P1,P2,P3,P4 |
| Efficiency | ＞90% |
| Accuracy grade | C1,C3,C5 |
| Features | Clean and smooth,excellent surface finsh |
| Certificates | ISO9001:2015,CE certificate,RoHS and reach compliance |
| MOQ | 1 piece |
| Lead time | 10~30 days. |
| Packing | Carton+Plastic bag + Wooden box or according to customers' demands |
| Mating parts | Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available |
| Ball Screw Video Show |
| Ball Screw Parameter |
| Our Advantages |
| Free service | Performance testing |
| Technical solution | |
| Please contact the salesman for details | |
| Custom service | Gcr15,9Cr18 and other customized materials |
| Surface treatment | |
| Custom ballnut and shaft end machining | |
| Assembly | |
| Please contact the salesman for details | |
| Ball Screw Application |
Ball screws are more suitable for applications requiring smooth motion,efficiency,precision,precision and long continuous or high speed motion.The following figure shows the common application of ball screw.
Medical device
Solar pannel
Packging and injection mold
Woodworking machine
Machine centre
| Micro Ball Screw Catalog Download |
Other micro ball screw models are available,kindly pls refer to the catalog below.
ALM micro ball screw C3 C5 C7-V2.pdf
