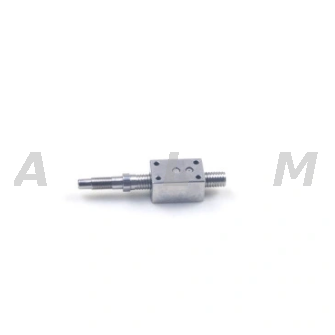

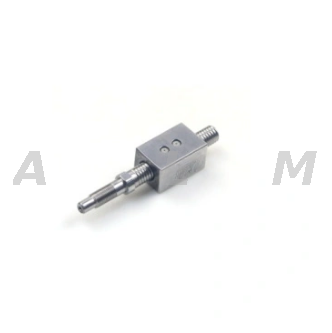

Space Saving Square Ballnut 0401 Custom Ball Screw

Excellent service
Quality assurance
Customized service
Fast delivery:10~30days
Availability:
Quantity:
  • 0401

  • ALM

  • 8483900090

The diameter of the ball screw is 4mm,the lead and pitch of the ball screw is 1mm.Square ballnut ball screws usually do not require ballnut seat.Square ballnut ball screw can be mounted on the workbench directly to save system space.ALM provides custom service,ball screws can be manufactured according to customer requirements.


Material Gcr15 or 9cr18
Accuracy grade  C3,C5,C7
MOQ

1 piece available for test

Delivery time

10~30 days.

Packing

Carton+Plastic bag + wooden box or according to customers' demands

Other models

0401, 0501, 0502, 0601, 0602, 0801, 0802, 0803, 0804, 0805 1001, 1002, 1003, 1004, 1201, 1202, 1203, 1204, 1205, 1210, 1402, 1403, 1404, 1405, 1602, 1603, 1604, 1605, 1608, 1610, 2002, 2003, 2004, 2005, 2006, 2010, 2020, 2502, 2503, 2504, 2505, 2510, 2512, 2525, 3205, 3206, 3208, 3210, 3212, 3216, 4005, 4008, 4010, 4012, 4016, 5005, 5010, 5012, 5016, 5020, 6310, 6312, 6316, 6320, 8010, 8016, 8020, etc

Mating parts

Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available

Notes:Above is part of standard models,other model or nut type is available upon drawing.For more information,pls contact the salesman.


Our Advantages
Free service Performance testing
Technical solution
Please contact the salesman for details

what you can get from ALM

Custom service Gcr15,9Cr18 and other customized materials
Surface treatment
Custom ballnut and shaft end machining
Assembly
Please contact the salesman for details


Ball Screw Application

Ball screws are more suitable for applications requiring smooth motion,efficiency,precision,precision and long continuous or high speed motion.The following figure shows the common application of ball screw.


medical device

Medical device

solar pannel

Solar pannel

packging and injection mold

Packging and injection mold

woodworking machine

Woodworking machine

滚珠丝杆应用machine centre and factory automation

Machine centre


ALM Micro Ball Screw Catalog Download

Other micro ball screw models are available,kindly pls refer to the catalog below.


ALM micro ball screw C3 C5 C7-V2.pdf


ALM


ALM originally established in year of 2005.From a small factory,ALM nowadays has four production workshops for ball screw,lead screw,linear motor,linear actuator,linear guideways and related CNC machining parts for automation industry.Total areas over 7000 square meters,109 employees.Above 8 technical engineers are with over 20 years’ experience in linear motion filed.


ALM manufactures and supplies high quality linear motion components for customers in fields of aircraft, satellite,medical,Instrumentation,Robotics,Automobile,Electrical & Electronics,Textile,Medical,Food & Beverages,General Industry and so on.Customers cover more than 65 countries in Europe,North America,South Asia,Middle East,Africa,Latin America etc.With super quality and service,ALM has been widely recognized and highly valued by its high-end and picky customers, and thus remains at the top of their vendor lists.


ALM key production machines are imported,like high precision CNC grinding machine,3 axis,4 axis machining centre,internal and external grinding centre,CNC lathe.In addition,with advanced production management,ALM obtained the quality certificate ISO9001:2008 and IATF16949.And through our R&D department dedication over 16 years,we possess more than 26 national patents.


ALM's office

ALM office

ALM's workshop

ALM workshop

ALM product processing

product processing

ALM's warehouse

ALM warehouse

Customer Visit

ALM customer visit

Patent Certificate for invention and utility model

seidal product certificate


ISO  Certificate




1.Why can ALM be your better option for linear motion components?

With more than 16 years of industry experience,quality assurance,factory directly price.


2.What is your main products ?

Our Main products are consist of ball screw,linear guide,lead screw,linear module and linear motor.


3.When can I get the quotation?

We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,please call us or tell us in your email so that we will regard your inquiry priority.


4.How to Custom-made?

custom ball screw
