Tr10×12.5
ALM
8479909090

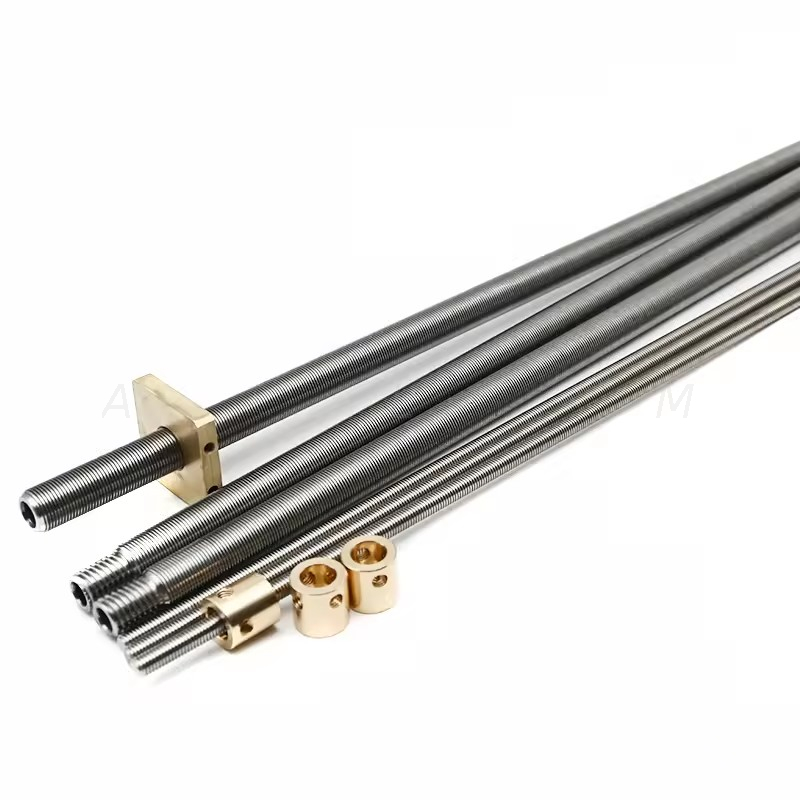

10mm Diameter Tr10×12.5 Trapezoidal Lead Screw with Bronze Nut
Tr10×12.5 trapezoidal lead screw diameter is 10mm,lead 12.5mm,pitch 2.5mm with 5 thread starts.The nut is made of high quality tin bronze,other nut materials such as PEEK,POM, brass,nylon are available.Lead screw and nut can be processed according to needs.
Diamter | 10mm |
Lead | 12.5mm |
Length | According to your needs |
Shaft end machining | Processing according to your requirements |
Nut shape and dimension | According to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Available screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated,molybdenum disulfide. |
Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
Clearance | 7e,higher precision is available upon request |
Lead accuracy | Can be 0.02mm/100mm |
Contact our sales staff to customize more lead screw details.
10mm Diameter Tr10×12.5 Trapezoidal Lead Screw with Bronze Nut
Tr10×12.5 trapezoidal lead screw diameter is 10mm,lead 12.5mm,pitch 2.5mm with 5 thread starts.The nut is made of high quality tin bronze,other nut materials such as PEEK,POM, brass,nylon are available.Lead screw and nut can be processed according to needs.
Diamter | 10mm |
Lead | 12.5mm |
Length | According to your needs |
Shaft end machining | Processing according to your requirements |
Nut shape and dimension | According to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Available screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated,molybdenum disulfide. |
Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
Clearance | 7e,higher precision is available upon request |
Lead accuracy | Can be 0.02mm/100mm |
Contact our sales staff to customize more lead screw details.
