Tr10x25
ALM
8483900090

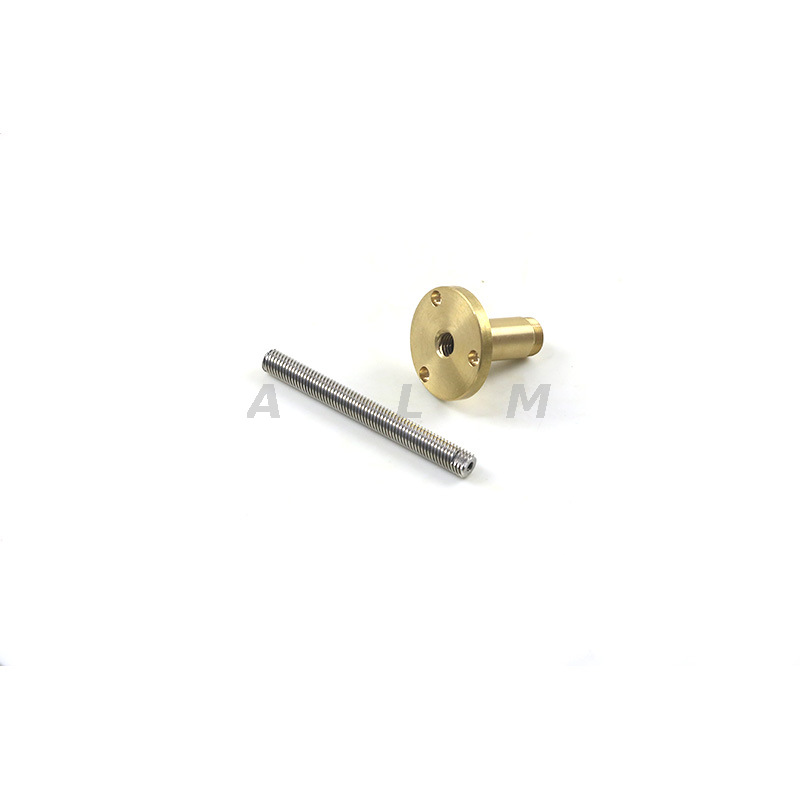

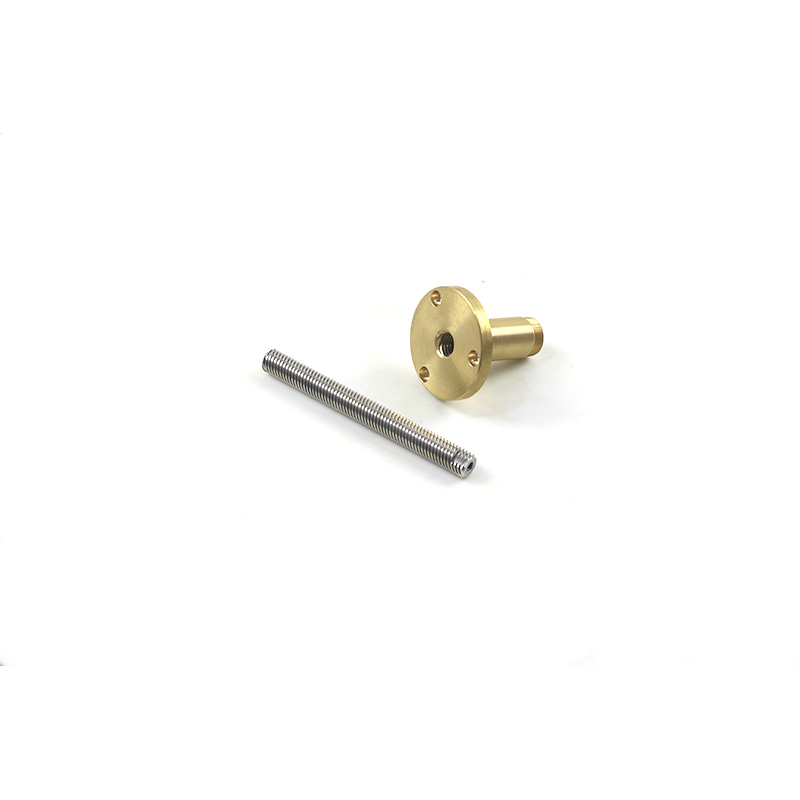

Diameter 10mm Lead 25mm Lead Screw Tr10X25. Lead Screw Tr10 is a miniature trapezoidal lead screw type.The diameter of the trapezoidal lead crew is 10mm and the lead of the trapezoidal lead screw is 25mm. The trapezoidal lead screw pitch is 3.125mm.ALM spent 16 years of research in the screw manufacturing field and eventually became the industry leader.ALM will use technology expertise and long-lasting quality for the new and old customer service.
Screw Material: ASTM1045, SUS303, SUS304, SS316, SS316L
Nut material: POM, Brass, Bronze, PTFE
Quality standard: ISO2901-4, DIN103
Clearance: 7e, higher precision is available upon request
| Thread type | Direction of thread | ||
| Code | Meaning | Code | Meaning |
| Tr | ISO trapezoidal thread(30°） | RH | Right Hand |
| A | ACME thread（29°） | LH | Left Hand |
| M | ISO Metric thread（60°） | RL | Bi-directional thread |
Feature: Non self locking,High surface smoothness,low friction,good straightness
Application: 3D printer, CNC router, medical machine, Semiconductor and LCD Production Equipment, Machine Tools and Injection Molding Machines, Semiconductor Manufacturing Equipment, Laboratory Equipment etc..
Packing and Delivery:In cartons or wooden cases
Sample order:DHL, FeDex, UPS VIP account with discount.So you can get favorable shipping freight.
Bulk order:Negotiated professional shipping agent by air or by sea.
