Tr11x5
ALM
8483900090

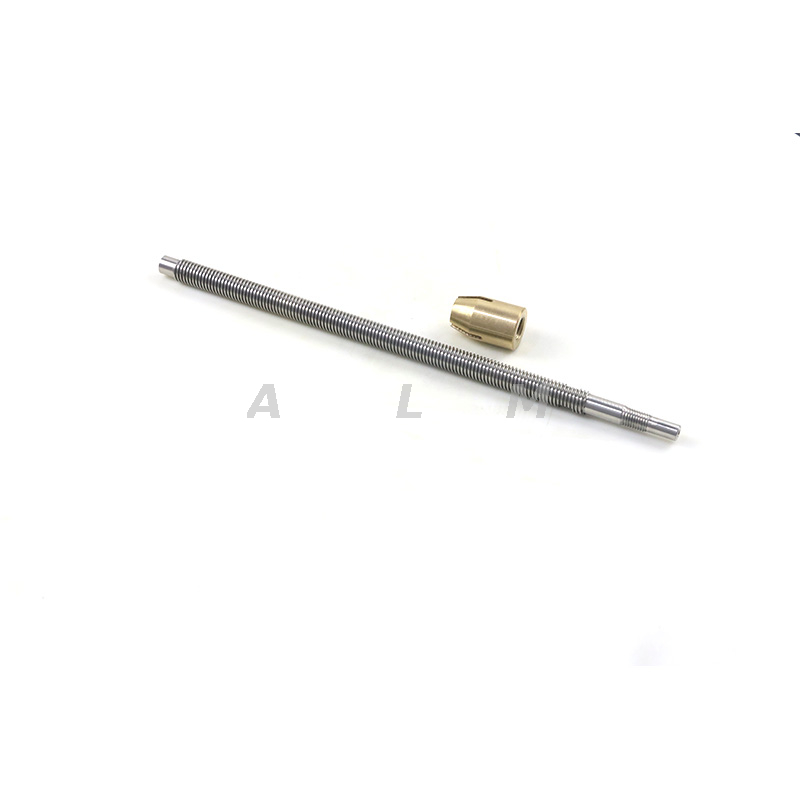

Diameter 11mm Lead 5mm Lead Screw Tr11X5. Lead Screw Tr11 is a miniature trapezoidal lead screw type.The diameter of the trapezoidal lead crew is 11mm and the lead of the trapezoidal lead screw is 5mm. The trapezoidal lead screw pitch is 2.5mm.ALM does extraordinary things with professional technology and a responsible attitude. ALM thanks our customers for their trust in us.
| Screw Material | ASTM1045, SUS303, SUS304, SS316, SS316L |
| Nut material | POM, Brass, Bronze, PTFE |
| Quality standard | ISO2901-4, DIN103 |
| Clearance | 7e, higher precision is available upon request |
| Thread type | Direction of thread | ||
| Code | Meaning | Code | Meaning |
| Tr | ISO trapezoidal thread(30°） | RH | Right Hand |
| A | ACME thread（29°） | LH | Left Hand |
| M | ISO Metric thread（60°） | RL | Bi-directional thread |
Feature: Non self locking,High surface smoothness,low friction,good straightness
Application: 3D printer, CNC router, medical machine, Semiconductor and LCD Production Equipment, Machine Tools and Injection Molding Machines, Semiconductor Manufacturing Equipment, Laboratory Equipment etc..
Packing and Delivery:In cartons or wooden cases
Sample order:DHL, FeDex, UPS VIP account with discount.So you can get favorable shipping freight.
Bulk order:Negotiated professional shipping agent by air or by sea.
