Tr14x3
ALM
8483900090

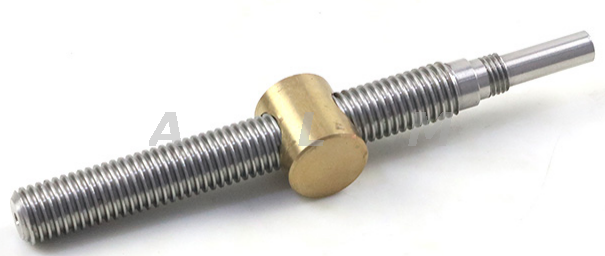

Diameter 14mm Lead 3mm Lead Screw Tr14X3.The diameter of the trapezoidal lead crew is 14mm and the lead of the trapezoidal lead screw is 3mm.The trapezoidal lead screw pitch is 3mm.ALM has been engaged in screw manufacturing for 16 years with outstanding screw product processing technology. ALM has a strong production capacity, sufficient supply, short delivery time and excellent after-sales service, which has won high praise from customers at home and abroad.
Available Material for screw | ASTM1045, SUS303, SUS304, SS316, SS316L |
| Material for nut | POM, Brass, Bronze, PTFE PEEK |
| Quality standard | ISO2901-4, DIN103 |
| Clearance | 7e |
What is the lead and pitch of lead screw?
Lead=pitch*starts
| Thread type | Direction of thread | ||
| Code | Meaning | Code | Meaning |
| Tr | ISO trapezoidal thread(30°） | RH | Right Hand |
| A | ACME thread（29°） | LH | Left Hand |
| M | ISO Metric thread（60°） | RL | Bi-directional thread |
A broad range of lead nuts are available,other nut type or size can be made upon drawing
Other ready models are available:
ALM lead screw Feature: Non self locking, High surface smoothness, low friction, good straightness, flexible production
Lead screw Application: 3D printer, CNC router, medical machine, Semiconductor and LCD Production Equipment, Machine Tools and Injection Molding Machines, Semiconductor Manufacturing Equipment, Laboratory Equipment etc..
Packing and Delivery:In cartons or wooden cases
Sample order:DHL, FeDex, UPS VIP account with discount.So you can get favorable shipping freight.
Bulk order:Negotiated professional shipping agent by air or by sea.
Inform us your requirement for a quote now!
