Tr16x2
ALM
8483900090

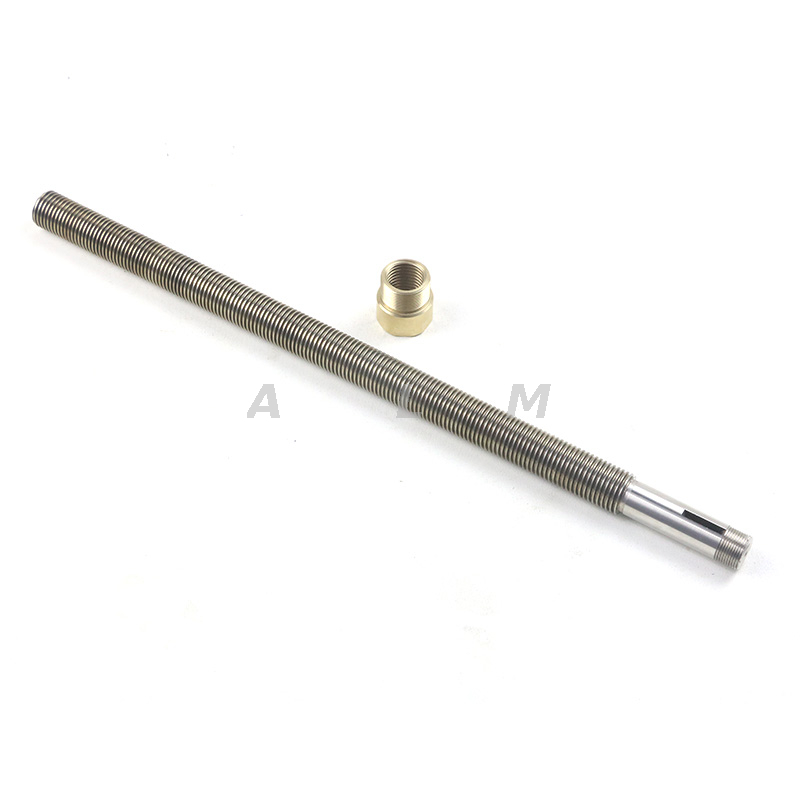

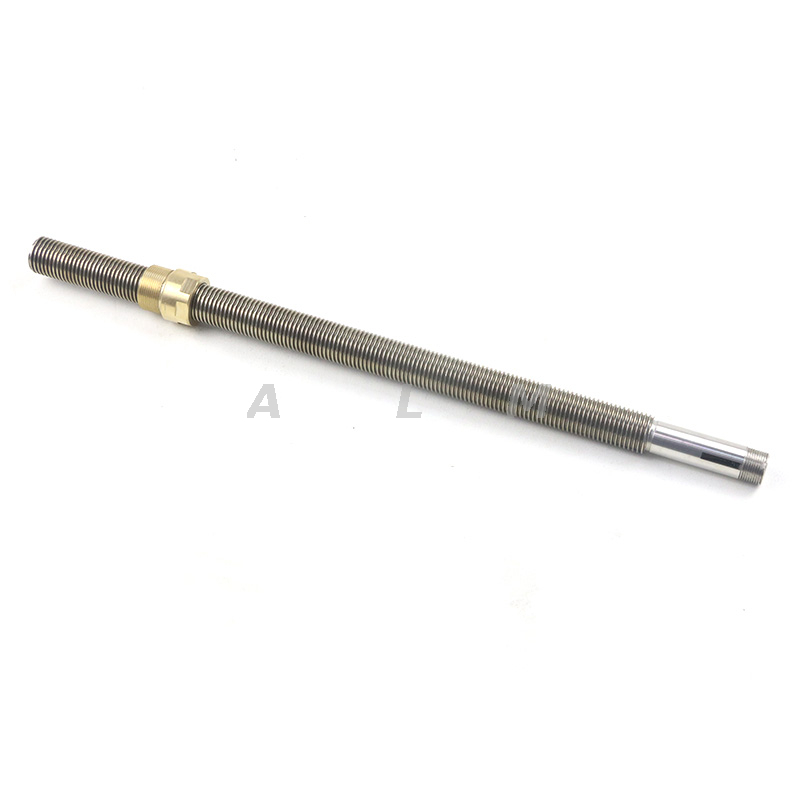

Diameter 16mm Lead 2mm Lead Screw Tr16X2. Lead Screw Tr16 is a miniature trapezoidal lead screw type.The diameter of the trapezoidal lead crew is 16mm and the lead of the trapezoidal lead screw is 2mm. The trapezoidal lead screw pitch is 1mm.From miniature to ultra-large sizes, ALM can offer standard off-the-shelf lead screws that provide ease of design and shorter lead times, as well as unique custom designs for demanding applications.
| Screw Material | ASTM1045, SUS303, SUS304, SS316, SS316L |
| Nut material | POM, Brass, Bronze, PTFE |
| Quality standard | ISO2901-4, DIN103 |
| Clearance | 7e, higher precision is available upon request |
| Thread type | Direction of thread | ||
| Code | Meaning | Code | Meaning |
| Tr | ISO trapezoidal thread(30°） | RH | Right Hand |
| A | ACME thread（29°） | LH | Left Hand |
| M | ISO Metric thread（60°） | RL | Bi-directional thread |
Feature: Non self locking,High surface smoothness,low friction,good straightness
Application: 3D printer, CNC router, medical machine, Semiconductor and LCD Production Equipment, Machine Tools and Injection Molding Machines, Semiconductor Manufacturing Equipment, Laboratory Equipment etc..
Packing and Delivery:In cartons or wooden cases
Sample order:DHL, FeDex, UPS VIP account with discount.So you can get favorable shipping freight.
Bulk order:Negotiated professional shipping agent by air or by sea.
