Tr16x3
ALM
8483900090

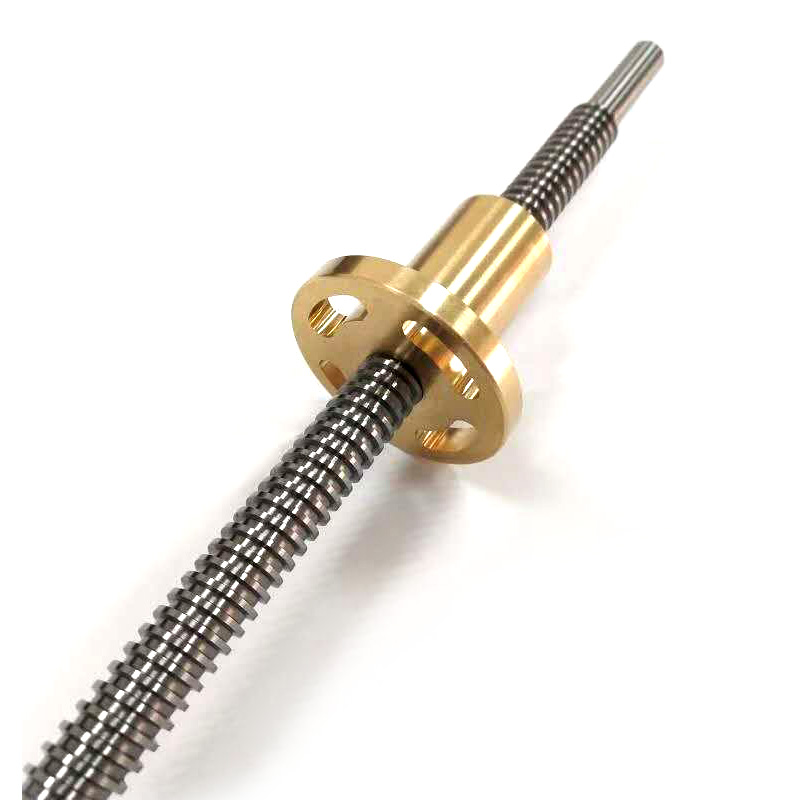

Diameter 16mm Pitch 3mm Trapezoidal Lead Screw Tr16x3
Model no:Tr16x3
Diameter:16mm, pitch 3mm, single start
Lead screw material:SUS304
Nut material:brass
Customized nuts and end machining are available upon drawing
Other Available Material for Screw: ASTM1045, SUS303, SUS304, SS316, SS316L
Material for nut: Brass, Tin bronze, Phosphor bronze, Aluminum bronze,
POM, PEK, nylon, Stainless steel, 1045, Zinc alloy, Brass+Plastic,
Aluminum alloy+Plastic, Brass+Steel, Self lubricating(No oil type)
ALM Quality standard: ISO2901-2016 ,DIN103,GB/T5796-1-2005
Clearance: 7e
What are lead screws?
A leadscrew is a power screw or transmission screw, a screw used as a linkage in a machine, to transfer rotating motion into linear motion. Because of the large area of sliding contact between lead nut and shaft, lead screw has larger frictional energy losses compared to ball screws.Anyway,lead screw has it's advantages.
What's ALM's lead screw advantages?
●ALM's rolled thread Trapezoidal screws and high performance Trapezoidal nuts are combined to provide the optimum performance.The highly burnished surface finish of the screw and low friction bronze and plastic nuts yield a smoother, less abrasive action than conventional cut Trapezoidal screws. Improved wear and surface properties insure the lead screw a longer service life and quieter operation, widely applied to a wide variety of applications.
●Most sizes of Trapezoidal screws are made in large volume and their widespread popularity makes them the least costly of all power screws.
●All Trapezoidal screws have lead angles of 5° or less making them self-locking. Trapezoidal screws will not backdrive under most conditions. This eliminates the need for brakes or other holding devices to sustain loads after positioned.
Trapezoidal lead screws and nuts are widely used and well suited for both manual and power drive applications including:
•Pharmaceutical machinery
•Packaging machinery
•Slide drives
•Metric valve stems
•Medical device drives
•Farm machinery
•Screw press drives
To learn more about lead screws,pls email us to get more files.
