SFU2510
ALM
8483401000

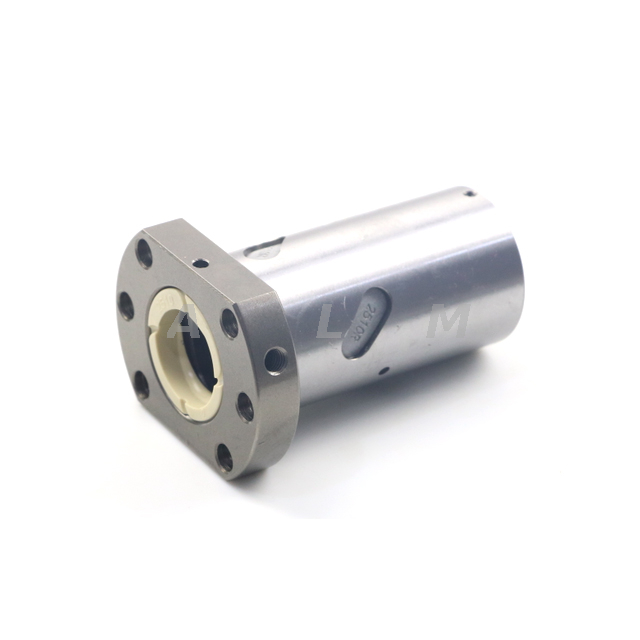

Diameter 25mm Lead 10mm Ball Screw SFU2510.ALM is a leading ball screw manufacturer focused on ball screw technology research for 16 years. With an excellent product quality and service attitude,ALM has been praised by domestic and foreign customers, and ALM ball screws have been exported to the United States, Canada, Germany, Italy and other countries.
| Material | Gcr15 or 9cr18 |
| Accuracy grade | C0 C1 C3 C5 C7 C10 |
| MOQ | 1 piece available for test |
| Delivery time | Samples 10~15 days, small order 20 days,bulk order 20~30 days. |
| Packing | Plastic bag + wooden box or according to customers' demands |
| Other models | 0401, 0501, 0502, 0601, 0602, 0801, 0802, 0803, 0804, 0805 1001, 1002, 1003, 1004, 1201, 1202, 1203, 1204, 1205, 1210, 1402, 1403, 1404, 1405, 1602, 1603, 1604, 1605, 1608, 1610, 2002, 2003, 2004, 2005, 2006, 2010, 2020, 2502, 2503, 2504, 2505, 2510, 2512, 2525, 3205, 3206, 3208, 3210, 3212, 3216, 4005, 4008, 4010, 4012, 4016, 5005, 5010, 5012, 5016, 5020, 6310, 6312, 6316, 6320, 8010, 8016, 8020, etc |
| Mating parts | Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available |
How a miniature ball screw works?
Ball Screws and lead screws are not interchangeable in many cases considering accuracy, stiffness and load capacity.
There are some differences between the application of ball screw and lead screws.
In some cases, life testing needs to be performed during the design phase,it can help you save project cost. Ball screws can run continuously, withstand much higher loads, and can be more fast.
The main difference between a ball screw and a lead screw is how the load is carried between moving surfaces. Ball screws use recirculating ball bearings to minimize friction and improve efficiency, while lead screw nuts rotate between sliding surfaces. Therefore, lead screws cann't achieve the same efficiency as ball screws(about 90%).
Although ball screws have a variety of advantages (load, stiffness, efficiency, duty cycle, predictability), they are costly.The ball screw nut design is more complex, requiring hardened precision bearing surfaces and a ball circulation device.
Ball screws are widely used for Medical equipment, Implantable Pump,micro robot,Miniature lens actuator, Optics & Photonics,Guidance system,Miniature lens actuator, Pick & Place, Laboratory equipment, Fin actuator, Guidance system etc.
While,lead screw nut is very compact , the design is very flexible, the noise is very small under the condition of proper operation, and the corrosion resistance is good. The self-locking function can be configured to meet the vertical application requirements. They play an important role in many application areas, such as Pharmaceutical machinery,Packaging machinery,Slide drives, Metric valve stems ,Medical device drives,Farm machinery,Screw press drives.
To Briefly Recap
When you Choose Ball Screws,key factors are:
1.High loads with high speeds
2.Constant Cycling
3.High precision
When you Choose Lead Screws,key factors are :
1.Low cost requirements
2.ositioning applications
3.Applications where lubrication is a detriment
Email or call us for a quote now!
