Tr10x3
ALM
8483900090

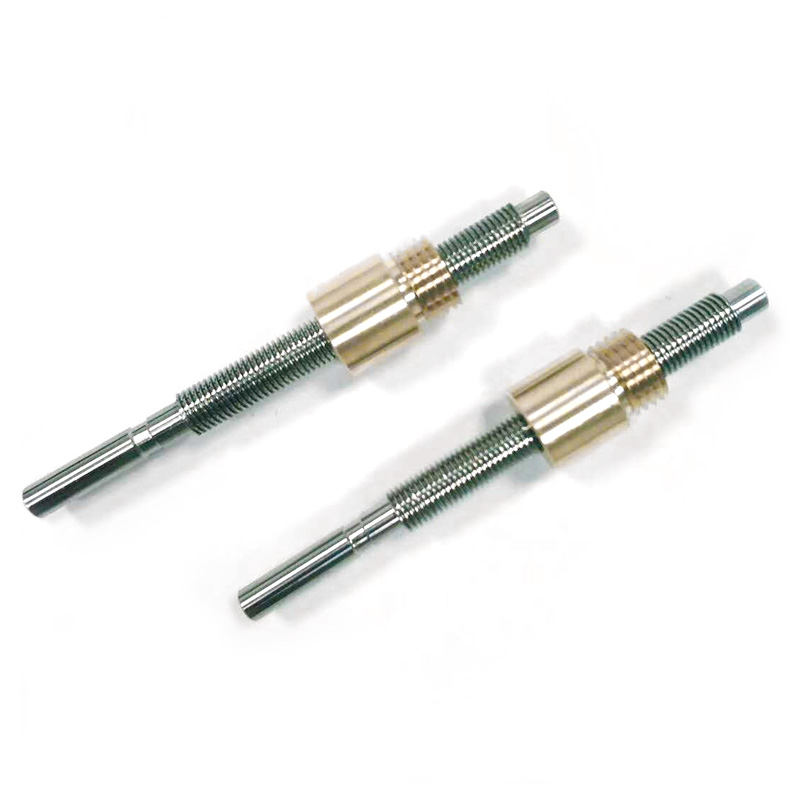

Super Quality Smooth Trapezoidal Screw Tr10x3 Lead Screw
Model no:Tr10x3
Diameter:10mm, pitch 3mm
Material:SUS304
Nut material:brass
Customized nuts and end machining are available upon drawing
ALM Quality standard: ISO2901-2016 ,DIN103,GB/T5796-1-2005
Clearance: 7e
Design Considerations
Most applications can be satisfied by selecting from ALM stock sizes listed. However, OEM may find an optimum design solution requiring a special size or special features such as stub series threads, special diameter and lead combinations, multiple start thread, etc. For these applications, ALM is uniquely qualified with over 15 years of experience in serving the OEM market. Extensive tooling and software resources can be utilized to assist the OEM designer in finding the very best metric solution for any application. Contact ALM Application Engineering for more details.
Nut Selection
When selecting the right nut for an application, there are a few things to keep in mind. Bronze nuts provide superior service at high working loads. They should be well lubricated with a good quality, Extreme Pressure (EP) grease compatible with the operating environment. Plastic nuts can be used without lubrication and are popular for low load applications.
Other Available Material for Screw: ASTM1045, SUS303, SUS304, SS316, SS316L
Material for nut: Brass, Tin bronze, Phosphor bronze, Aluminum bronze, POM, PEK, nylon, Stainless steel, 1045, Zinc alloy, Brass+Plastic, Aluminum alloy+Plastic, Brass+Steel, Self lubricating(No oil type)
Available surface coating:Zinc-plated, nickel plated, hard chromium plated, fluorine coated,tungsten disulfide, black chorme plated etc.
Trapezoidal lead screws and nuts are widely used and well suited for both manual and power drive applications including:
•Pharmaceutical machinery
•Packaging machinery
•Slide drives
•Metric valve stems
•Medical device drives
•Farm machinery
•Screw press drives
To get more technical files,email to us now!
