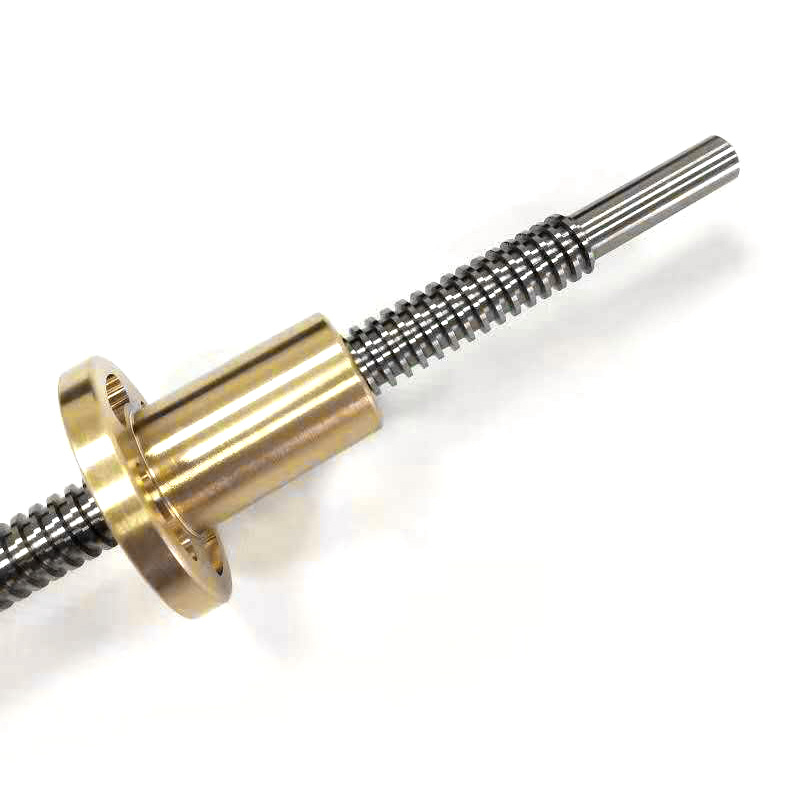

Tr16x4 Right Hand Thread Trapezoidal Lead Screw
Model no:Tr16x4
Diameter:16mm, pitch 4mm, single start
Material:SUS304
Nut material:brass
Customized nuts and end machining are available upon drawing
ALM Quality standard: ISO2901-2016 ,DIN103,GB/T5796-1-2005
Clearance: 7e
Materials and Processes
All Trapezoidal lead screws, 45 mm in diameter and larger, are made of special quality medium carbon steel. Screws smaller than 45 mm are made from special quality low carbon steel. Alternate screw materials are 304 type stainless steel, alloy steels, high machinability grades of carbon steel and aluminum alloys.
Trapezoidal lead screws are cold formed using a unique, highly accurate thread rolling process which guarantees a smooth, high quality thread. ALM's thread rolling process eliminates the interrupted grain flow of conventional cut threads, thereby increasing yield, ultimate, and fatigue strengths.
Transmission Screw thread types
| Thread Types | Features |
| Trapezoidal thread | T ISO Trapezoldal Thread:For transmission and posltion adjustment, wldely used In the mechanical Industry. |
| Metric thread | M ISO Metric Thread (60° ):The most common form of thread used for fastening and precislon transmission. |
| ACME thread | English threads can also be used for fastening connectlons,but not for high accuracy |
| Round thread | Wlth the same arc thread as ball screw, the transmission is smoother. |
| Goethe thread | Gothic double arc thread,drawing the advantages of ball screw, is the new products. |
| Reclprocating thread | X Reclprocating thread:A screw that makes the slldle block reclprocate without changing the rotation direction of the spindle. |
Trapezoidal lead screws and nuts are widely used and well suited for both manual and power drive applications including:
•Pharmaceutical machinery
•Packaging machinery
•Slide drives
•Metric valve stems
•Medical device drives
•Farm machinery
•Screw press drives
To learn more about lead screws,pls email us to get more files.
