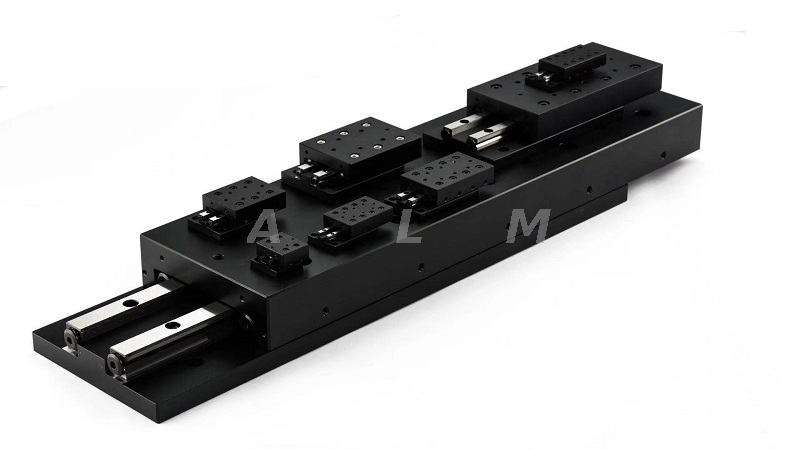

VRT-A Series Cross Roller Table

A complete selection of cross roller tables from VRT1025A to VRT3205A
  • VRT-A series

  • ALM

  • 8479909090

VRT-A Series Cross Roller Table

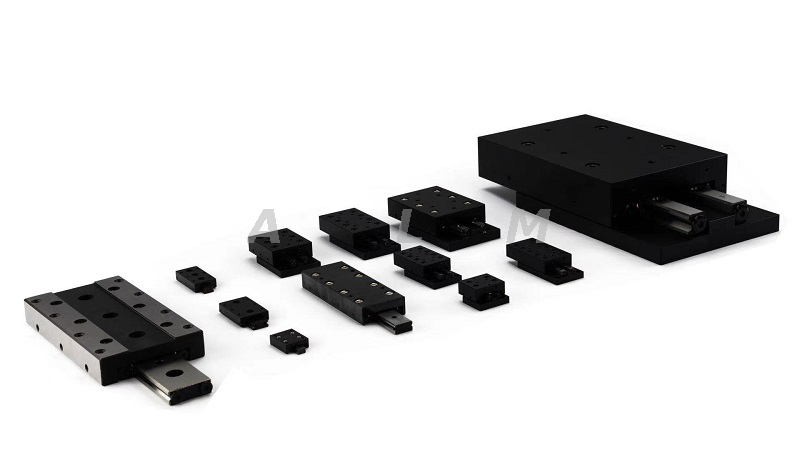

VRT-A Series Cross Roller Table (2)

Model VRT-A Miniature Type (Counter Bore Hole Base Type)

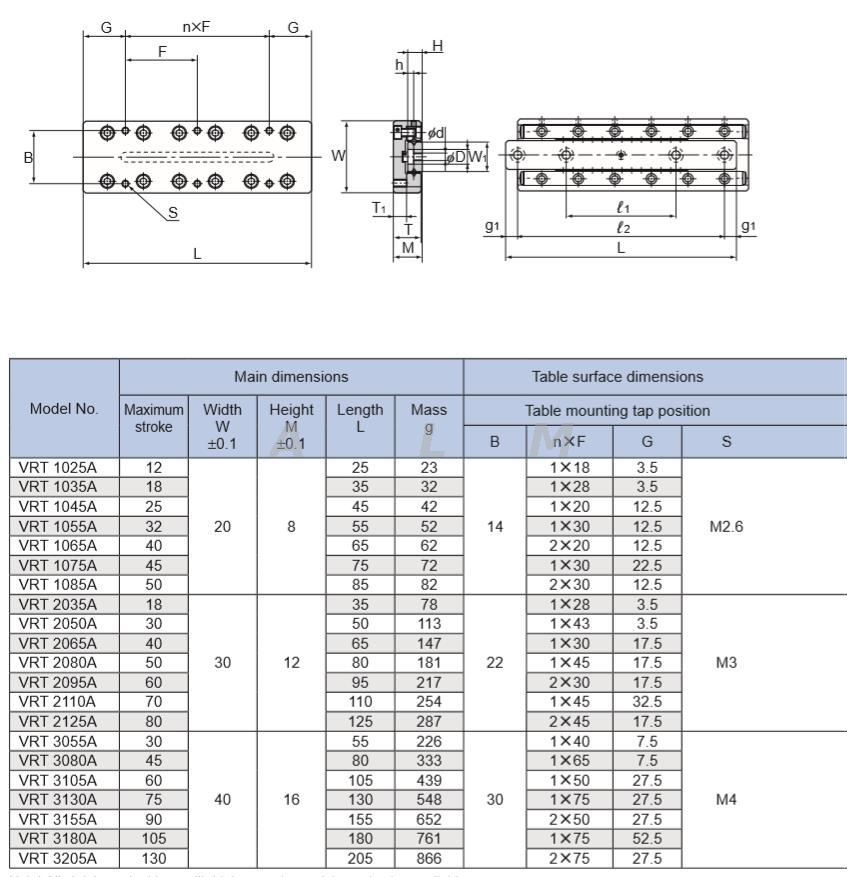

cross roller table dimensions

cross roller tables specification

ALM cross roller table features:

Easy Installation

Since the Cross Roller Guide(s) is installed between the precision-machined table and base, a highly accurate linear guide mechanism is achieved simply by mounting the product with bolts.

Large Permissible Load

Rollers with large rated loads are installed in short pitches, the cross roller guide is capable of bearing a heavy load, achieving a highly rigid linear guide mechanism and gaining a long service life.

China made cross roller guidesMade in China cross roller guides

Diversified Usage

Since the rollers are orthogonally arranged one after another, the guide system is capable of evenly receiving loads in the four directions applied on the table. (See  Fig.2. )

Highly Corrosion Resistant

The base and the table of models VRT-M and VRT-AM use stainless steel. Their rails, rollers, roller cages and screws are also made of stainless steel. As a result, these guide systems have signifi cantly high corrosion resistance. The base and the table of model VRU-M are made of aluminum.

Cross roller linear guides production and quality detection

How cross roller linear guide is produced

ball bearing factory made in China

Download a PDF catalog of ALM VRT-A cross roller tables:

VRT-A cross roller guides catalog-ALM.pdf
