1402
ALM
8483900090

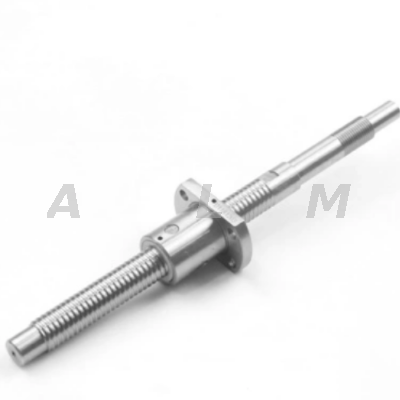

Get the best performance and accuracy by using our precision 1402 miniature ball screws.Designed to provide smooth and reliable motion control,our ball screws are ideal for a wide range of industrial applications.Our ball screw can replace KSS,THK,PMI,HIWIN,TBI,Eichenberger ball screw.
Material | Gcr15(HRC60~62),9Cr18(HRC55~58) |
Axial play | 0~0.005mm(Can be zero) |
Preload | P0,P1,P2,P3,P4 |
Efficiency | >90% |
Accuracy grade | C1,C3,C5,C7 |
Features | Clean and smooth,excellent surface finsh |
Certificates | ISO9001:2015,CE certificate,RoHS and reach compliance |
MOQ | 1 piece |
Lead time | 10~30 days. |
Packing | Carton+Plastic bag + Wooden box or according to customers' demands |
Mating parts | Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available |
Notes:Other model or ballnut types are available upon your requirement.
ALM Ball Screw Video Show |
Our Advantages |
Free service | Performance testing |
Technical solution | |
Please contact the salesman for details |
Custom service | Gcr15,9Cr18 and other customized materials |
Surface treatment | |
Custom ballnut and shaft end machining | |
Assembly | |
Please contact the salesman for details |
Ball Screw Dimension |
Ball Screw Application |
ALM Ball screws are used in various applications where precise linear motion,high speed,and high accuracy are required.Our ball screws provide a reliable and efficient solution for many industrial and commercial applications.The following pictures show the common application of our ball screw.
Medical device
Solar pannel
Packging and injection mold
Woodworking machine
Machine centre
Shipping and Payment |
●Shipping
Sample order:We have DHL,FedEx,UPS VIP account with discount.So you can get favorable shipping freight.
Bulk order:We have freight forwarder to ship by air,by train or by sea.You can also arrange shipping through your own agent.
●Payment
LC,T/T,D/P,PayPal,Western Union,Money Gram
Ball Screw Catalog Download |
Other ball screws are available,kindly please refer to the catalog below.If you don't find the ball screw you need,please email us.We can manufacture the ball screw according to your drawing.
