| Quantity: | |
|---|---|
0401
ALM
8483401000

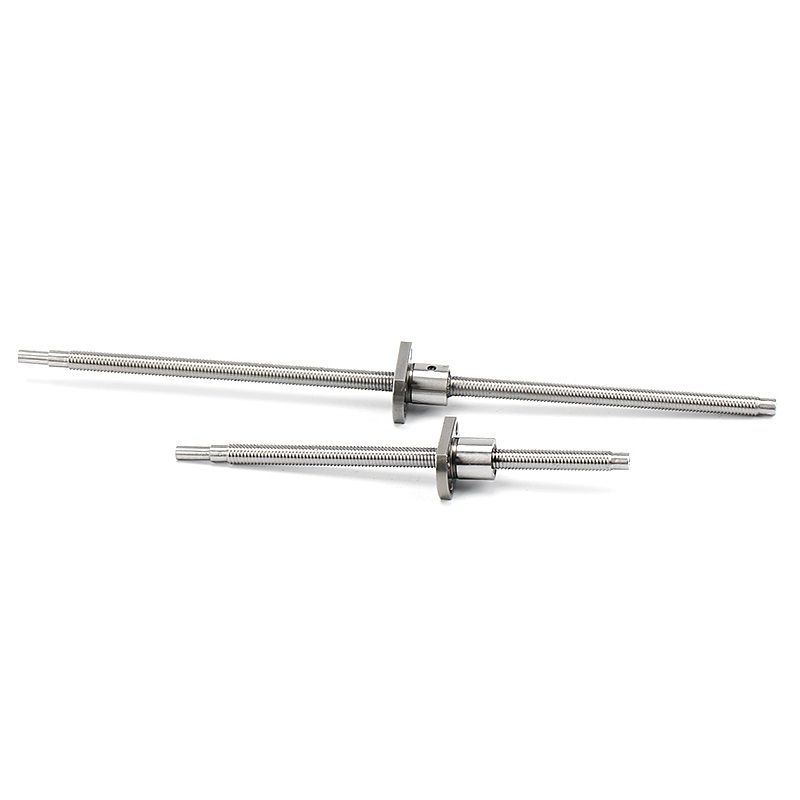

Diameter 4mm Pitch 1mm Rolled Ball Screw 0401
| Material | Gcr15 or 9cr18 |
| Accuracy grade | C3 C5 C7 |
| MOQ | 1 piece available for prototype |
| Delivery time | Samples 10~15 days, small order 20 days,bulk order 20~30 days. |
| Packing | Plastic bag + wooden box or according to customers' demands |
| Other models | 0401, 0501, 0502, 0601, 0602, 0801, 0802, 0803, 0804, 0805 1001, 1002, 1003, 1004, 1201, 1202, 1203, 1204, 1205, 1210, 1402, 1403, 1404, 1405, 1602, 1603, 1604, 1605, 1608, 1610, 2002, 2003, 2004, 2005, 2006, 2010, 2020, 2502, 2503, 2504, 2505, 2510, 2512, 2525, 3205, 3206, 3208, 3210, 3212, 3216, 4005, 4008, 4010, 4012, 4016, 5005, 5010, 5012, 5016, 5020, 6310, 6312, 6316, 6320, 8010, 8016, 8020, etc |
| Mating parts | Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available |
What is a ball screw?
Ball screw assembly is consisted of screw, nut and ball. The function is transfer the rotary motion into linear motion or transfer the linear motion into rotary motion. This is further extension and development of slide ball screw. The important significance of development is as same as change of bearing from rolling motion to sliding motion. Because of excellent friction function, ball screw is widely used for all kinds of industrial equipments and precision instrument.
How a ball screw works?
The advantages of ball screw vs. lead screw
1. High transfer efficiency
Balls with free motion in the ball screw assembly transfer the force and motion between screw and nut. This transfer mode replaces the traditional transfer mode that screw shaft and nut effect directly. Therefore the minimum rolling friction takes place of the sliding friction of traditional screw. The transfer efficiency of ball screw will reach more than 90%. The drive torque of transfer unit reduces to 1/3 of sliding screw. This also reduces the heat release largely.
2. High positioning accuracy
Ball screw has low heat release, small temperature increase and with actions of pre-stretch and eliminating axial clearance in the process, which make ball screw have high positioning accuracy and repeating positioning accuracy.
3. Reversibility
Ball screw has not sticky friction like sliding screw. It clears crawl which may exists during transfer. Ball screw can achieve two transfer modes - from rotary motion to linear motion and from linear motion to rotary motion, and transfer momentum.
4. Long service life
Since the strict control of ball screw groove shapes, surface hardness and material selection, the actual life of ball screw is much longer than sliding screw.
5. Good synchronization
Due to smooth running, axial clearance elimination and consistency in manufacture, several sets of ball screw assembly can drive the same unit or several identical parts to obtain the good synchronization.
Miniature Ball screw Application
ALM mini ball screws are used widely in the precision equipment or industrial machinery,defense industry, power tools, medical industry, passenger cars, wire harness cable processing, laser machine, 3D printer, custom automation equipment,linear servo actuator,3C Intelligent Manufacturing, new energy automobile etc.
Shipping:
Sample order:DHL, FeDex, UPS VIP account with discount.So you can get favorable shipping freight.
2. Bulk order:Negotiated professional shipping agent by air or by sea.
Email or call us for a quote now!
