T9.525×10.16
ALM
8479909090

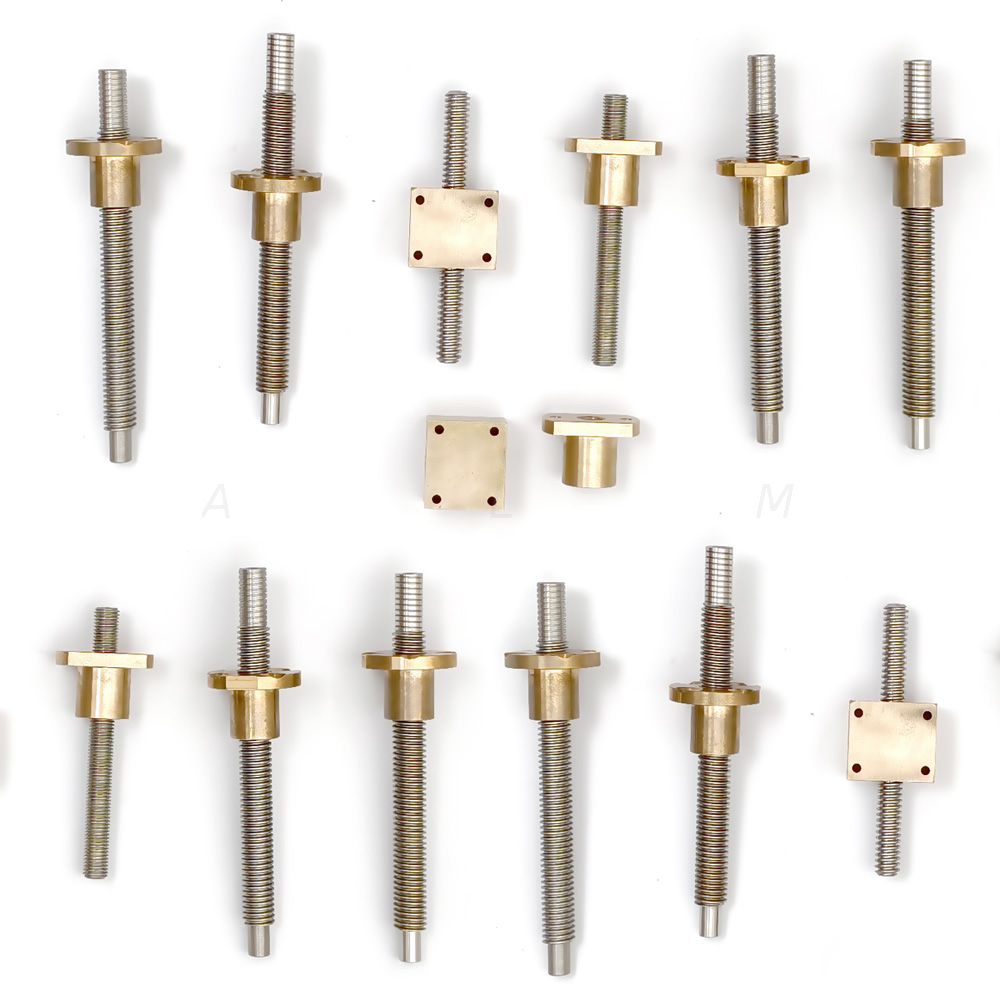

Diameter 9.525mm T9.525×10.16 Lead Screw with Phosphor Bronze Nut
This lead screw diameter is 9.525mm,lead10.16mm,other popular lead ranges from 0.635mm to 25.4mm. The nut is made of phosphor bronze.PEEK,brass,POM nut materials are also available.Lead screw and nut are produced according to your requirement.
Diamter | 9.525mm |
Lead | 10.16mm |
Length | According to your needs |
Shaft end machining | Processing according to your requirements |
Nut shape and dimension | According to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Available screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated,molybdenum disulfide. |
Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
Clearance | 7e,higher precision is available upon request |
Lead accuracy | Can be 0.02mm/100mm |
Contact our sales staff to customize more lead screw details.
Diameter 9.525mm T9.525×10.16 Lead Screw with Phosphor Bronze Nut
This lead screw diameter is 9.525mm,lead10.16mm,other popular lead ranges from 0.635mm to 25.4mm. The nut is made of phosphor bronze.PEEK,brass,POM nut materials are also available.Lead screw and nut are produced according to your requirement.
Diamter | 9.525mm |
Lead | 10.16mm |
Length | According to your needs |
Shaft end machining | Processing according to your requirements |
Nut shape and dimension | According to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Available screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated,molybdenum disulfide. |
Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
Clearance | 7e,higher precision is available upon request |
Lead accuracy | Can be 0.02mm/100mm |
Contact our sales staff to customize more lead screw details.
