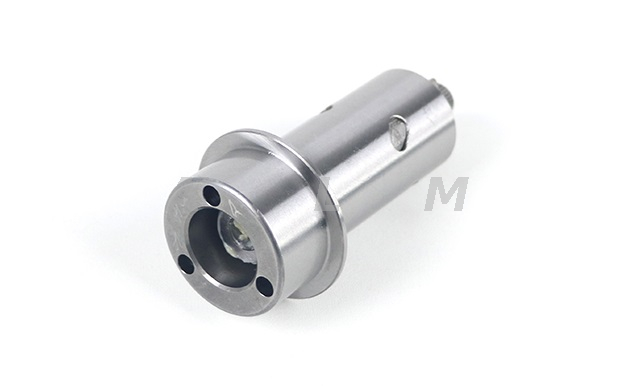

Fast Delivery Custom 16x4 Ballscrew And Nut

Fast Delivery Custom 16x4 Ballscrew And Nut

https://youtu.be/oMLuuuhs-zU

Selection of Nut

(1) Series

When making selection of series, please take demanded accuracy, intended delivery time, dimensions( the outside diameter of screw, ratio of lead/ the outside diameter of screw) preload and etc into consideration.

(2) Circulation type

Selection of circulation type : Please consider the efficiency of screw nut's mounting space.

(3) Number of loop circuits

Performance and service life should be considered when selecting number of loop circuits.

(4) Shape of flanges (FLANGE)

Please make selection based on the available space for the installation of nuts.

(5) Oil hole

Oil hoIes are provided for the precision ball screws, please use them during machine assembling and regular furnishing.

Ball screw catalog

Customized large Ball screw catalog-ALM.pdf

If you have the notion,we have the motion!

Any special customized ballnut is available upon drawing

For more files about ball screws,pls email us.
