SFU1605
ALM
8483401000

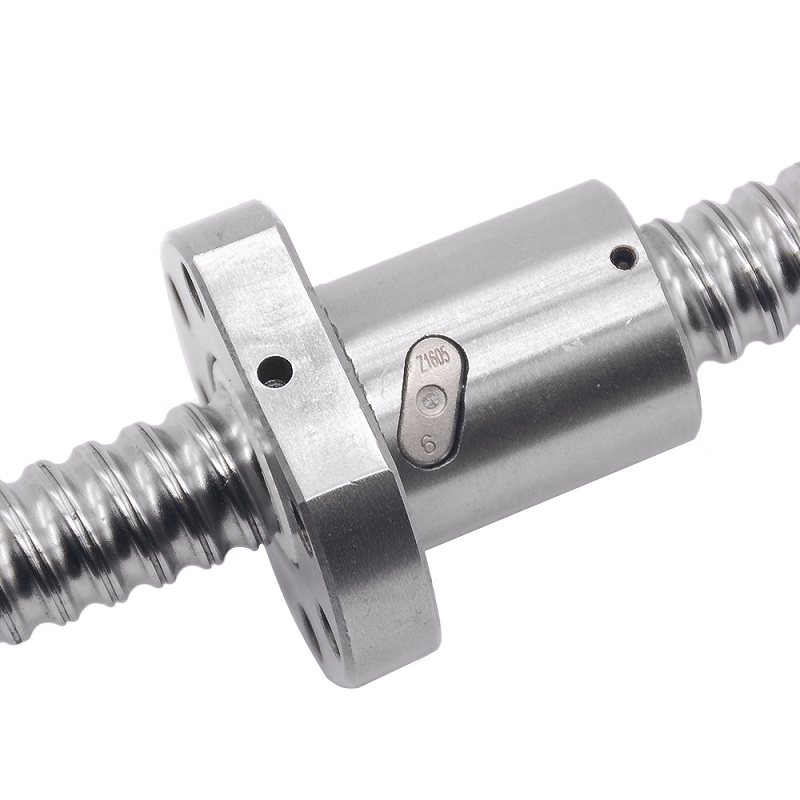

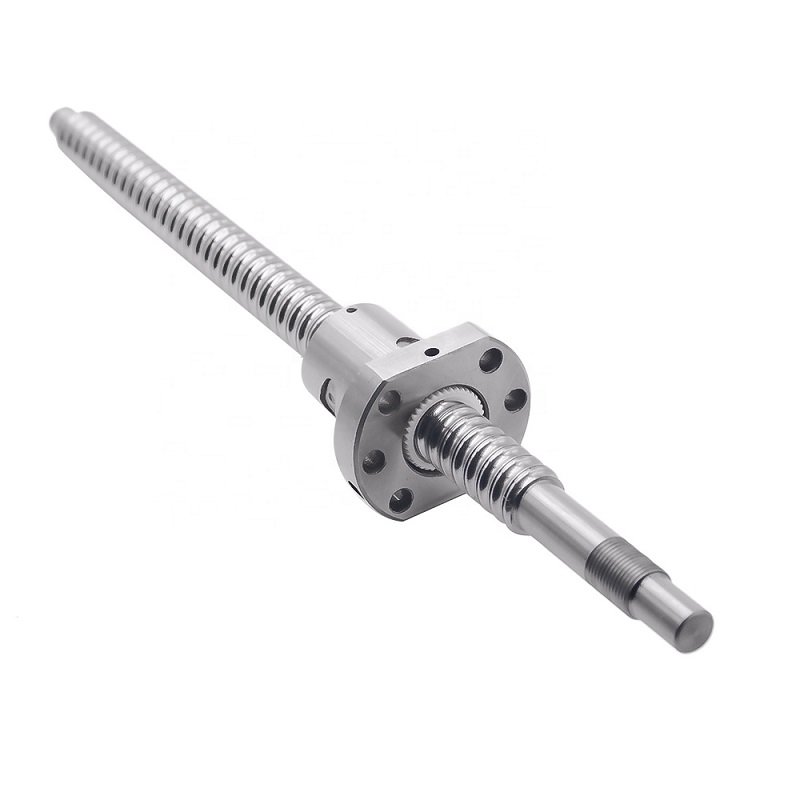

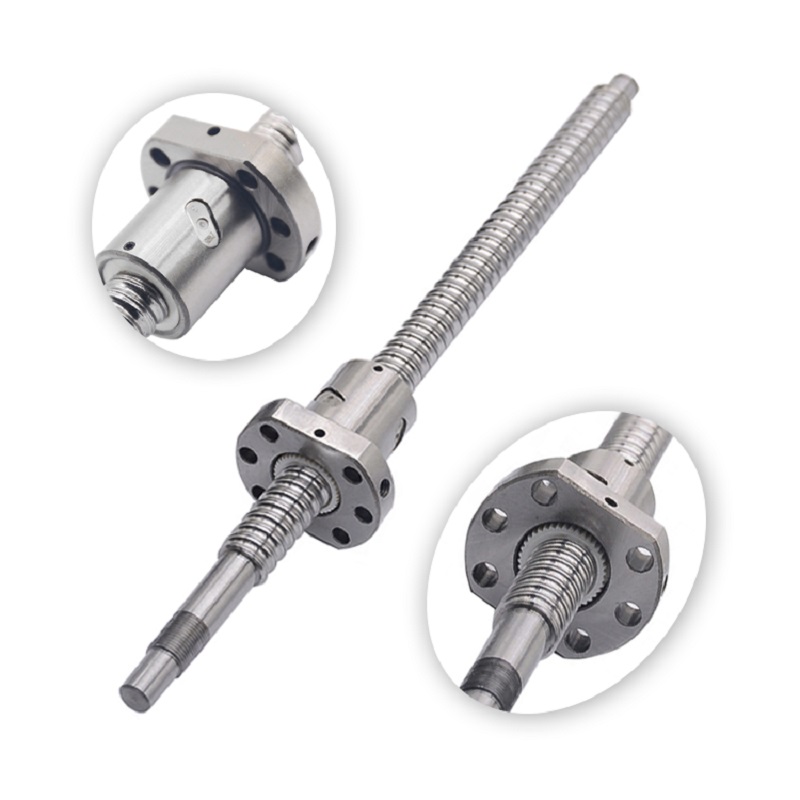

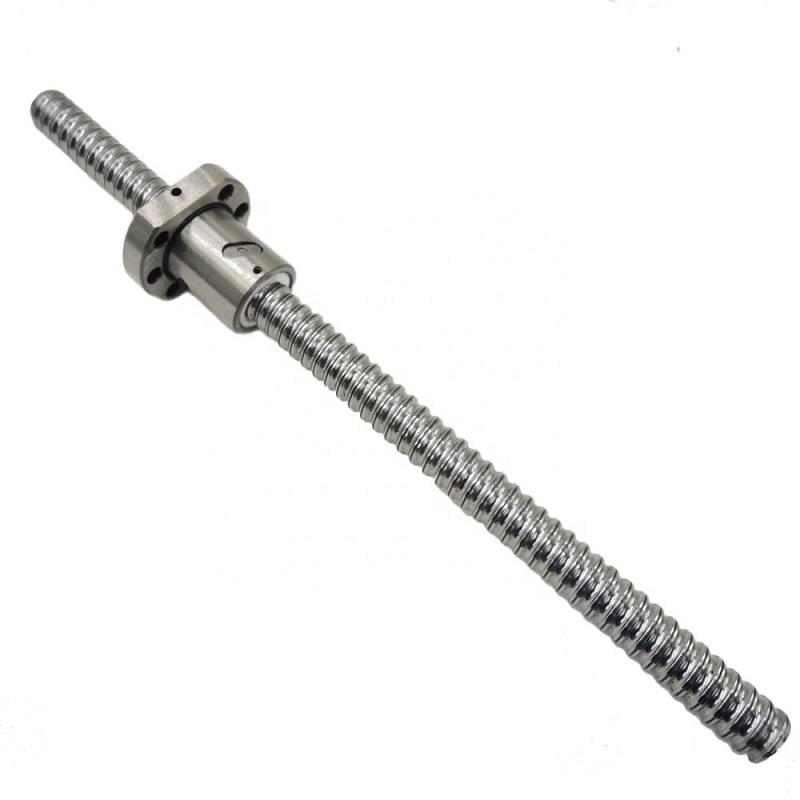

Flanged nut SFU1605 rolled ball screw
Material | Gcr15 or 40Crmo |
Accuracy grade | C7 C10 |
MOQ | 1 piece available for test |
Delivery time | Samples 3-5 days, small order 7~10 days,bulk order 10~20 days. |
Packing | Plastic bag + wooden box or according to customers' demands |
Other models | SFE1616, SFE1632, SFE2020, SFE2040, SFE2525, SFE2550, SFE3232, SFE3264, SFE4040, SFE5050 |

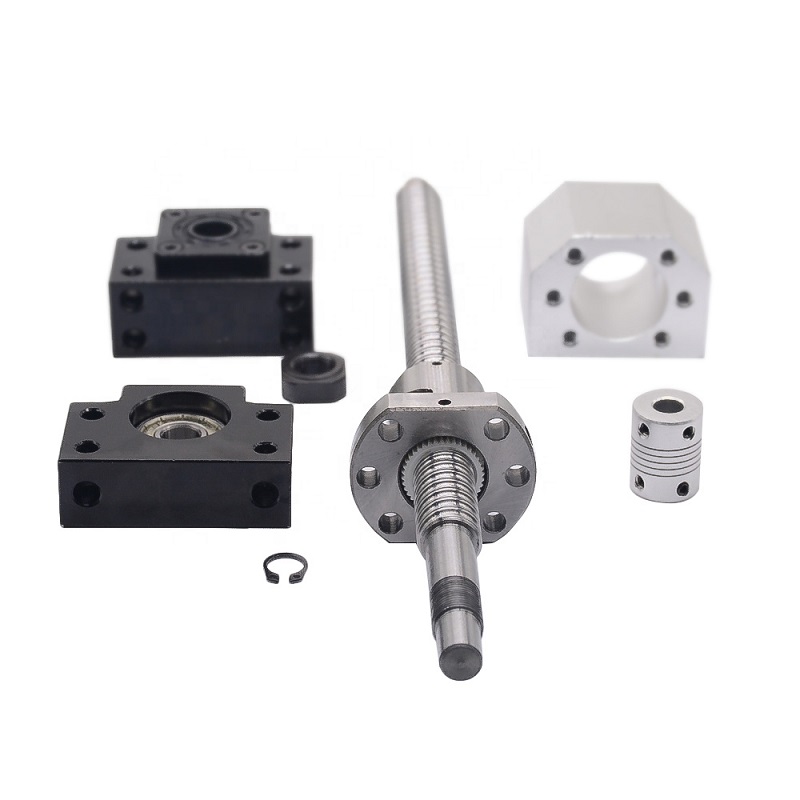

Mating parts | Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available |
What is a ball screw?
Ball screw assembly is consisted of screw, nut and ball. The function is transfer the rotary motion into linear motion or transfer the linear motion into rotary motion. This is further extension and development of slide ball screw. The important significance of development is as same as change of bearing from rolling motion to sliding motion. Because of excellent friction function, ball screw is widely used for all kinds of industrial equipments and precision instrument.
How a ball screw works?
The advantages of ball screw vs. lead screw
1. High transfer efficiency
Balls with free motion in the ball screw assembly transfer the force and motion between screw and nut. This transfer mode replaces the traditional transfer mode that screw shaft and nut effect directly. Therefore the minimum rolling friction takes place of the sliding friction of traditional screw. The transfer efficiency of ball screw will reach more than 90%. The drive torque of transfer unit reduces to 1/3 of sliding screw. This also reduces the heat release largely.
2. High positioning accuracy
Ball screw has low heat release, small temperature increase and with actions of pre-stretch and eliminating axial clearance in the process, which make ball screw have high positioning accuracy and repeating positioning accuracy.
3. Reversibility
Ball screw has not sticky friction like sliding screw. It clears crawl which may exists during transfer. Ball screw can achieve two transfer modes - from rotary motion to linear motion and from linear motion to rotary motion, and transfer momentum.
4. Long service life
Since the strict control of ball screw groove shapes, surface hardness and material selection, the actual life of ball screw is much longer than sliding screw.
5. Good synchronization
Due to smooth running, axial clearance elimination and consistency in manufacture, several sets of ball screw assembly can drive the same unit or several identical parts to obtain the good synchronization.
Ball screw Application
ALM ball screws are used widely in the precision equipment or special industrial machinery.
Such as electronic equipment, food machinery, packing machinery, medical machine, printer, textile machinery, the robot, CNC machine tools cars, and digital three-dimensional coordinate measuring device and so on.
Shipping:
1.Sample order:DHL, FeDex, UPS VIP account with discount.So you can get favorable shipping freight.
2.Bulk order:Negotiated professional shipping agent by air or by sea.
Email or call us for a quote now!
Flanged nut SFU1605 rolled ball screw
Material | Gcr15 or 40Crmo |
Accuracy grade | C7 C10 |
MOQ | 1 piece available for test |
Delivery time | Samples 3-5 days, small order 7~10 days,bulk order 10~20 days. |
Packing | Plastic bag + wooden box or according to customers' demands |
Other models | SFE1616, SFE1632, SFE2020, SFE2040, SFE2525, SFE2550, SFE3232, SFE3264, SFE4040, SFE5050 |
Mating parts | Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available |
What is a ball screw?
Ball screw assembly is consisted of screw, nut and ball. The function is transfer the rotary motion into linear motion or transfer the linear motion into rotary motion. This is further extension and development of slide ball screw. The important significance of development is as same as change of bearing from rolling motion to sliding motion. Because of excellent friction function, ball screw is widely used for all kinds of industrial equipments and precision instrument.
How a ball screw works?
The advantages of ball screw vs. lead screw
1. High transfer efficiency
Balls with free motion in the ball screw assembly transfer the force and motion between screw and nut. This transfer mode replaces the traditional transfer mode that screw shaft and nut effect directly. Therefore the minimum rolling friction takes place of the sliding friction of traditional screw. The transfer efficiency of ball screw will reach more than 90%. The drive torque of transfer unit reduces to 1/3 of sliding screw. This also reduces the heat release largely.
2. High positioning accuracy
Ball screw has low heat release, small temperature increase and with actions of pre-stretch and eliminating axial clearance in the process, which make ball screw have high positioning accuracy and repeating positioning accuracy.
3. Reversibility
Ball screw has not sticky friction like sliding screw. It clears crawl which may exists during transfer. Ball screw can achieve two transfer modes - from rotary motion to linear motion and from linear motion to rotary motion, and transfer momentum.
4. Long service life
Since the strict control of ball screw groove shapes, surface hardness and material selection, the actual life of ball screw is much longer than sliding screw.
5. Good synchronization
Due to smooth running, axial clearance elimination and consistency in manufacture, several sets of ball screw assembly can drive the same unit or several identical parts to obtain the good synchronization.
Ball screw Application
ALM ball screws are used widely in the precision equipment or special industrial machinery.
Such as electronic equipment, food machinery, packing machinery, medical machine, printer, textile machinery, the robot, CNC machine tools cars, and digital three-dimensional coordinate measuring device and so on.
Shipping:
1.Sample order:DHL, FeDex, UPS VIP account with discount.So you can get favorable shipping freight.
2.Bulk order:Negotiated professional shipping agent by air or by sea.
Email or call us for a quote now!
ALM possesses factory occupying 8000 square meters with 120 employees.Among which,more than 30 professional technical engineers in lead screws,ball screws and the mating linear motion parts.
All factory key manufacturing and testing equipments are imported from Japan, like CNC lathe, internal and external high-precision grinder, screw grinding machine, etc. ALM has passed the ISO9001:2015 and TS16949 Quality Management System.
The R&D achievements over many years bring the company more than 25 national patents on lead screw and ball screw design.
