Long Block Miniature Linear Guides MGW9H

Your best choice to replace HIWIN linear guideways
MGW series
MGN series
HGN seres etc
Availability:
Quantity:
  • MGW9H

  • ALM

  • 8483900090

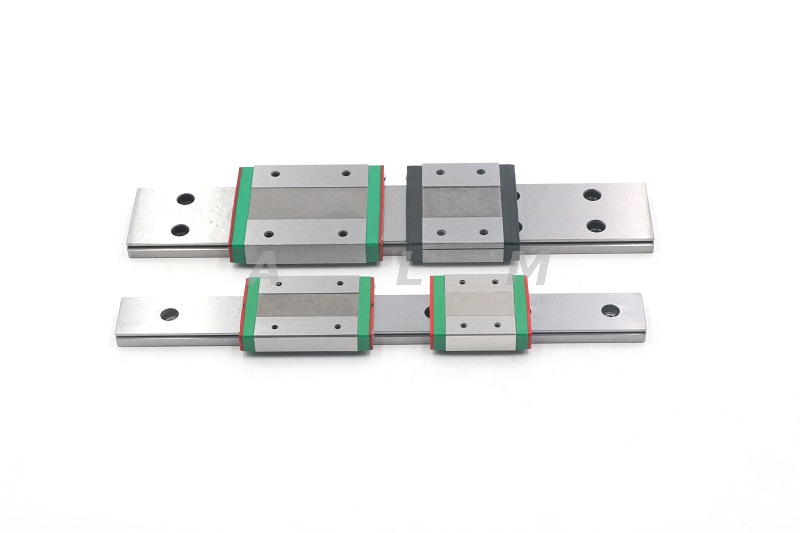

Long Block Miniature Linear Guides MGW9H


Original HIWIN brand is also available

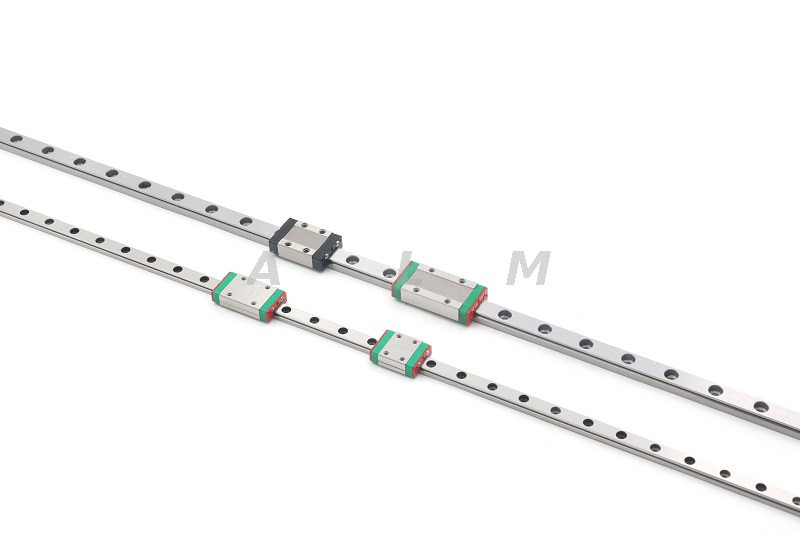

MGW linear guideways

Configuration of MGW Series:

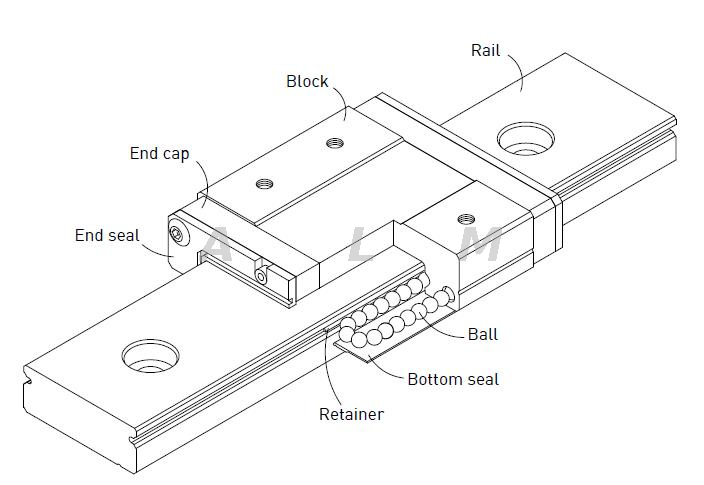

MGW linear guideway structure


Rolling circulation system: Block, rail, end cap and retainer

Lubrication system: The grease nipple is available for MGW15, grease gun can be used for lubricanting.

Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)

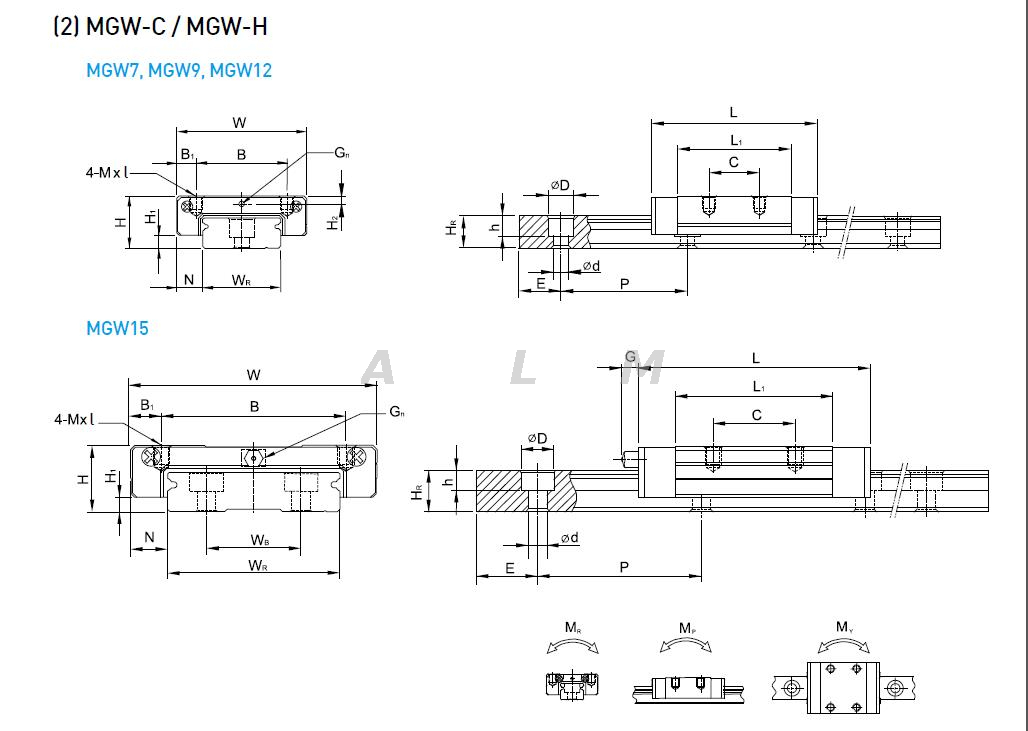

MGW linear guides drawing

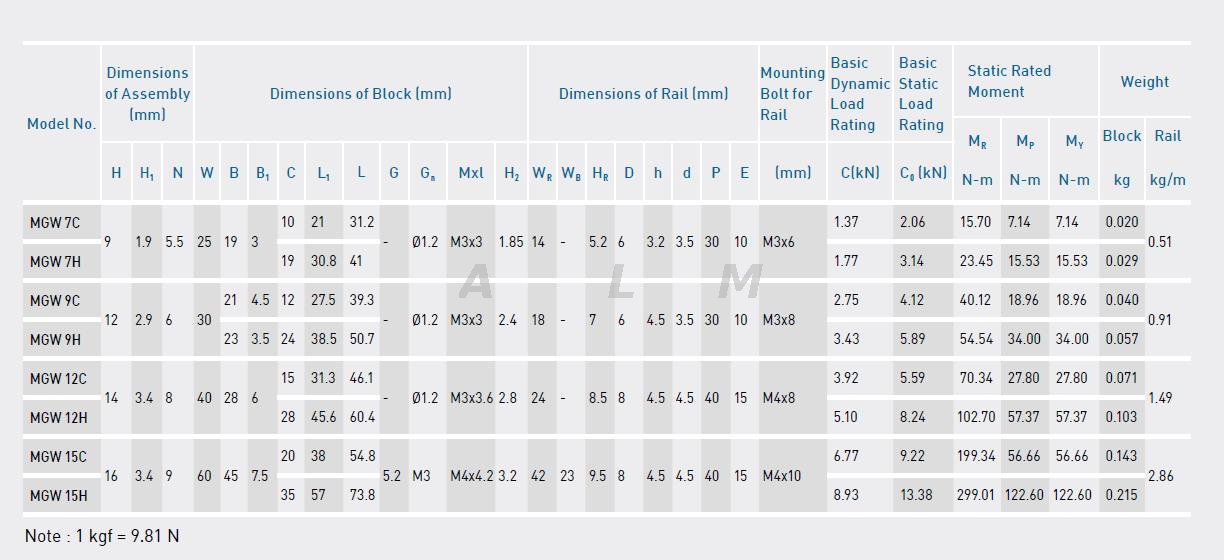

MGW linear guides specification



Download a PDF catalog of ALM linear guideways:



Linear Guideway catalog-ALM.pdf



https://www.autolinearmotion.com/download.html


Need more files and catalog?


Contact us: sales@autolinearmotion.com
