12v DC Motor Industrial Waterproof Linear Actuator

Lead time:5~10days
MOQ:1 piece
  • ALM608

  • ALM

  • 8479909090

The linear actuator is driven by a 12V DC motor,which converts electrical energy from the power supply into rotational motion.This rotational motion is then converted into linear motion through a mechanism such as a lead screw or belt drive system. The linear actuator can extend or retract its shaft to move objects or perform tasks as required.

Linear Actuator

12v DC Motor Industrial Waterproof Linear Actuator

telescopic linear actuator

linear actuator stepper motor

ALM Linear Actuators Technical Parameters

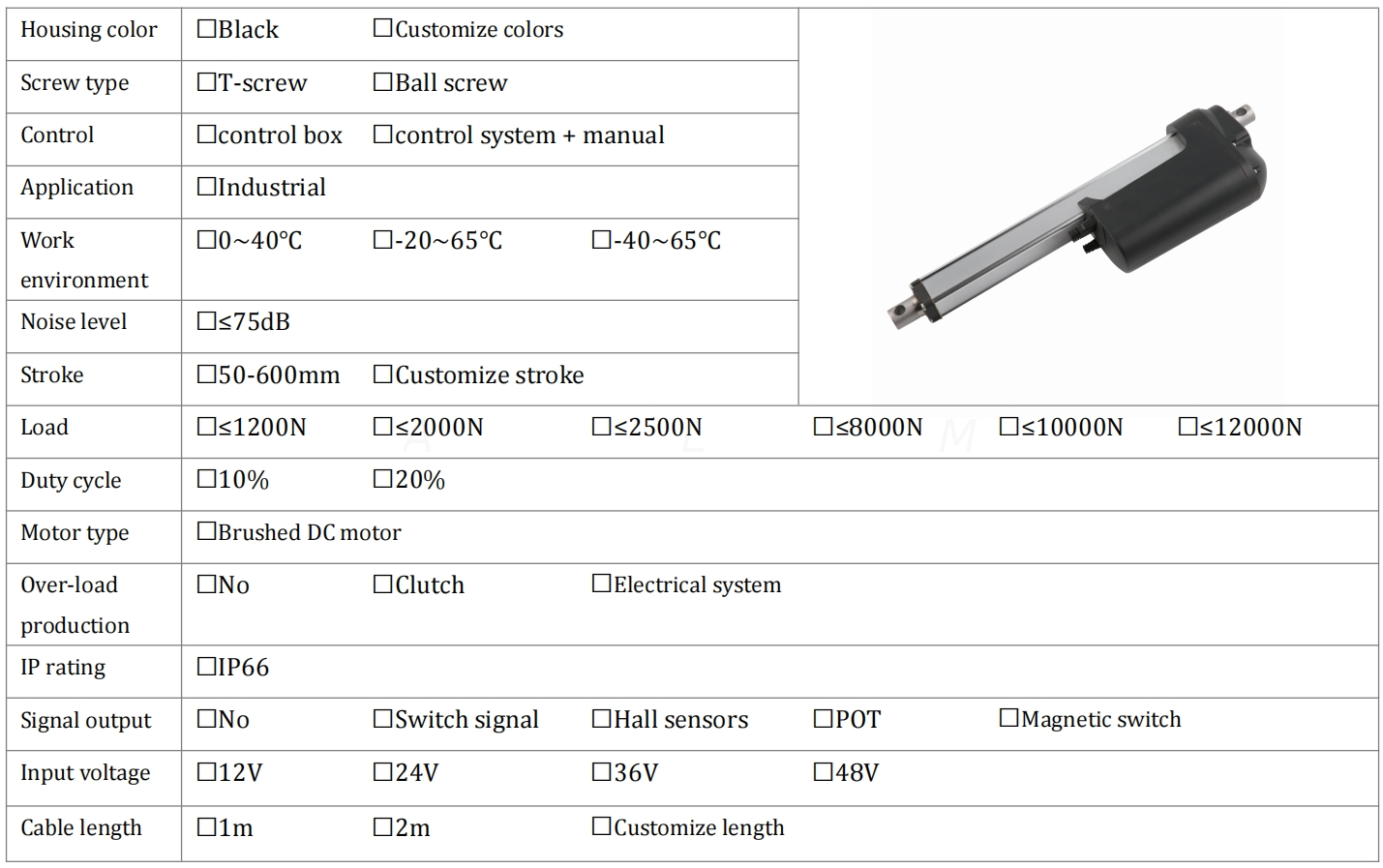

linear actuator ALM608

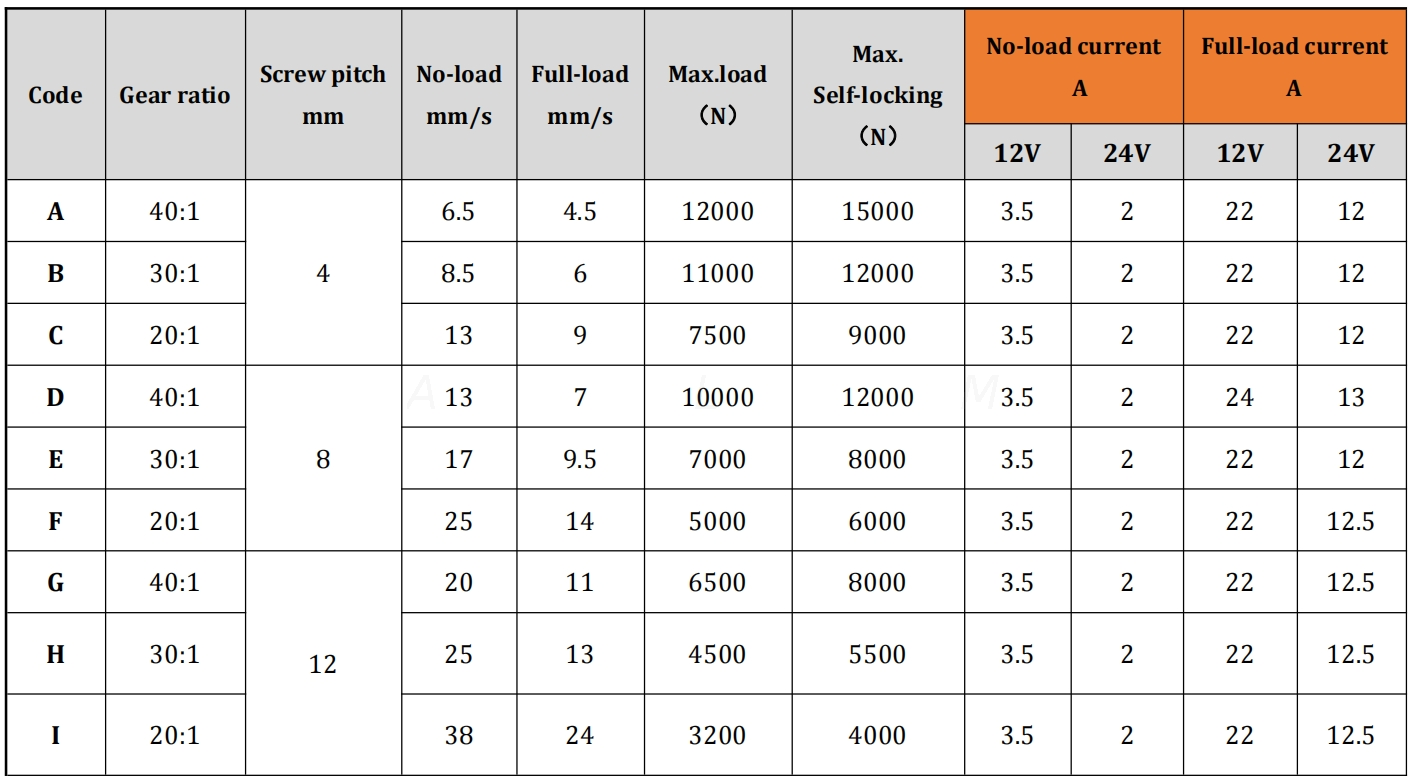

ALM608 technical info

ALM Linear Actuators Details Show

linear actuator position sensor

linear actuator operation

●Various Linear Actuators Are Ready In Stock

various linear actuator 2

various linear actuator 3

various linear actuator 4

various linear actuator

Electric Linear Actuator Starting Check

The electric linear actuator is composed of a drive motor,reduction gear,screw,nut,guide sleeve,push rod,slide seat,spring,shell,turbine,micro control switch,etc.Check the electric linear actuator before starting:

(1)should be placed on a solid foundation to withstand the weight of the electric push rod to eliminate vibration,tighten the foot bolts.

(2)Press the motor tail impeller should have strength,otherwise the coupling pin loose or fall.

(3)check the motor steering,the motor positive and negative rotation control piston rod telescopic,positive direction is not telescopic when it must reverse operation,otherwise long-term overflow,resulting in damage to the pump and motor.

(4)direct transmission,the load point should be in the piston rod pair,so as to avoid uneven force caused by violent vibration and wear.

(5)when the electric push rod is installed,the exhaust hole should face up to the high point to avoid oil leakage and lack of oil absorption.

ALM608-EN version.pdf


Founded in year of 2005,from a small workshop KUNSHAN TIANHE BALL SCREW FACTORY,ALM group has grown fast and has four production workshops now for ball screw,lead screw,linear motor,linear actuator,linear guideways and related CNC machining.Factory area is over 15000 square meters,129 employees.Our factory is equipped with 15 automated production line.Products are 100% inspected before shipping.ALM has obtained ISO9001,IATF16949,CE,RoHS certificate. Over 25 distributors all over the world.

ALM manufactures and supplies high quality linear motion components for customers in fields of aircraft,satellite,medical, Instrumentation,Robotics,Automobile,Electrical & Electronics,Textile,Medical,Food & Beverages,General Industry and so on.With super quality and service,ALM has been widely recognized and highly valued by its high-end and picky customers,and thus remains at the top of their vendor lists.

ALM R&D Team

ALM R&D Team

ALM's office

ALM office

ALM's workshop

ALM workshop

ALM product processing

product processing

ALM inspection equipment

ALM Inspection EquipmentALM process machine

ALM's warehouse

ALM linear guide

Linear Actuator Shipping

Linear Actuators

ALM Exhibition

shanghai munich industry fairExhibition

Customer Visit

ALM customer visit

Patent Certificate for invention and utility model

seidal product certificate

ISO  Certificate


CE Certificate

ALM CE certificate

Excellent HighTech Enterprise

Excellent HighTech Enterprise

Leading Talents Certificate

ALM Leading Talents Certificate

1.Why can ALM be your better option for linear motion components?
●Nearly 20 years of rich manufacturing experience;

●We understand both electrical and mechanical issues. Can recommend good engineering design.

●Quality is guaranteed,We inspect everything, so you won't receive product that doesn't meet specifications. For some parts, we stock for the customer, You never have to wait.
●Easy to pay and can be trusted, We always respond to questions.
●We work on your time zone-You no need work through dinner and at night. Above all, our professional sales and after-service team ensure high efficiency communication to allow you high work efficiency and keep a good mood everyday.

2.When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.

3.About shipping and payment:
Sample order: We have DHL, FedEx, UPS VIP account with discount. So you can get favorable shipping freight.
Bulk order: We have freight forwarder to ship by air, by train or by sea. You can also arrange shipping through your own shipping agent.

LC,T/T,D/P, PayPal, Western Union, Money Gram

4.How is quality ensured?
All our processes strictly adhere to ISO9001:2015 procedures. Combining advanced equipment, from production to delivery, we have strict quality control. Our company has strong technical support and has cultivated a group of managers who are familiar with product quality, good at modern concept of management. Our production concept is “Quality has to be caused, not controlled.”

5.How to custom-made (OEM/ODM)?

If you have a new product drawing or a sample, please send to us, we’ll make our production drawing and customize it as per your requirement. We can also provide our professional advices to make your design more realized and maximize the performance. So,If you didn’t find the ideal product from our website, please email us, your inquiry will get fast response.

6.What's your Delivery Time?

●Standard items: Ready in stock

●Customized items:7-20days

●For urgent case, We can make the delivery ASAP with guaranteed quality.
