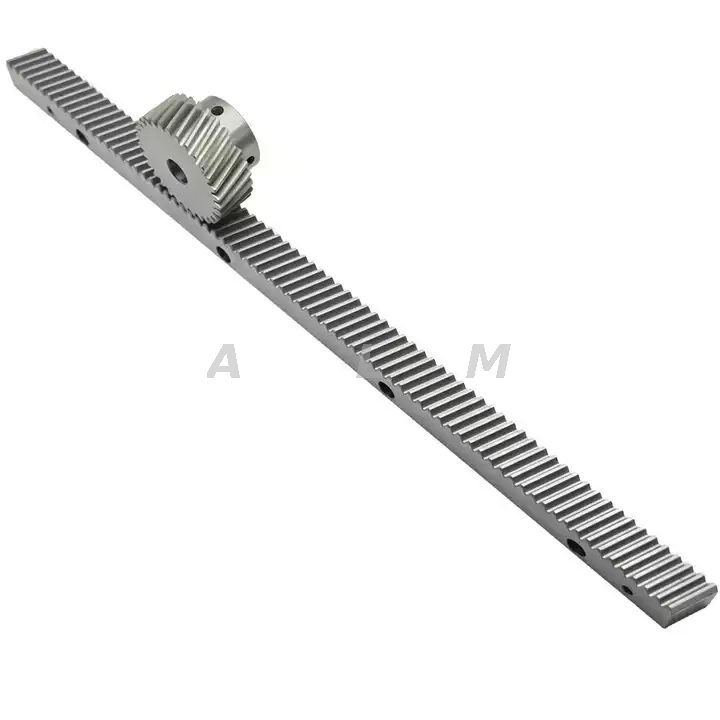

Corrosion Resistance Helical Rack And Pinion for Waterjet Cutters.Rack and pinion drives are commonly used for applications that require stroke lengths beyond the practical limits of ball screws and thrust beyond the belt drive capability.In some applications,pinion and rack systems can also provide lower total inertia than suitable ball screw or belt drive alternatives,which can reduce the overall mass,footprint and cost of the system while improving positioning accuracy in dynamic applications.
| Material | SCM420 |
| Tooth type | Left hand corner |
| Tooth processing | Grinding |
| Heat treatment | Carburizing |
| Precision grade | JIS 2 grade.DIN6h25 |
| Tooth hardness | 55-60HRC |
| MOQ | 1 piece available for test |
| Packing | Carton + wooden box or according to customers' demands |
| Helical Teeth System DLKH Series Rack and Pinion |
| Our Advantages |
Advantages of ALM's rack and pinion systems
The four main advantages of gear rack systems as industrial or automation solutions are:
1.High linear speeds
2.Virtually unlimited lengths of travel
3.High force transmission in a relatively compact package
4.A wide range of accuracy options from very high precision to general purpose use
| Rack and Pinion Application |
Gear rack is mainly used in various mechanical transmission systems,like Woodworking Machine,CNC Router,High-speed Metal Cutting Machine,Pick And Place Robot,Assembly Machine,Material Handling Machine,Packaging Machine,Automation,Machine Tool,Lift Mechanisms,X-Y Axis Table,Guide Echanism,Seventh-Axis Robotic Slide.
Ways to Use Rack and Pinion |
Three basic ways to use rack and pinion
The first and most common is to fixe the rack to the machine structure and use the reaction force on the driven pinion to move a carriage or other platform along the length of the rack-making the pinion and drive move together at high speed in a straight line.
The second way to use a rack and pinion system is to fix the power/torque source,connect the pinion,and then drive the rack back and forth to produce a high-force linear motion,like a linear actuator.
The third way is to reverse the action by driving the rack back and forth with another linear device to create a rotational motion on the pinion.
