1003
ALM
8483900090

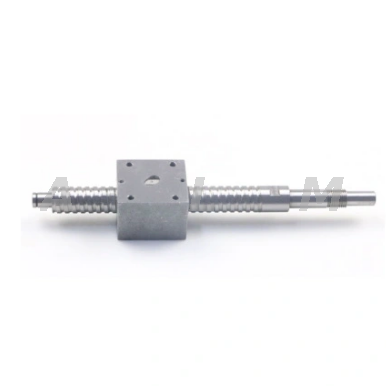

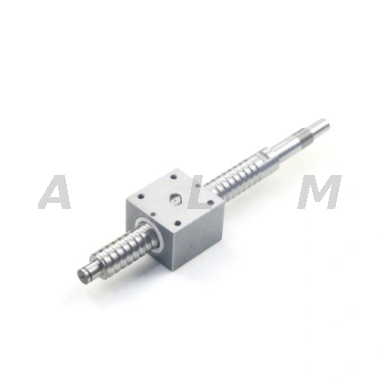

The diameter of the ball screw is 10mm,the pitch of the ball screw is 3mm.Square nut ball screws usually do not require nut seat.Square nut ball screw can be mounted on the workbench directly to save system space.Our ball screws have been exported to 72 countries and are highly appreciated by customers.We provide custom service,ball screws can be manufactured according to customer requirements.
| Material | Gcr15 or 9cr18 |
| Accuracy grade | C3,C5,C7 |
| MOQ | 1 piece available for test |
| Delivery time | 10~30 days. |
| Packing | Carton+Plastic bag + wooden box or according to customers' demands |
| Other models | 0401, 0501, 0502, 0601, 0602, 0801, 0802, 0803, 0804, 0805 1001, 1002, 1003, 1004, 1201, 1202, 1203, 1204, 1205, 1210, 1402, 1403, 1404, 1405, 1602, 1603, 1604, 1605, 1608, 1610, 2002, 2003, 2004, 2005, 2006, 2010, 2020, 2502, 2503, 2504, 2505, 2510, 2512, 2525, 3205, 3206, 3208, 3210, 3212, 3216, 4005, 4008, 4010, 4012, 4016, 5005, 5010, 5012, 5016, 5020, 6310, 6312, 6316, 6320, 8010, 8016, 8020, etc |
| Mating parts | Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available |
Notes:Above is part of standard models,other model or nut type is available upon drawing.For more information,pls contact the salesman.
| Our Advantages |
| Free service | Performance testing |
| Technical solution | |
| Please contact the salesman for details | |
| Custom service | Gcr15,9Cr18 and other customized materials |
| Surface treatment | |
| Custom ballnut and shaft end machining | |
| Assembly | |
| Please contact the salesman for details | |
| Ball Screw Application |
Ball screws are more suitable for applications requiring smooth motion,efficiency,precision and long continuous or high speed motion.The following figure shows the common application of ball screw.
Medical device
Solar pannel
Packging and injection mold
Woodworking machine
Machine centre
| ALM Micro Ball Screw Catalog Download |
Other micro ball screw models are available,kindly pls refer to the catalog below.
ALM micro ball screw C3 C5 C7-V2.pdf
