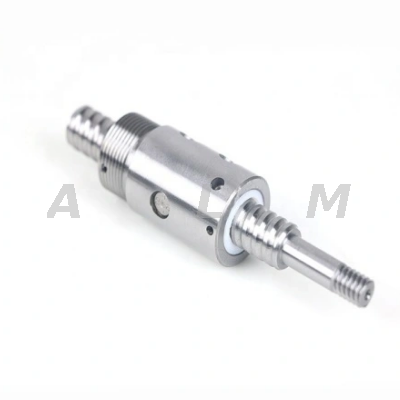

Diameter 12mm Pitch 2.5mm 1202.5 Ball Screw with Cylindrical Ballnut

Excellent service
Quality assurance
Customized service
Fast delivery:10~30days
Availability:
Quantity:
  • 1202.5

  • ALM

  • 8483900090

The miniature ball screws have been optimized to deliver precise positioning,excellent repeatability,and smooth-running and quiet linear actuation.The cylindrical ballnut with thread is highly compact.The ballnut is easy to integrate into any assembly.ALM provides custom service,ball screws can be manufactured according to customer requirements.


 Material  Gcr15(HRC60~62),9Cr18(HRC55~58)
Axial play 0~0.005mm(Can be zero)
Preload P0,P1,P2,P3,P4
Efficiency >90%
 Accuracy grade  C1,C3,C5,C7
Features Clean and smooth,excellent surface finsh
Certificates ISO9001:2015,CE certificate,RoHS and reach compliance
 MOQ

1 piece

 Lead time

10~30 days.

 Packing

Carton+Plastic bag + Wooden box or according to customers' demands

 Mating parts

Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available

Notes:Other model or ball nut type is available upon drawing.


ALM Ball Screw Video Show

Ball Screw Parameter

thread nose ballnut ball screw dimension

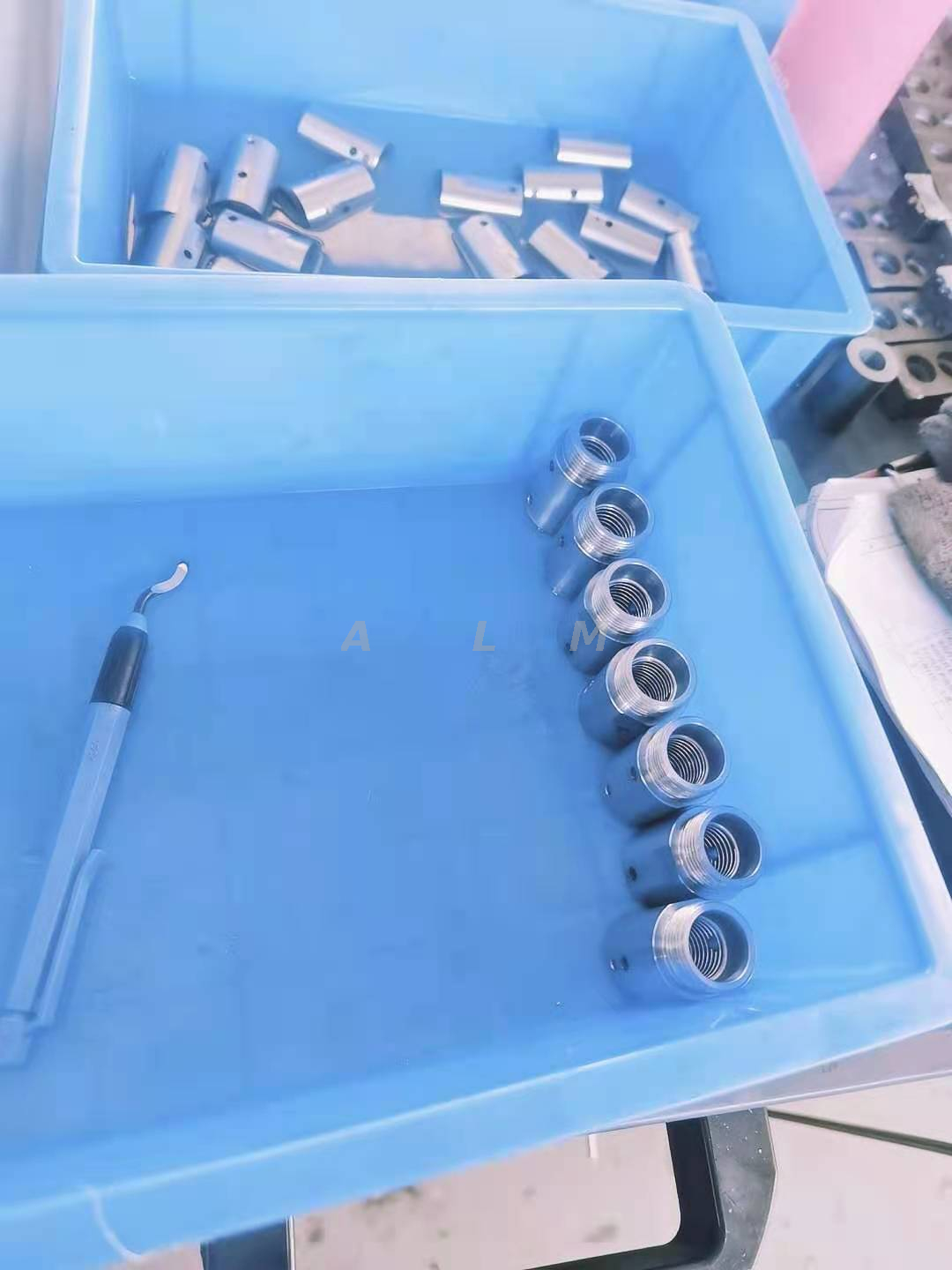

0401 ballnut with threaded nose ball screw


Our Advantages
Free service Performance testing
Technical solution
Please contact the salesman for details

what you can get from ALM

Custom service Gcr15,9Cr18 and other customized materials
Surface treatment
Custom ballnut and shaft end machining
Assembly
Please contact the salesman for details


Ball Screw Application

Ball screws are more suitable for applications requiring smooth motion,efficiency,precision,and long continuous or high speed motion.The following figure shows the common application of ball screw.


medical device

Medical device

solar pannel

Solar pannel

packging and injection mold

Packging and injection mold

woodworking machine

Woodworking machine

滚珠丝杆应用machine centre and factory automation

Machine centre


Ball Screw Shipping

●Sample order:We have DHL,FedEx,UPS VIP account with discount.So you can get favorable shipping freight.

●Bulk order:We have freight forwarder to ship by air,by train or by sea.You can also arrange shipping through your own agent.

              shipping

ALM Micro Ball Screw Catalog Download

Other micro ball screw models are available,kindly please refer to the catalog below.If you don't find the ball screw you need,please email us.We can manufacture the ball screw according to your drawing.


Contact Us - ALM (autolinearmotion.com)



ALM micro ball screw C3 C5 C7-V2.pdf
