Tr25X5
ALM
8483900090

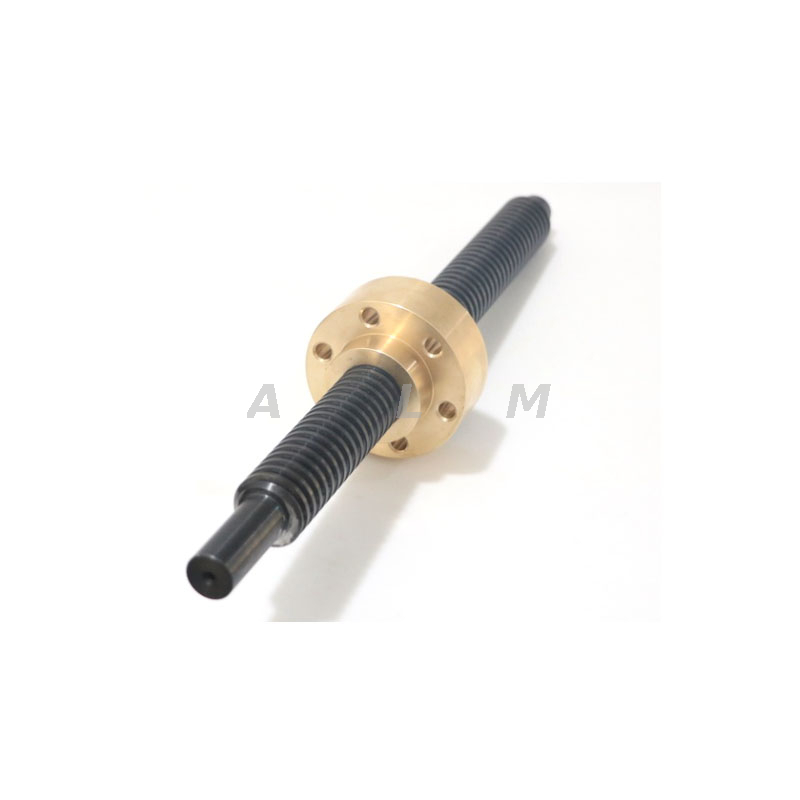

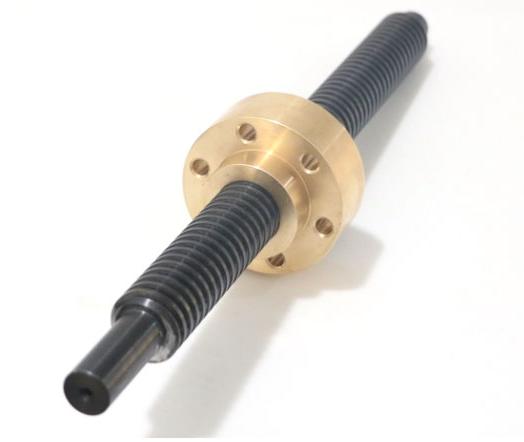

Diameter 25mm Lead 5mm Tr25X5 Trapezoidal Lead Screw.Once you have completed the process of sizing the lead screw,you will know what diameter and lead will provide the required load capacity,speed,and reverse drive torque for the application.But there are hundreds of lead screw designs on the market.Beyond the basics of diameter and lead,how do you choose the specific lead screw assembly that is best for your application?The final choice of lead screw usually comes down to three factors:backlash,material and customization.ALM has been engaged in linear motion component manufacturing for 16 years with outstanding screw product processing technology.
Model no | Tr25X5 |
Parameters | Diameter 25mm,lead 5mm |
Material | SUS304,SUS303 |
Nut material | POM,Brass,Bronze,C45,PTFE |
ALM Quality standard | ISO2901-2016,DIN103,GB/T5796-1-2005 |
Clearance | 7e |
Transmission Screw Thread Types
Thread Types | Features |
Trapezoidal thread | T ISO Trapezoldal Thread:For transmission and posltion adjustment,wldely used In the mechanical Industry. |
Metric thread | M ISO Metric Thread (60°):The most common form of thread used for fastening and precislon transmission. |
ACME thread | English threads can also be used for fastening connectlons,but not for high accuracy |
Round thread | Wlth the same arc thread as ball screw,the transmission is smoother. |
Goethe thread | Gothic double arc thread,drawing the advantages of ball screw,is the new products. |
Reclprocating thread | X Reclprocating thread:A screw that makes the slldle block reclprocate without changing the rotation direction of the spindle. |
Acme or trapezoidal? What’s the difference between lead screw designs?
In power transmission applications,there are two main types of screw drives: screw drives that use a recirculating ball or roller for applications requiring high rigidity,excellent positioning accuracy,and high duty cycle ratio,and screw drives that rely on sliding contact for applications requiring corrosion resistance,self-locking operation,and customizable nut designs.
The second type - screw drivers with sliding contact between the nut and the screw shaft - is called lead screw,Acme screw or trapezoidal screw.Although these names are often used interchangeably,they actually refer to different screw geometrics and sizes.Here is a breakdown of the different types of sliding contact screws and what the terms "lead screw," "Acme screw," and "trapezoidal screw" really mean.
Lead Screws
The most commonly used of the three terms "lead screw" refers only to a powered screw that relies on the sliding motion between the nut and the screw shaft.There are two variations of the lead screw:the screw with square thread and trapezoidal thread.
Lead screw designs for power transmission use almost exclusively trapezoidal threads,which are easier to manufacture and have higher load capacity than screws with square threads.However,trapezoidal threads do have higher friction and are therefore less efficient than the square thread form.
The lead screw can have square or trapezoidal threads.
A power screw is a screw that transmits power by converting rotating motion into linear motion.The lead screw and ball screw are the types of power screws.
ACME Lead Screw
As mentioned above,the lead screw for power transmission uses the trapezoidal thread form.But the trapezoidal screw design can be threaded at 29° or 30° angles,which means that the trapezoidal screw comes in two versions.
The first version(called the Acme screw)has a thread angle of 29° and is manufactured in inch size.Acme screw size is usually specified by the screw shaft diameter and the number of threads per inch or TPI.
A trapezoidal screw form with a thread angle of 29°is called an Acme screw,while a trapezoidal screw form with a thread angle of 30°is called a trapezoidal screw.
Trapezoidal Screws
Trapezoidal screws also use the trapezoidal screw form of lead screw,but the trapezoidal screw thread angle is 30° and manufactured in metric size.The size of the trapezoidal screw is specified by the shaft diameter of the screw and the pitch of the screw thread.Trapezoidal screws are sometimes called "metric screw" or "metric Acme screw".
Acme screws and trapezoidal screws both use a trapezoidal thread form,but they have different thread angles.
Diameter 25mm Lead 5mm Tr25X5 Trapezoidal Lead Screw.Once you have completed the process of sizing the lead screw,you will know what diameter and lead will provide the required load capacity,speed,and reverse drive torque for the application.But there are hundreds of lead screw designs on the market.Beyond the basics of diameter and lead,how do you choose the specific lead screw assembly that is best for your application?The final choice of lead screw usually comes down to three factors:backlash,material and customization.ALM has been engaged in linear motion component manufacturing for 16 years with outstanding screw product processing technology.
Model no | Tr25X5 |
Parameters | Diameter 25mm,lead 5mm |
Material | SUS304,SUS303 |
Nut material | POM,Brass,Bronze,C45,PTFE |
ALM Quality standard | ISO2901-2016,DIN103,GB/T5796-1-2005 |
Clearance | 7e |
Transmission Screw Thread Types
Thread Types | Features |
Trapezoidal thread | T ISO Trapezoldal Thread:For transmission and posltion adjustment,wldely used In the mechanical Industry. |
Metric thread | M ISO Metric Thread (60°):The most common form of thread used for fastening and precislon transmission. |
ACME thread | English threads can also be used for fastening connectlons,but not for high accuracy |
Round thread | Wlth the same arc thread as ball screw,the transmission is smoother. |
Goethe thread | Gothic double arc thread,drawing the advantages of ball screw,is the new products. |
Reclprocating thread | X Reclprocating thread:A screw that makes the slldle block reclprocate without changing the rotation direction of the spindle. |
Acme or trapezoidal? What’s the difference between lead screw designs?
In power transmission applications,there are two main types of screw drives: screw drives that use a recirculating ball or roller for applications requiring high rigidity,excellent positioning accuracy,and high duty cycle ratio,and screw drives that rely on sliding contact for applications requiring corrosion resistance,self-locking operation,and customizable nut designs.
The second type - screw drivers with sliding contact between the nut and the screw shaft - is called lead screw,Acme screw or trapezoidal screw.Although these names are often used interchangeably,they actually refer to different screw geometrics and sizes.Here is a breakdown of the different types of sliding contact screws and what the terms "lead screw," "Acme screw," and "trapezoidal screw" really mean.
Lead Screws
The most commonly used of the three terms "lead screw" refers only to a powered screw that relies on the sliding motion between the nut and the screw shaft.There are two variations of the lead screw:the screw with square thread and trapezoidal thread.
Lead screw designs for power transmission use almost exclusively trapezoidal threads,which are easier to manufacture and have higher load capacity than screws with square threads.However,trapezoidal threads do have higher friction and are therefore less efficient than the square thread form.
The lead screw can have square or trapezoidal threads.
A power screw is a screw that transmits power by converting rotating motion into linear motion.The lead screw and ball screw are the types of power screws.
ACME Lead Screw
As mentioned above,the lead screw for power transmission uses the trapezoidal thread form.But the trapezoidal screw design can be threaded at 29° or 30° angles,which means that the trapezoidal screw comes in two versions.
The first version(called the Acme screw)has a thread angle of 29° and is manufactured in inch size.Acme screw size is usually specified by the screw shaft diameter and the number of threads per inch or TPI.
A trapezoidal screw form with a thread angle of 29°is called an Acme screw,while a trapezoidal screw form with a thread angle of 30°is called a trapezoidal screw.
Trapezoidal Screws
Trapezoidal screws also use the trapezoidal screw form of lead screw,but the trapezoidal screw thread angle is 30° and manufactured in metric size.The size of the trapezoidal screw is specified by the shaft diameter of the screw and the pitch of the screw thread.Trapezoidal screws are sometimes called "metric screw" or "metric Acme screw".
Acme screws and trapezoidal screws both use a trapezoidal thread form,but they have different thread angles.
A broad range of lead nuts are available,other nut type or size can be made upon drawing
When selecting the right nut for an application,there are a few things to keep in mind.Bronze nuts provide superior service at high working loads.They should be well lubricated with a good quality,Extreme Pressure(EP)grease compatible with the operating environment.Plastic nuts can be used without lubrication and are popular for low load applications.

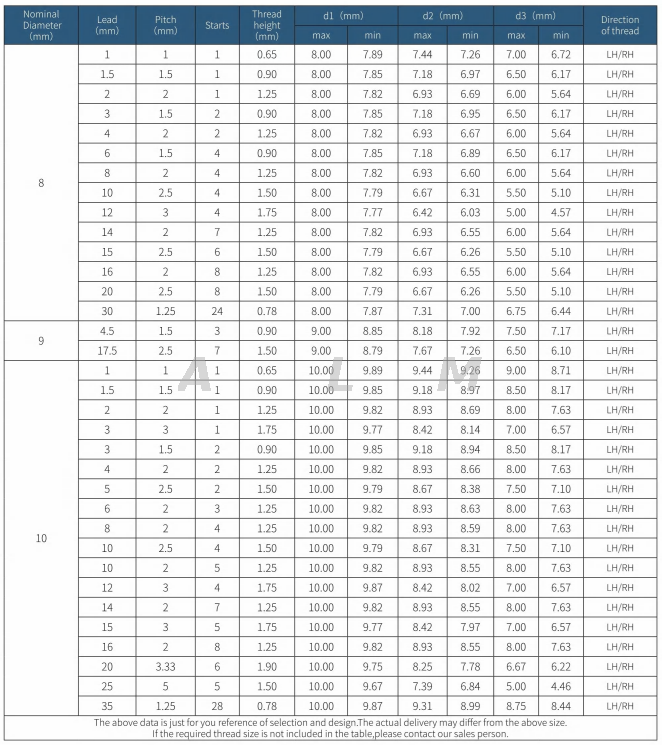

Other ready models are available
A broad range of lead nuts are available,other nut type or size can be made upon drawing
When selecting the right nut for an application,there are a few things to keep in mind.Bronze nuts provide superior service at high working loads.They should be well lubricated with a good quality,Extreme Pressure(EP)grease compatible with the operating environment.Plastic nuts can be used without lubrication and are popular for low load applications.
Other ready models are available
