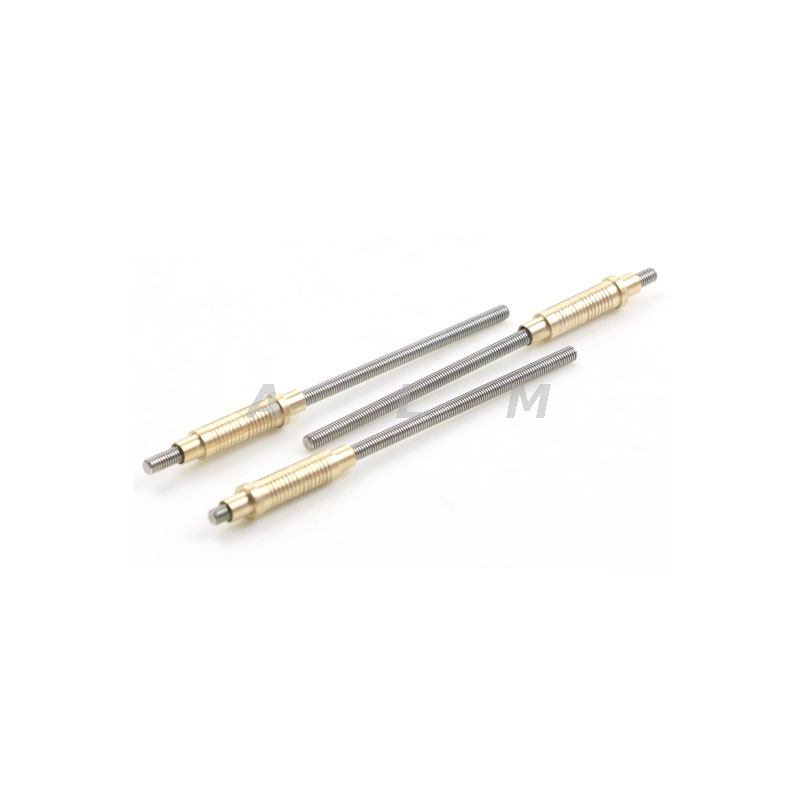

Diameter 4.76mm Lead 0.635mm A4.76x0.635 ACME Lead Screw

Excellent service
Quality assurance
Customized service
Fast delivery:5~10 days
Availability:
Quantity:
  • A4.76x0.635

  • ALM

  • 8483900090

Diameter 4.76mm Lead 0.635mm A4.76x0.635 ACME Lead Screw.The pitch of the Lead Screw is 0.635mm.The lead screw is based on the sliding contact between the nut and the screw,which makes them less efficient than the ball screw.But in vertical applications,this inefficiency has an advantage:it prevents the load from driving backwards when the motor is powered off.This ability to maintain a vertical load without reverse driving is important in applications where the load needs to wait for the top of its stroke while other processes(such as pallet stacking and parts sorting)are performed.In order to use ball screws in these applications,a brake or hold device is required,and a lead screw can usually(depending on its efficiency)hold a vertical load without the use of a brake.


Screw Material ASTM1045,SUS303,SUS304,SS316,SS316L
Nut material Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEK,nylon,POK,Stainless steel,1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type)
Quality standard ISO2901-4,DIN103
Clearance 7e,higher precision is available upon request
Product Parameter


A broad range of lead nuts are available,other nut type or size can be made upon drawing


When selecting the right nut for an application,there are a few things to keep in mind.Bronze nuts provide superior service at high working loads.They should be well lubricated with a good quality,Extreme Pressure(EP)grease compatible with the operating environment.Plastic nuts can be used without lubrication and are popular for low load applications.

ALM lead screw


Other ready models are available

ACME lead screw

China ACME lead screw

Our Advantages

what you can get from ALM

 What’s the difference between lead screw designs?

In power transmission applications,there are two main types of screw drives:screw drives that use a recirculating ball or roller for applications requiring high rigidity,excellent positioning accuracy,and high duty cycle ratio,and screw drives that rely on sliding contact for applications requiring corrosion resistance,self-locking operation,and customizable nut designs.


The second type - screw drivers with sliding contact between the nut and the screw shaft - is called lead screw,Acme screw or trapezoidal screw.Although these names are often used interchangeably,they actually refer to different screw geometrics and sizes.Here is a breakdown of the different types of sliding contact screws and what the terms "lead screw," "Acme screw," and "trapezoidal screw" really mean.



Lead Screws

The most commonly used of the three terms "lead screw" refers only to a powered screw that relies on the sliding motion between the nut and the screw shaft.There are two variations of the lead screw:the screw with square thread and trapezoidal thread.



Lead screw designs for power transmission use almost exclusively trapezoidal threads,which are easier to manufacture and have higher load capacity than screws with square threads.However,trapezoidal threads do have higher friction and are therefore less efficient than the square thread form.

square or trapezoidal threads lead screw

The lead screw can have square or trapezoidal threads.



A power screw is a screw that transmits power by converting rotating motion into linear motion.The lead screw and ball screw are the types of power screws.


ACME Screws

As mentioned above,the lead screw for power transmission uses the trapezoidal thread form.But the trapezoidal screw design can be threaded at 29° or 30° angles,which means that the trapezoidal screw comes in two versions.


The first version(called the Acme screw)has a thread angle of 29° and is manufactured in inch size.Acme screw size is usually specified by the screw shaft diameter and the number of threads per inch or TPI.


 ACME lead screw

Trapezoidal screw form with thread angle of 29°is called Acme screw,while trapezoidal screw form with thread angle of 30°is called trapezoidal screw.



Trapezoidal Screws

Trapezoidal screws also use the trapezoidal screw form of lead screw,but the trapezoidal screw thread angle is 30° and manufactured in metric size.The size of the trapezoidal screw is specified by the shaft diameter of the screw and the pitch of the screw thread.Trapezoidal screws are sometimes called "metric screw" or "metric Acme screw".

trapezoidal lead screws

Acme screws and trapezoidal screws both use a trapezoidal thread form,but they have different thread angles.
