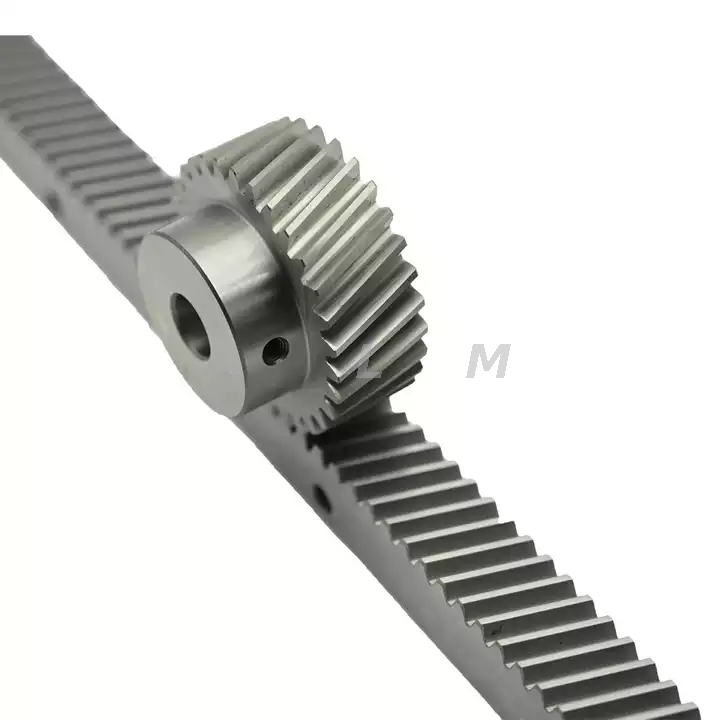

High Precision Helical Rack And Pinion for Assembly Machine

Excellent service
Quality assurance
Customized service
Fast delivery
  • DLKH03-20-32M

  • ALM

  • 8483900090

High Precision Helical Rack And Pinion for Assembly Machine.Rack and pinion systems are excellent electromechanical devices that are particularly suited for achieving linear or rotational motion solutions that most other technologies are unable to achieve.One of the highlighted main advantages of rack and pinion is it covers distance quickly.That offers a lot of flexibility in configuring the motion profile.

Material SCM420
Tooth type Left hand corner
Tooth processing Grinding
Heat treatment Carburizing
Precision grade JIS 2 grade.DIN6h25
Tooth hardness   55-60HRC

1 piece available for test


Carton + wooden box or according to customers' demands

Helical Teeth System DLKH Series Rack and Pinion

gear and rack dimension

pinion and rackrack gear

Our Advantages

Advantages of ALM's rack and pinion systems

The four main advantages of gear rack systems as industrial or automation solutions are:

1.High linear speeds
2.Virtually unlimited lengths of travel
3.High force transmission in a relatively compact package
4.A wide range of accuracy options from very high precision to general purpose use

what you can get from ALM

Rack and Pinion Application

Gear rack application

Gear rack is mainly used in various mechanical transmission systems,like Woodworking Machine,CNC Router,High-speed Metal Cutting Machine,Pick And Place Robot,Assembly Machine,Material Handling Machine,Packaging Machine,Automation,Machine Tool,Lift Mechanisms,X-Y Axis Table,Guide Echanism,Seventh-Axis Robotic Slide.

rack and pinion application

Ways to Use Rack and Pinion

Three basic ways to use rack and pinion

The first and most common is to fixe the rack to the machine structure and use the reaction force on the driven pinion to move a carriage or other platform along the length of the rack-making the pinion and drive move together at high speed in a straight line.

The second way to use a rack and pinion system is to fix the power/torque source,connect the pinion,and then drive the rack back and forth to produce a high-force linear motion,like a linear actuator.

The third way is to reverse the action by driving the rack back and forth with another linear device to create a rotational motion on the pinion.
