Linear Block HGW15CA HGW20CA Linear Guide HGR15 HGR20

Excellent service
Quality assurance
Customized service
Fast delivery:5~15days

  • ALM

  • 8483401000

The linear block HGW15CA and HGW20CA are renowned for their high load-bearing capacity and rigidity.These linear blocks are designed with precision to ensure smooth motion and minimal friction.The incorporation of ball bearings within the block allows for effortless movement along the linear guide rail.The HGW15CA and HGW20CA linear blocks are widely used in various industrial applications, including robotics,machine tools, and automation systems.

 Material  Bearing steel,S55C
 Accuracy grade  C,H,P,SP,UP
Certificates ISO9001:2015,CE certificate,RoHS and reach compliance

 1 piece

 Lead time

 5~15 days

 Packing  Carton+Plastic bag + Wooden box or according to customers' demands

High Precision,Large Load Capacity,Low Noise,High Rigidity

ALM Linear Guideway Show

Our linear guides are perfect for projects that demand precise linear motion.They boast a compact and lightweight design, which means they're effortless to install and maintain.

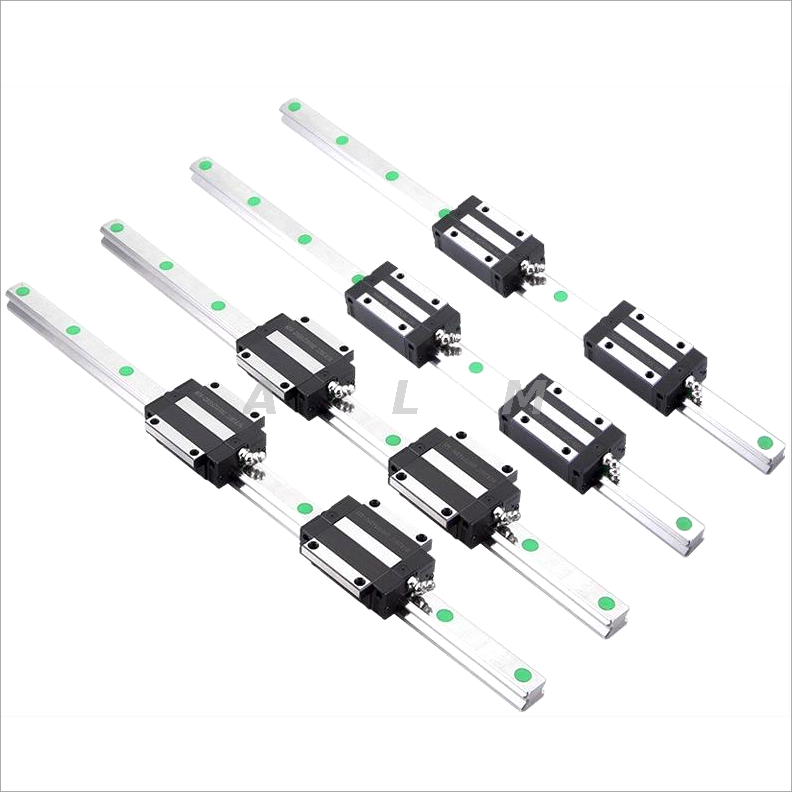

linear guideway

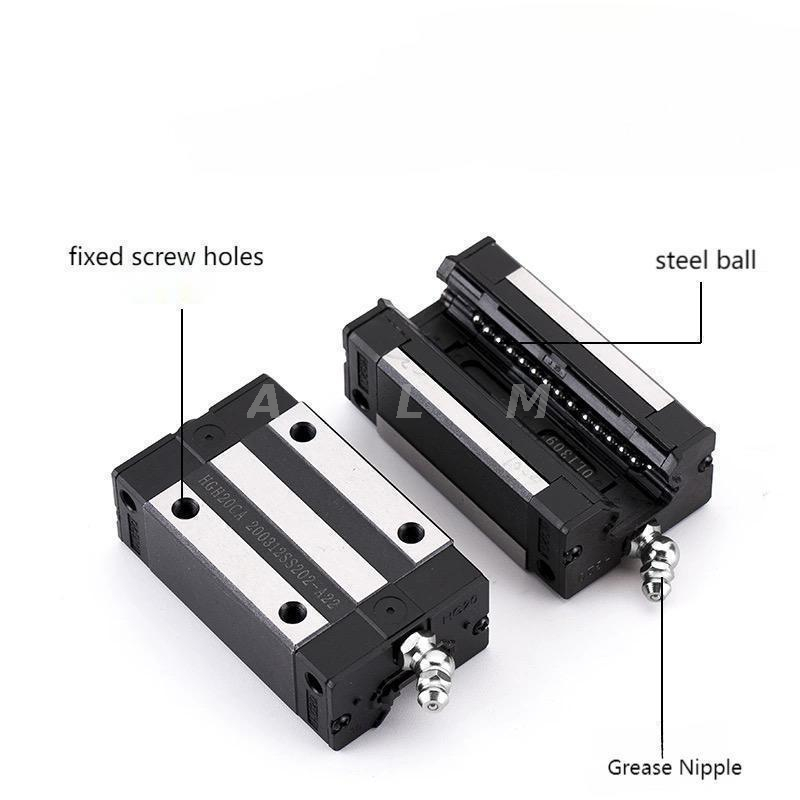

Linear guide block structure

Linear guide slider details

●ALM Linear Guide Rail Dimension

HGW linear guide dimension

Features And Benefits Of HG Series Linear Guides

-High Load-Bearing Capacity:The Linear Block HGW15CA and HGW20CA,along with the HGR15 and HGR20 linear guides, can handle heavy loads, making them ideal for demanding applications.

-Rigidity:These linear guides offer excellent rigidity, ensuring stability and accuracy in motion.

-Smooth and Precise Motion: The incorporation of ball bearings in the linear blocks and the design of the guide rails enable smooth and precise linear motion.

-Low Friction:The linear guides are engineered to minimize friction, reducing wear and tear and extending the lifespan of the equipment.

-Durability:The Linear Block HGW15CA, HGW20CA, HGR15, and HGR20 linear guides are made from high-quality materials,ensuring long-lasting performance even in harsh operating conditions.

-Easy Installation:These linear guides are designed for easy installation, allowing for quick and efficient setup.


Linear Guideway catalog-ALM-210725 -V2.pdf
